13000A IGBT Inverter Spot Welder for Auto Repair with Cl Gun

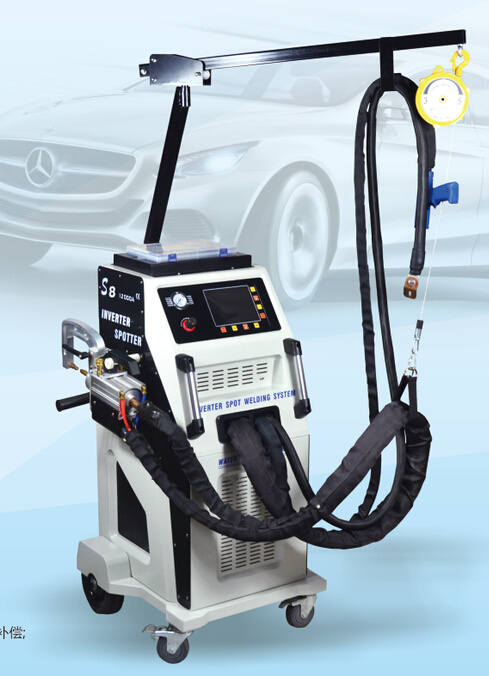

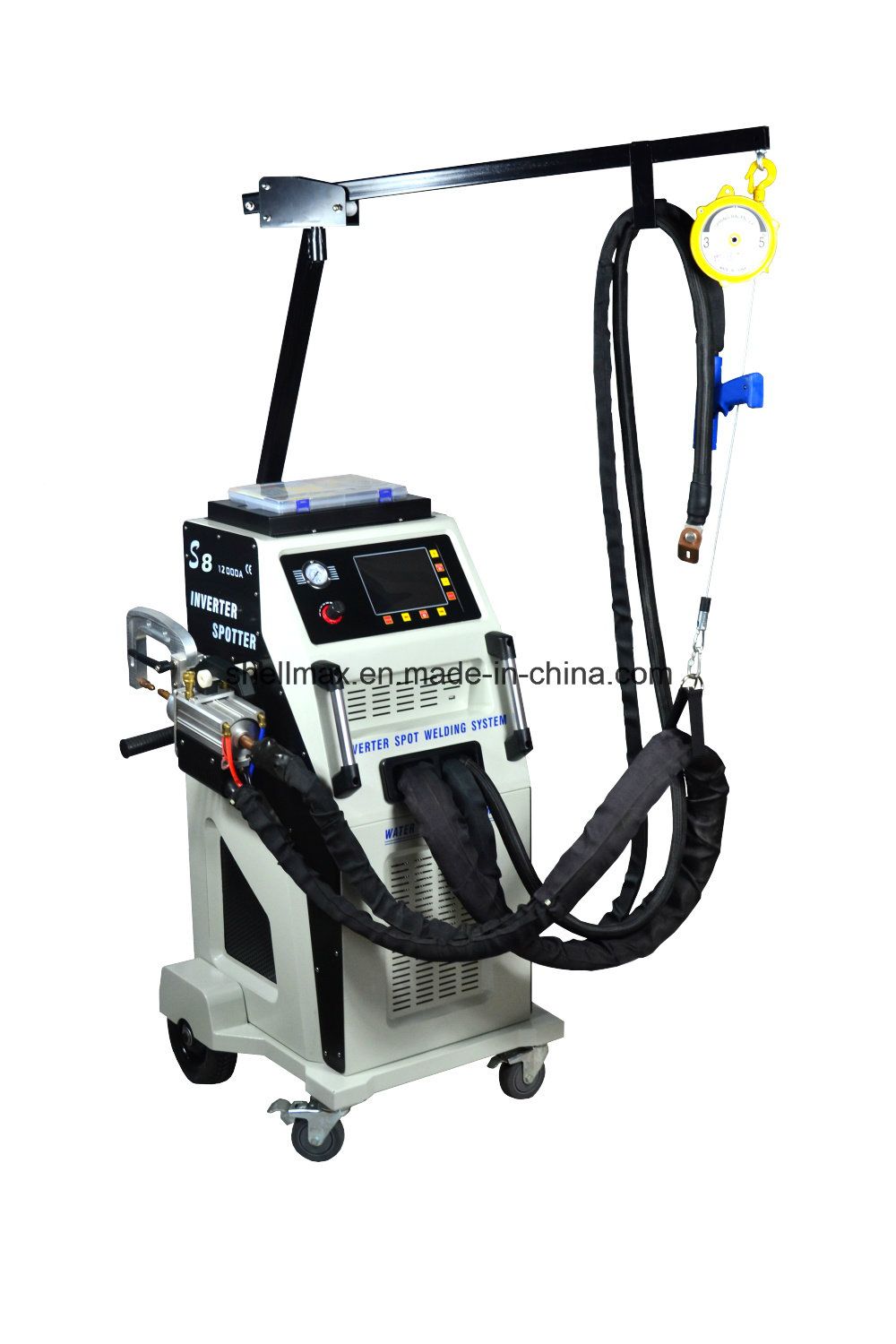

Name: 13000A IGBT Inverter Spot Welder for Auto Repair with Cl Gun
Brand: ibuyautoparts.com
SKU: 703213472
Availability: InStock
Rating: 4.9 (36 reviews)

Price:	US $ 8000-15000/Piece
Trade Terms:	FOB,CFR,EXW
Min Order:	1/Piece
Pay Type:	L/C,T/T

Contact Supplier

Showroom Product Company Profile

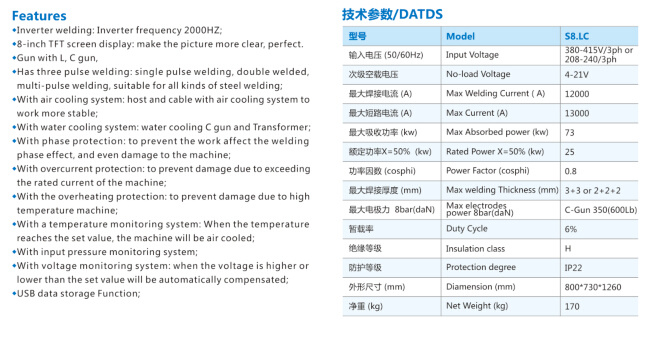

13000A IGBT Inverter Spot welding system for auto body repair

.Inverter welding: Inverter frequency 2000HZ;
. 8-inch TFT screen display: make the picture more clear,perfect;
.Gun with L,C gun: meet a variety of occasions;
. Has three pulse welding: single pulse welding,double welded,multi-pulse welding, suitable
for all kinds of steel welding;
. With air cooling system: host and cable with air cooling system to work more stable;
.With water cooling system: water cooling C gun and Transformer;
.With phase protection: to prevent the work affect the welding phase effect, and even damage
to the machine;
. With overcurrent protection: to prevent damage due to exceeding the rated current of the
machine;
.With the overheating protection: to prevent damage due to high temperature machine;
. With a temperature monitoring system: When the temperature reaches the set value, the
machine will be air cooled;
.With input pressure monitoring system;
.With voltage monitoring system: when the voltage is higher or lower than the set value will be
automatically compensated;
. USB data storage Function;

Model	S8.LC
Input Voltage	380-415V/3ph or 208-240/3ph
No-load Voltage	4-21V
Max Welding Current ( A)	12000
Max Current (A)	13000
Max Absorbed power (kw)	73
Rated Power X=50% (kw)	25
Power Factor (cosphi)	0.8
Max welding Thickness (mm)	4+4 or 2+2+2
Max electrodes power 8bar(daN)	C-Gun 350(600Lb),
Duty Cycle	6%
Insulation class	H
Protection degree	IP22
Diamension (mm)	*8007301260*
Net Weight (kg)	185

Prod Model:	S8 LC GUN New Style
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Dent Puller:	Body Repair System
Certification:	RoHS
Update Method:	by Internet
Type:	Spot Welder

Quality. Honesty. Responsibility Since 2001

Everyone at Shellmax follows this mission every day: Customer satisfaction through quality products, continuous improvement, and a safe operation that's always up and running.

"Shellmax" is specialized in all kind of Welding Machines, Garage Equipments, Electric Motors, Generators, Consumables and Spare parts and more products. All of "Shellmax" products comply with ISO9002, TUV/GS, CE, UL, CCE ATEX standards. "Shellmax" can manufacture & supply the goods according the customers request around the world.

In order to keep the competitiveness, "Shellmax" research team are always paying close attention to the market change, and accordingly develop the correspondent new items; Management team are carrying out strict quality control through the whole process during production; Logistics team are actively cooperating with shipping agency to help customers shorten the transportation period and save the shipping cost.

In order to gratify customers' requirements, "Shellmax" have established a strict quality control system. Comprehensive measures are implemented from initial material inspection to final checking before packing, warehousing and delivery

"Shellmax" is located at Taizhou City, Zhejiang Province, China. With very convenient transportation, about 160km far from NINGBO and about 400km far from Shanghai sea port, and it is only about 20 min far from HUANGYAN airport.

"SHELLMAX" company insists on equality and mutual benefit, honesty and credit it what we live on, we are honor to set up long term cooperation with all our clients around the world.
