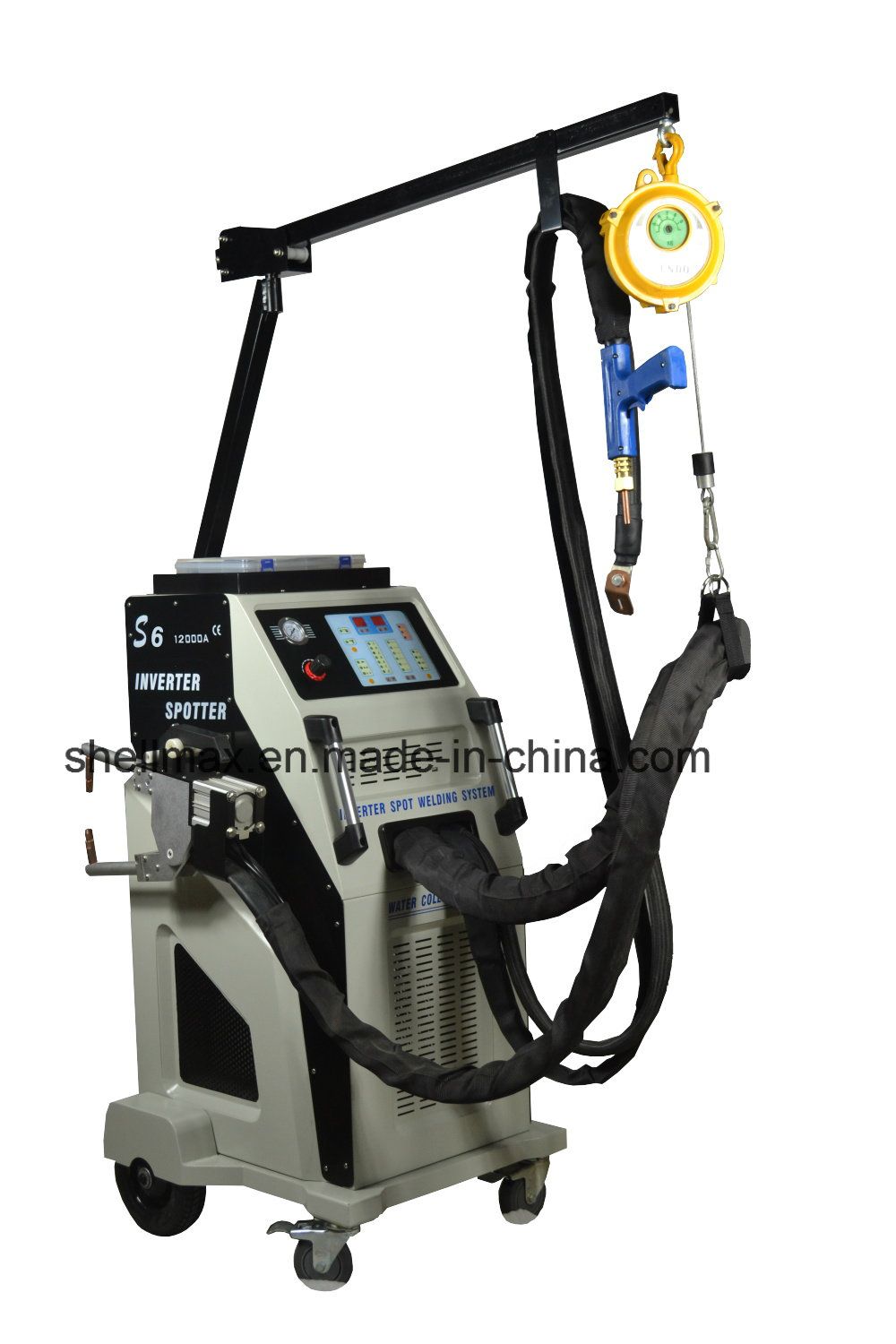

13000A IGBT Inverter Spot Welder for Auto Repair S6-Lx Gun
Price: |
US $ 5000-10000/Piece |
Trade Terms: |
FOB,CFR,EXW |
Min Order: |
1/Piece |
Pay Type: |
L/C,T/T |

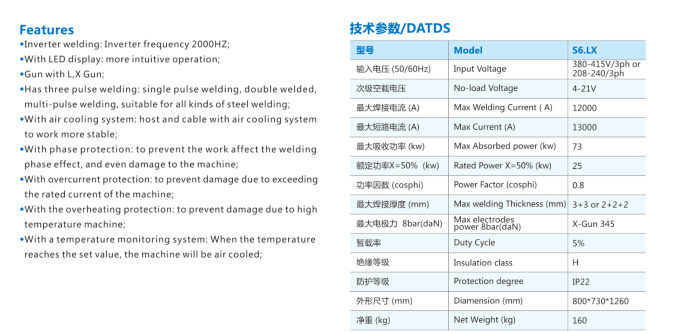

13000A IGBT Inverter Spot welding system for auto body repair .Inverter welding: Inverter frequency 2000HZ;
. 8-inch TFT screen display: make the picture more clear,perfect;
.Gun with L,X Gun: meet a variety of occasions;
. Has three pulse welding: single pulse welding,double welded,multi-pulse welding, suitable
for all kinds of steel welding;
. With air cooling system: host and cable with air cooling system to work more stable;
.With water cooling system: water cooling C gun and Transformer;
.With phase protection: to prevent the work affect the welding phase effect, and even damage
to the machine;
. With overcurrent protection: to prevent damage due to exceeding the rated current of the
machine;
.With the overheating protection: to prevent damage due to high temperature machine;
. With a temperature monitoring system: When the temperature reaches the set value, the
machine will be air cooled;
.With input pressure monitoring system;
.With voltage monitoring system: when the voltage is higher or lower than the set value will be
automatically compensated;
. USB data storage Function;
Model | S6.LX |
Input Voltage | 380-415V/3ph or 208-240/3ph |
No-load Voltage | 4-21V |
Max Welding Current ( A) | 12000 |
Max Current (A) | 13000 |
Max Absorbed power (kw) | 73 |
Rated Power X=50% (kw) | 25 |
Power Factor (cosphi) | 0.8 |
Max welding Thickness (mm) | 4+4 or 2+2+2 |
Max electrodes power 8bar(daN) | X-Gun 345; |
Duty Cycle | 5% |
Insulation class | H |
Protection degree | IP22 |
Diamension (mm) | 800*730*1260 |
Net Weight (kg) | 185 |
Prod Model: |
S6-LX New style |
Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Dent Puller: |
Body Repair System |
Certification: |
RoHS |
Update Method: |
by Internet |
Type: |
Spot Welder |
