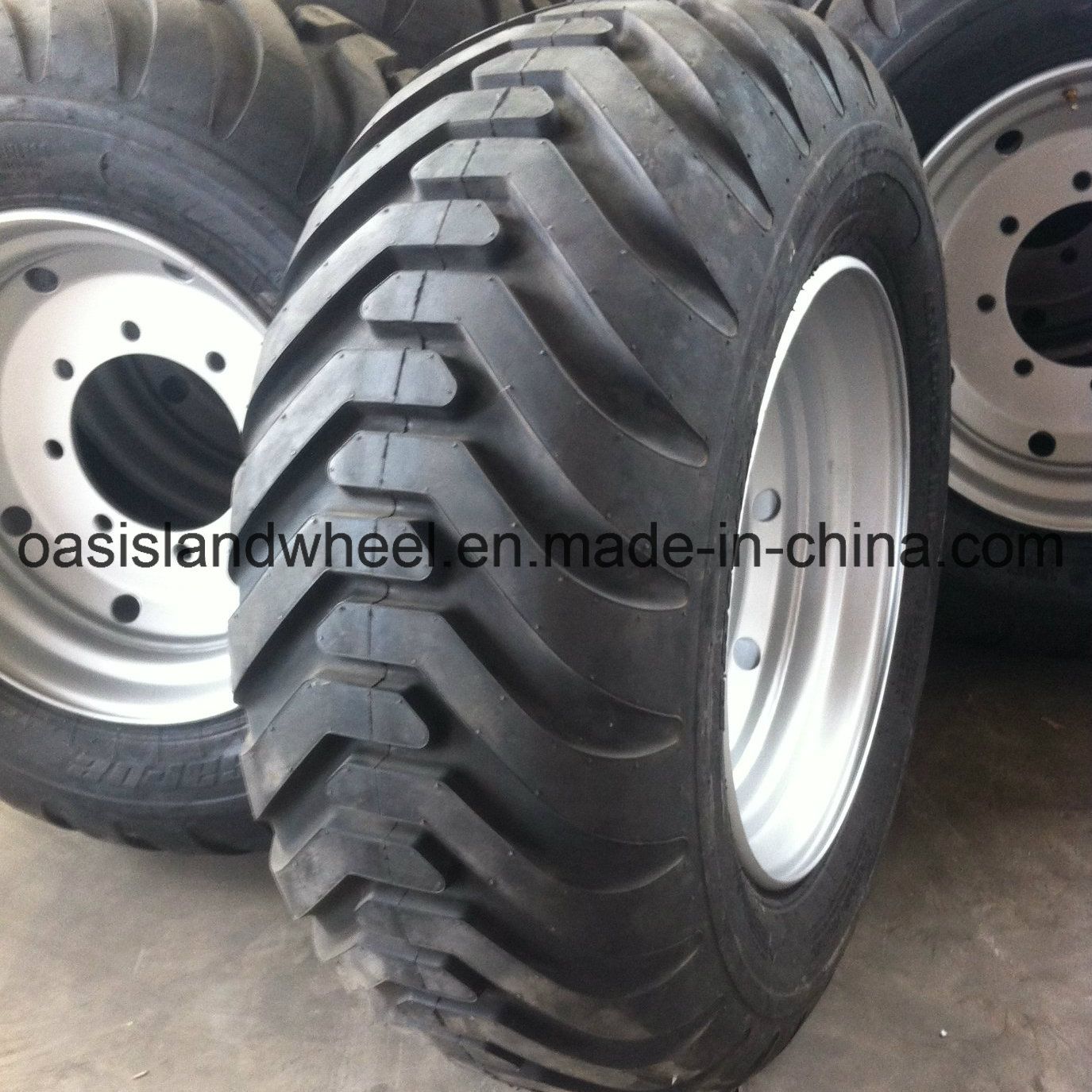

Flotation Tyre, Agricultural Farm Implement Tyre (400/60-15.5, 400/60-22.5) with Rim
| Price: |
US $ 200-500/Piece |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
20/Piece |
| Pay Type: |
L/C,T/T,D/P,Western Union,Paypal |
Flotation Tyre, Agricultural Farm Implement Tyre (400/60-15.5 400/60-22.5) with Rim 1. Wear puncture-resistant and anti-aging compound to suply super long servicing life.
2. Multi tread pattern design, supply well appearance and driving performance.
3. Designed in super strength carcass, provide high-load operation protection in all-weather.SpecificationTyre
Size | PR | Tread Pattern | Rim
Size | Tube Type | Inflated Dimensions (mm) | Max Load(kg) Versus Speed | Pressure(kPa) | |
| |
| Type | TRA Code | OD | SW | 30km/h | 40km/h | |
| 400/60-15.5IMP | 14 | SAI-04 SUPER | -- | AG13.00 | TL | 875 | 405 | 3250 | 3725 | 360 | |
| |
| 400/60-15.5IMP | 16 | SAI-04 SUPER | -- | AG13.00 | TL | 875 | 405 | 3650 | 3250 | 450 | |
| |
More Sizes of Farm Implement tyre:
1. IMPLEMENT STANDARD | Size | Pattern | Rim | Inflated Dim. +/- 2% (mm) | Ply | Type | Load Capa. Free Rolling Wheel 30Kmp/h | Load Capa. Free Rolling Wheel 40Kmp/h | Inflation Pressure (bar) |
| S.W | O.D | HLV A6 Load Index | HLV Max. Load (Kgs) | HLV A8 Load Index | HLV Max. Load (Kgs) |
| 7.00-12 | IMP-01 | AG4.25 | 185 | 655 | 6 | TL | 101 | 825 | 98 | 750 | 3.4 |
| 10.0/80-12 | IMP-01 | AG7.00 | 264 | 710 | 10 | | 126 | 1700 | 121 | 1450 | 5.4 |
| 10.0/75-15.3 | IMP-01 | AG9.00 | 274 | 760 | 16 | TL | 139 | 2430 | 133 | 2060 | 7.1 |
| 14 | 136 | 2240 | 130 | 1900 | 7.1 |
| 12 | 132 | 2000 | 126 | 1700 | 6.4 |
| 11.5/80-15.3 | IIMP-01 | AG9.00 | 297 | 844 | 14 | TL | 145 | 2900 | 139 | 2430 | 6.5 |
| 12 | 141 | 2575 | 135 | 2180 | 5.6 |
| 10 | 137 | 2300 | 131 | 1950 | 4.6 |
| 12.5/80-15.3 | IMP-01 | AG9.00 | 297 | 844 | 14 | TL | 147 | 3075 | 142 | 2650 | 5.8 |
| 16 | TT | 150 | 3350 | 144 | 2800 | 6.5 |
| 400/60-15.5 | SAI-04 | AG13.00 | 405 | 875 | 10 | TL | 143 | 2725 | 136 | 2240 | 3.5 |
| 14 | 149 | 3250 | 143 | 2725 | 4.9 |
| 16 | 153 | 3650 | 149 | 3250 | 5.2 |
| 14.0/65-16 | SAI-05 | AG11.00 | 353 | 870 | 10 | TL | 140 | 2500 | 136 | 2240 | 3.7 |
| 14 | 148 | 3150 | 145 | 2900 | 5.5 |
| 15.0/55-17 | SAI-05 | AG13.00 | 391 | 580 | 14 | TL | 147 | 3075 | 141 | 2575 | 4.9 |
| 18 | 152 | 3550 | 149 | 3250 | 6.5 |
| 19.0/45-17 | SAI-05 | AG16.00 | 491 | 866 | 14 | TL | 150 | 3350 | 144 | 2800 | 3.9 |
| 18 | 160 | 4500 | 156 | 4000 | 4.5 |
| 500/50-17 | SAI-05 | AG16.00 | 500 | 945 | 14 | TL | 155 | 3875 | 152 | 3550 | 3.6 |
| 18 | 160 | 4500 | 157 | 4125 | 4.4 |
| 10.5/80-18 | IMP-01 | AG9.00 | 275 | 855 | 10 | TL | 138 | 2360 | 131 | 1950 | 5 |
| 12 | 141 | 2575 | 135 | 2180 | 6 |
| 14 | 144 | 2800 | 138 | 2360 | 7 |
| 12.5/80-18 | IMP-01 | AG9.00 | 308 | 965 | 10 | TL | 145 | 2900 | 139 | 2430 | 4.1 |
| 12 | 148 | 3150 | 142 | 2650 | 5 |
| 14 | 152 | 3550 | 146 | 3000 | 5.9 |
| 16 | 154 | 3750 | 150 | 3350 | 6.7 |
| 13.0/65-18 | IMP-01 | AG11.00 | 336 | 890 | 12 | TL | 144 | 2800 | 138 | 2360 | 4.9 |
| 14 | 147 | 3075 | 141 | 2575 | 5.8 |
| 16 | 150 | 3350 | 144 | 2800 | 6.7 |
2. FLOTATION | Size | PR | Tread Pattern | Rim | Tube Type | Inflated Dimensions (mm) | Max Load(kg) | Inflation Pressure (kPa) |
|
| OD | SW | 30km/h | 40km/h |
| 400/60-15.5 IMP | 14 | SAI-01 | AG13.00 | TL | 875 | 405 | 2900 | 2180 | 360 |
| 500/50-17 | 18 | SAI-02 | AG16.00 | TL | 950 | 500 | 4125 | 4500 | 480 |
| 400/60-22.5 | 16 | SAI-02 | AG13.00 | TL | 1070 | 450 | 4500 | 3150 | 450 |
| 500/60-22.5 | 16 | SAI-02 | AG16.00 | TL | 1170 | 476 | 4875 | 3450 | 320 |
| 550/60-22.5 | 16 | SAI-02 | AG16.00DC | TL | 1238 | 550 | 5450 | 3750 | 280 |
| 600/50-22.5 | 16 | SAI-02 | AG20.00 | TL | 1170 | 576 | 5150 | 3650 | 260 |
| 700/40-22.5 | 16 | SAI-02 | AG24.00 | TL | 1180 | 710 | 5300 | 3750 | 220 |
| 600/55-26.5 | 16 | SAI-02 | AG20.00 | TL | 1333 | 591 | 6000 | 4375 | 260 |
| 700/50-26.5 | 16 | SAI-02 | AG24.00 | TL | 1333 | 700 | 6700 | 4750 | 240 |
| 800/45-26.5 | 16 | SAI-02 | AG28.00 | TL | 1333 | 800 | 7300 | 5000 | 220 |
| 650/65-30.5 | 16 | SAI-02 | AG20.00 | TL | 1670 | 650 | 7750 | 5450 | 220 |
| 850/50-30.5 | 16 | SAI-02 | AG28.00 | TL | 1670 | 850 | 9500 | 6700 | 220 |
Other Type Wheel Assembies:
| Prod Model: |
400/60-15.5 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Assembly: |
Available |
| Diameter: |
15-16" |
| Type: |
Tubeless |
| Certification: |
CE |
| Tire Design: |
Diagonal Tire |
| Usage: |
Trailer / Baler/ Mixer / Spreader |
| Tread Pattern: |
Imp/Aw |
| Brand: |
Oasisland |
Oasisland International is one of the fast-growing tyre and wheel rim supplier in China specializing in the agricultural, trailer, construction, material handling, industrial, mining and other specials
All products we supply will be with quality and guarantee...
For the tyres we supply will be with certificates, such as CCC, DOT, ECE, GCC, SONCAP for different market.
For the Wheels, it will be engineering standards of the TRA and the ETRTO, as well as the testing standards established by SAE and EUWA. Further more, for some special market, our wheels will manufacture according to the local standard, such as Australia. That will guarantee all wheels can suit for different request of different markets.
Now we already provide some products to OEM client in some markets. We do sure our OEM market will be larger after testing our quality products. However we are small now, we will grow to be larger and stronger soon basic on our clients' support.
