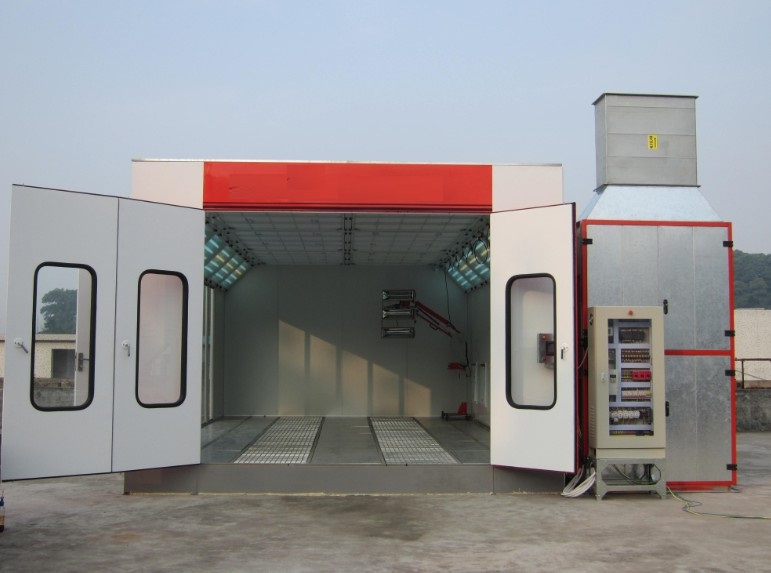

Spray Booth (S600)

Name: Spray Booth (S600)
Brand: ibuyautoparts.com
SKU: 612948662
Availability: InStock
Rating: 4.6 (100 reviews)

Price:	Negotiable/Piece
Trade Terms:	FOB
Min Order:	1/Piece
Pay Type:	T/T

Contact Supplier

Showroom Product Company Profile

Prod Model:	S600
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Certification:	CE
Condition:	New

Product Description

Outside Size (mm): 7000× 5560× 3430 (L*W*H)
Inside Size (mm): 6900× 4000× 2800 (L*W*H)

Wall panel: EPS (epispastics polystyrene) colorful steel skin boards, 50 mm thick, compound construction, anti-flame and heat-insulation, handiwork door, galvanized steel roof panel.

Basement: Two grids & three embossed plates, Galvanized Steel Sheet Construction, Two Ramps.

Air Circulation System:
Air Volume: 24, 000 m3/h;
Air Speed: 0.35 m/s;
Air Recycling times: 280 times/h;
Inlet Fan:
Blower capacity: 24, 000 m3/h
Power: 4 kw/set
Quantity: 2 sets.
Outlet Fan:
Blower capacity: 15000 m 3/h,
Power: 5.5 kw/set
Quantity: 1 set

Purification System: Dual-filtering structure, The primary filter can capture granules larger than 10 μ M. Ceiling filter can capture granules bigger than 4 μ M. Its filtering ratio reaches 98%. Air pressure balance gauge, TSP≤ 1.4 mg/m 3

Heating system:

Riello Brand G20 diesel burner, 200, 000 Kcal/h,
SUS304 stainless steel heating exchanger, argon arc welding;
Max temp: 80º C, heating time: 4-6 min (20-60º C),
Fuel consumption: 4-5kg/vehicle
Lighting System: Ceiling Light: 32pcs 36W Philips lamp; Bottom Light: 16pcs 36w Philips Lamp, 900Lux.

Control system: Micro-computer programmed controlling, spray & baking switch, light switch, emergency stop, breakdown alarm.

Environmental System: Multi-lagers fiberglass filter, active carbon.

Optional: Propane or Natural gas heater, Full grids, PLC control panel, Rock wool panel
