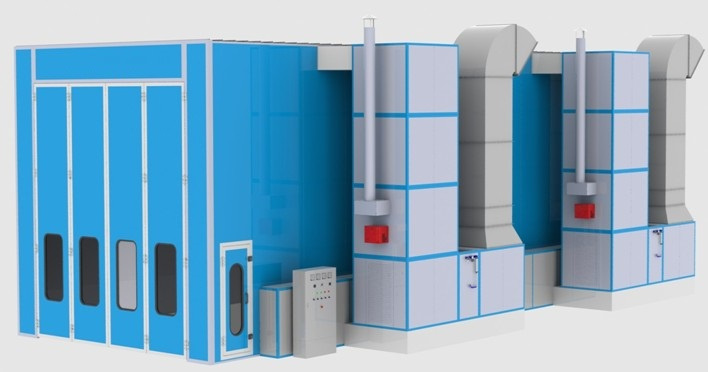

Long Bus Spray Booth--S1500

Name: Long Bus Spray Booth--S1500
Brand: ibuyautoparts.com
SKU: 687964192
Availability: InStock
Rating: 4.7 (123 reviews)

Price:	Negotiable/Piece
Trade Terms:	FOB
Min Order:	1/Piece
Pay Type:	L/C,T/T

Contact Supplier

Showroom Product Company Profile

Prod Model:	S1500
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Certification:	CE
Condition:	New

Product Description

We are the most professional spray booth manufacturer in China.
For car painting and baking, maintains a high level of safety and performance together with top quality construction and material. If you are interested in any of our products or would like to discuss a custom order, please feel free to contact us.

Interior Size	14970×5000×4800mm(L×W×H)

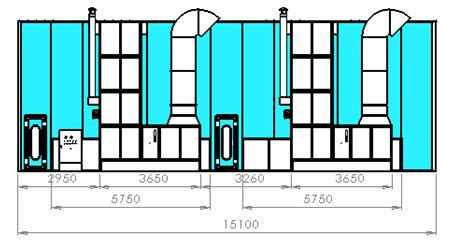

Exterior Size	15100×6600×5400mm(L×W×H)
Wall Panel	Steel Wall	75mm thick EPS Panel
	Roof Panel	Double-layer galvanized plate with heat insulation cloth inside
Door	4 Folded Entrance Door with Safety glass window ;3 Unit Entrance door size: 4000x4700mm(WxH)
	2 Unit Escape Door with Safety glass window 650x1850mm(WxH)
Air Collector	Side Air Collector Cabinet; Surface Area of the rear of the exhaust box 12.5m 2
PIT	Pit with one row extra heavy duty steel grid covers and below it lay the filters which filters the exhaust out to the exhaust fan
Ventilation System	Air Inlet System		2x11KW Direct Drive Motor (Fresh Air),970rpm; 380v; 3 phase; 50Hz, CE
	Air Exhaust System		2x11KW Direct Drive Motor (Exhaust Air), 2 straight exhaust duct with 90 degree elbow and 45 degree elbow
	Fan Capacity		64000 m 3 /h
	Air Flow Speed		+/-0.25m/s, without load
Heating System	Diesel Burner		2 Italian RIELLO G20,
	Heating Exchanger		Stainless Steel 1Gr18Ni9Ti
	Heating Exchange Capacity		186KW (260000Kcal/h)
	Max. Drying Temperature		80°C
	Heating Time		6-8mins (from 20°to 60°) baking status
Filtration System	Pre filters: Plate Filter, G3 Grade
	Ceiling Filters: F5 Grade Filter
	Exhaust Filters: G2 Grade Filter
Lighting System	Ceiling Lights: 16 Units, each unit: 4X40W Total 2560W
