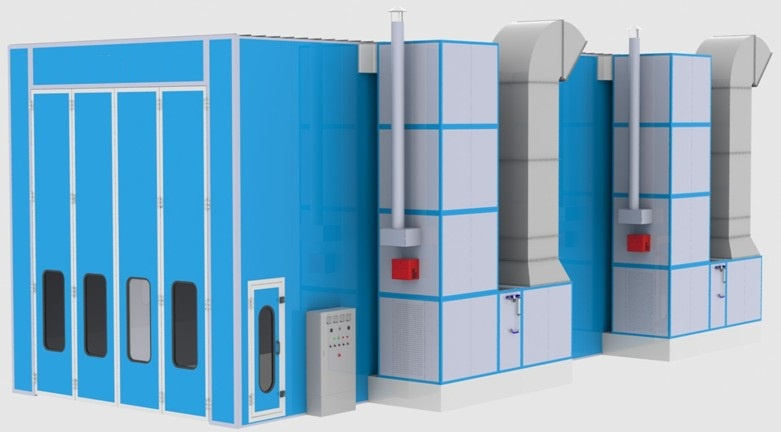

Truck/Big Bus Spray Booth--S1500A

Name: Truck/Big Bus Spray Booth--S1500A
Brand: ibuyautoparts.com
SKU: 687964122
Availability: InStock
Rating: 4.8 (41 reviews)

Price:	Negotiable/Piece
Trade Terms:	FOB
Min Order:	1/Piece
Pay Type:	L/C,T/T

Contact Supplier

Showroom Product Company Profile

Prod Model:	S1500A
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Certification:	CE
Condition:	New

Product Description

We are the most professional spray booth manufacturer in China.
For car painting and baking, maintains a high level of safety and performance together with top quality construction and material

Interior size(mm)	14970×5000×4800(L×W×H)

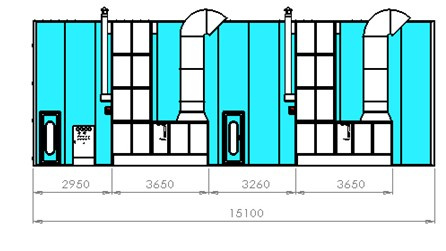

Exterior Size(mm)	15100×7025×5400(L×W×H)
Wall Panel	Steel Wall 75mm thick EPS panel; Width 1150mm
Door	3-Folded Entrance Door with Safety Glass Window 4000x4700x50mm(W x H x T); 2 Pieces of Escape Doors with Pressure Lock and safety glass window 650×1850mm(W×H)
Air Collector	There is Air Collector at one side, preinstalled filter cloth, Filtration Aera 12.5m 2
Ventilation Sys.	Air Inlet Sys	2x11kw Direct Drive Motor (Fresh Air),Fan Capacity 64000 m3/h,
	Air Exhaust Sys	2x11kw Direct Drive Motor (Exhaust Air),Fan Capacity 64000 m3/h, Exhaust Pipe with 2 Straight Tubes and 1piece of 90 degree elbow and 1 piece of 45 degree elbow
Heating System	Burner	2 Italian Riello Diesel Burner G20
	Heat Convertor	Stainless Steel HIGH EFFICIENCY; Spray and Baking switch through Pneumatic Organ
Filtration	Prefilters Plate Filter, G3 Grade; Ceiling Filters F5 grade filter; Exhaust Filters Bottom G2 grade filter
Lighting	Ceiling Lights 16 Units each unit 4x40w; Side Light 24 Units each unit 2x40w
Electric Controlling	Spray & Baking Switch, Constant temperature spray paint; Light Switch; time and temperature controller, Emergency Stop, power/burner/blower/motor indicator
Power Supply	380V(220V)/50Hz		Total Power: 49kw
