Single Post Car Washing Lift

Name: Single Post Car Washing Lift
Brand: ibuyautoparts.com
SKU: 784914945
Availability: InStock
Rating: 5 (46 reviews)

Price:	US $ 1-2000/Set
Trade Terms:	FOB,CFR,CIF
Min Order:	1/Set
Pay Type:	L/C,T/T

Contact Supplier

Showroom Product Company Profile

Product Description
H-type Single Post Car Lift
Model: JZJ-101H

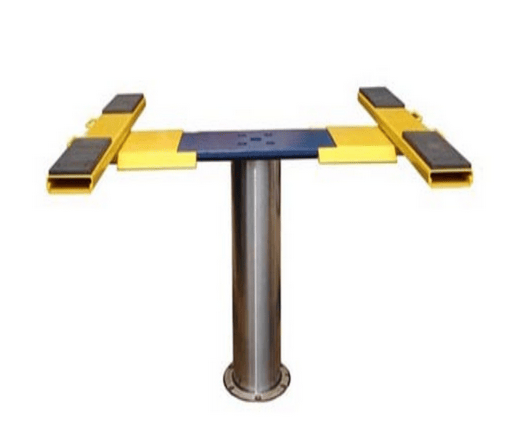

Product Picture

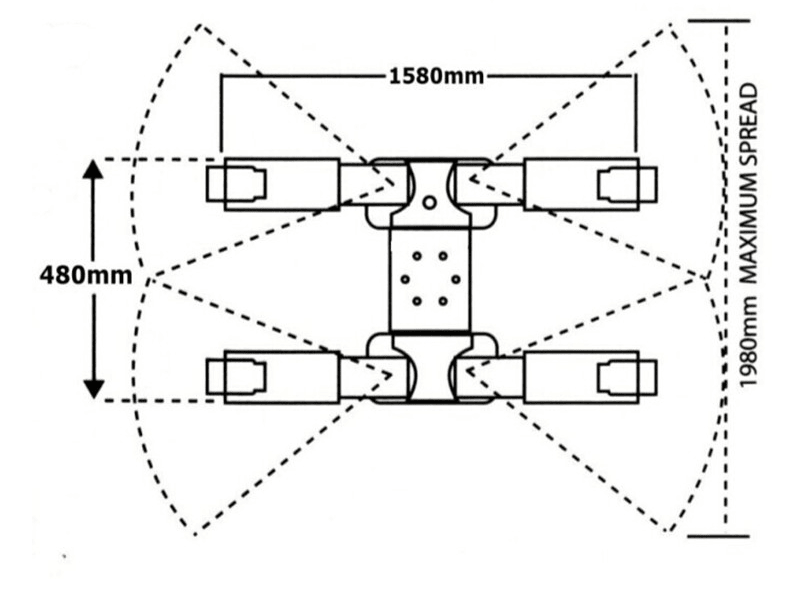

Product Drawings

Features
(1). Need not power supply, only need to connect 5bar-8bar high pressure air source can be used
(2). Lifting weights up to 2.5 to 4T (inlet pressure higher, the higher the weight lifting)
(3). Body and cylinder anti-corrosion and anti-rust, chrome-plated, can be used in water
(4). Machine can be installed directly in the ground, the soil backfill, 30mm thickness on the ground do the hardened layer without doing waterproofing work
(5). Hydraulic buffering insurance, lift smoothly, without lift shock, without two side imbalance, there will be no the risk of vehicle sudden drop, compared to other types lift more secure
(6). Upper part of the cylinder support frame can be rotated 360°
(7). After installation do not take up floor space, can improve the utilization rate per unit area, low maintenance and luxurious
(8). Maintenance need only replace the seals
(9). Very simple
(10). Particularly suitable for car wash, especially for vehicle chassis cleaning
(11). Lifting height can reach more than1805mm

Product Specification

Load Capacity	4000kg
Maxi Rise Mum	1700mm
Mini Rise Mum	110mm
Reach Adaptor Mini Mum	500mm
Reach Adaptor Maxi Mum	900mm
Air Operate	5-8bar
Plunger Diameter	270mm

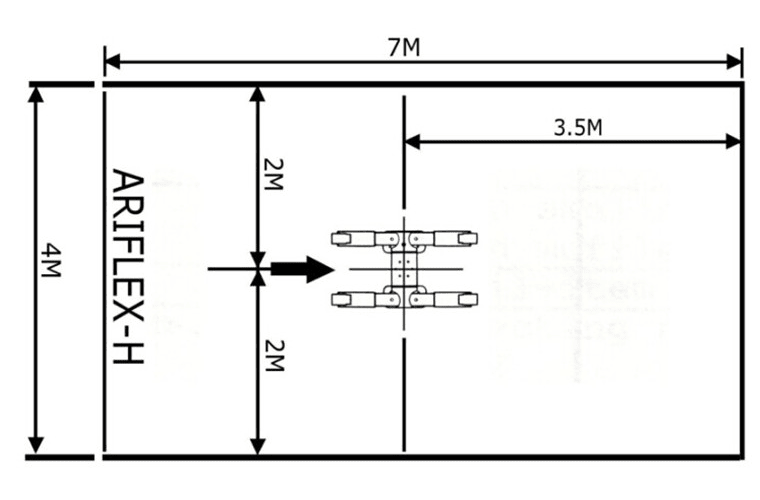

Recommended Space	3000*6250mm
Full Hard Chrome

Prod Model:	JZJ-101H
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Type:	One Cylinder Hydraulic Lift
Lifting Capacity:	3T
Certification:	ISO
Design:	Single Post
Brand:	Jingzhongjing/Jzj
