Jiangsu Jingzhongjing Industry Coating Equipment Co., Ltd. >> Underground Scissor Car Lift with Ce Certification

Underground Scissor Car Lift with Ce Certification

Underground Scissor Car Lift with Ce Certification
Price: US $ 1-2000/Set
Trade Terms: FOB,CFR,CIF
Min Order: 1/Set
Pay Type: L/C,T/T
Product Description
Scissor Lift
Model: JZJ-MAX-4130

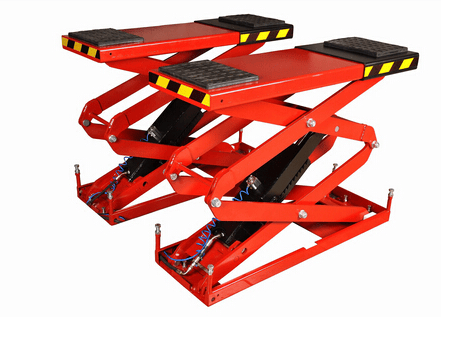

Product Picture

Features
1. Ultra-thin structure design for directly installed on the ground.
2. Four cylinders structure with minimum height of 110mm.
3. Anti-skid platform. Aluminum shell motor for overheat preventing.
4. Operating control system of 24V voltage.
5. With 24V limit switch.
6. Safe signal at 500mm above ground lowering.
7. Pneumatic lock provided.
8. Platforms can be extended for different length of vehicles.
9. Pass 115% dynamic and 150% static loading test.

Product Specification
Lifting capacity3500kg
Lifting height2030mm(path 1700mm)
Lifting time55-60s
Platform length1440-2040mm
Platform width550mm
Power supply3/N/PE-380V/50Hz
Motor power2.2Kw/380V/50Hz or 220V/50Hz(60Hz)
Rated oil pressure23Mpa
Rated air pressure0.6-0.8Mpa
Weight850kg
Packing size1700x570x740mmx2pcs 480x420x1050mm

If you have any questions or doubts, please feel free to contatc us!
Prod Model: JZJ-MAX-4130
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Type: Double Cylinder Hydraulic Lift
Lifting Capacity: 3.5T
Certification: ISO
Design: Scissor
Brand: Jingzhongjing/Jzj
Jiangsu Jingzhongjing Industrial Paint Equipment Co., Ltd, is located in the Yangtze River Delta Economic Zone, China Industrial Painting Base, Yancheng city, Jiangsu Province. We have the plant area of 99000m2, garden-style industrial zone. We have the staff of 260, including 20 engineers with 15years designing experience. Our annual production capacity can achieve 2, 500 sets paint booth.

We adhere to the "heritage of big business style, classic gaming counterparts, - creating the world brand" core values. Pursuit high goals, has won wide recognition and praise from the government and the market.

Our products are JZJ Brand spray booth, sandblasting booth, shot blasting machines etc. Our products have passed the ISO9001, EU CE, the products have been shipped in the domestic 34 provinces and more than 50 countries like Germany, Japan, Russia etc.

Our products are well-known in the industrial of the automobile, aviation, military, wind power, nuclear power, engineering machinery, machine tool manufacturing, and other industries.

Welcome the customers from China and all over the world to join us!
