Water-Based Paint Spray Booth for Audi
| Price: |
US $ 10000/Set |
| Trade Terms: |
FOB |
| Min Order: |
1/Set |
| Pay Type: |
L/C,T/T |
1. Why do you must chose JZJ spray booth?
JZJ supply spray booth to Audi, BMW, Biuck, VW, Ford more than 50 brand cars, with the very high quality standard and shot delivery time.
2. What's the quality warranty of JZJ spray booth?
We supply customers 24 months quality warranty of JZJ spray booth(Exclusive filters).
3. What's the voltage of the spray booth we can make?
We can make any kind of voltage according to customers requirement. 4. How can you contact us?
please send email to info@jzj-spraybooth, or send the inquiry to us directly. we will reply you in 12 hours.
For urgent, please call : +86 138 1029 7322 to Ms Vivian.

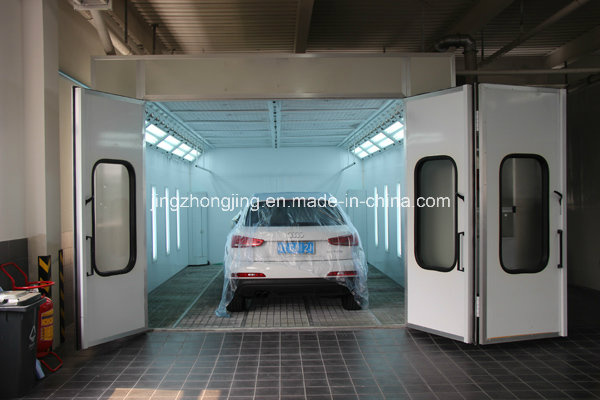

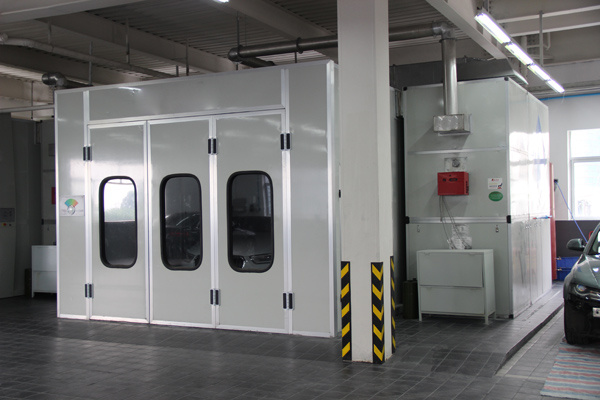

Photos:
Specification: | Outside Dimension (mm) | 7006*5546*3450(L*W*H) | Inside Dimension(mm) | 6900*4000*2650(L*W*H) |
| Front Door(mm) | 3000*2600(W*H) | Service door (mm) | 1800*650(W*H) |
| Total Power | 20KW |
| Cabin system | Wall panel | 50mm EPS sandwich panel, steel sheet thickness: 0.426mm |
| Ceiling panel | 50mm rock-wool panel. |
| Basement | 300mm depth, full galvanized grids basement |
| Ramps | Three pieces 2000*900mm ramps |
| Glass | 4mm safety tempered glass |
| Windows | Square glass windows |
| Air Make-up System | Air Inlet fan system | 1*7.5kw turbo fan, proof-explosion motor, Ex rated |
| Exhausted fan system | 1*7.5KW turbo fan, proof-explosion motor, Ex rated |
| Ai capacity for fresh air | 25000m3/h |
| Air Flowing speed | 0.3m/s in empty booth |
| Air ducting | 8meters straight ducting, one flop damper and one weather hood. |
| Water- based system | Ceiling nozzles | 36pcs stainless nozzles |
| Corner dryers | 2pcs with 0.18KW motor |
| Ceiling fan | 2 x 1.5KW, air capacity: 4500m3/h |
| Purification System | Pre-filter | G3 grade, Pockets filter. |
| Ceiling filter | EU5 / F5 |
| Floor filter | green fiber glass filter / G3 grade |
| Exhausted fan Filters | green fiber glass filter and active carbon |
| Heating System | Heat Exchanger | SUS304 material, argon arc welding. |
| Heating burner: | RielloG20 diesel oil burner(gas burner for option) |
| Heating productivity | 180000Kcal/h |
| Spray to baking switch | 20N BELIMO brand electrical damper |
| Chimney ducting | 3 meters stainless ducting and one chimney elbow |
| Max heating temperature | 80ºC |
| fuel consumption | 6-8L /vehicle |
| Lighting System | Ceiling lights | 8 Units, each 4 x 36W Philips lamps, Total 1152 W |
| Side lights | 8 Units, each2 x 36W Philips lamps, Total 576W |
| Illumination | 1000LUX |
| Controlling system | Switched control panel | Spraying & baking switch, lighting switch, emergency stop, breakdown alarm, failure alarm, pressure gauge |
| Prod Model: |
JZJ-9500 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Dimension: |
6900*4000*2650 |
| Color: |
Customers Choice |
| Control System: |
All The Components Are Siemens and Schneider |
| Certification: |
CE |
| Heating Mode: |
Diesel |
| Paint Mist Treatment: |
Dry-type |
| Condition: |
New |
| Brand: |
Jzj |
| Airflow Direction: |
Full Down Draft |
Jiangsu Jingzhongjing Industrial Paint Equipment Co., Ltd, is located in the Yangtze River Delta Economic Zone, China Industrial Painting Base, Yancheng city, Jiangsu Province. We have the plant area of 99000m2, garden-style industrial zone. We have the staff of 260, including 20 engineers with 15years designing experience. Our annual production capacity can achieve 2, 500 sets paint booth.
We adhere to the "heritage of big business style, classic gaming counterparts, - creating the world brand" core values. Pursuit high goals, has won wide recognition and praise from the government and the market.
Our products are JZJ Brand spray booth, sandblasting booth, shot blasting machines etc. Our products have passed the ISO9001, EU CE, the products have been shipped in the domestic 34 provinces and more than 50 countries like Germany, Japan, Russia etc.
Our products are well-known in the industrial of the automobile, aviation, military, wind power, nuclear power, engineering machinery, machine tool manufacturing, and other industries.
Welcome the customers from China and all over the world to join us!
