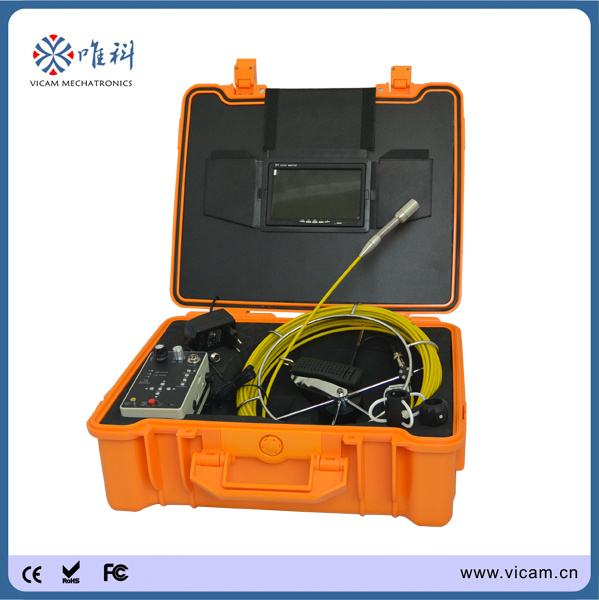

Remote vision camera pipe inspection system
Stainless steel Pipe Inspection Camera Head
* Camera head size Φ 23 x 45mm for pipe Φ 25 to 200mm
* Camera head housing material stainless steel
* Camera lens window material sapphire glass
* Sensor size 1/4 inch
* Total Pixels PAL 720X576 NTSC 720X 480
* Waterproof IP68
* Field of view 120°
* Camera lighting 12 white LEDS
Pipe Inspection Camera Monitor
* 10 inch HD LED color monitor
* Power supply DC 12V
* OSD language: English
* mirror image
* Sunshade included
Pipe Inspection Camera DVR Control Box
* DVR power supply 12V DVR work current 200mA
* Storage medium SD card jack (8G SD card included)
* Rechargeable Li-ion Battery power supply (18650 x 6 pcs 4400 mAH)
* USB jack for Keyboard
* MIC on / off button and earphone output jack ( earphone bud included)
Cable Reel with meter counter
* Stainless steel Cable Reel size Φ 320 x 110mm
* 20m Φ 5.2mm fiberglass rod push cable (30m, 40m optional) with meter counter
USB Keyboard
* Removable waterproof keyboard;
* 2m lead wire;
* USB plug for DVR control box;
Carrying case
* ABS engineering carrying case size: 520 x 435 x 200mm
* Unit operating temperature: -10 to 50 degrees Celsius, RH 95% maximum
* Storage temperature: - 20 to 70 degrees Celsius, RH 95% maximum
Payment Terms
* Payment terms: T/T, Western Union 30% deposit, balance before shipment;
* Trade term: FOB, CIF & EXW are available;
Packing & Shipping
Durable ABS carrying case 520 x 435 x 200mm
2 pieces cases in one carton
DHL express
5-7 working days after payment
All products will be tested & inspected before delivery
Tracking No. Will be sent after delivery
Warranty
* One year warranty, whole life service;
* Any problem, freely return within one week;
Why Vicam
* We as a leading manufacturer specialize in pipe inspection systems & cameras.
* Rich experience of 8 years to design, produce and export.
* France CYBERIA SAS, and Shenzhen Institutes of Advanced Technology support.
* Professional engineers guarantee the reliable products.
* Strong production line provide best price, good quality and fast delivery.
* Inquiry will be replied within 24 hours
Contact Us
Shenzhen Vicam Mechatronics Co., Ltd
ADD: 6/F., Block 11 North Area, Shangxue Industrial Park, Bantian, Shenzhen, China
Web: www.vicam.cn;
TEL: +86 755 8920 2820
FAX: +86 755 8920 2819
|
Brand Name |
VICAM |
|
Model |
V10-3188KC |
|
Type |
Chimney inspection camera |
|
Camera Diameter |
23mm |
|
Camera len |
sapphire glass |
|
Camera matrial |
stainless steel |
|
Sensor |
1/4 inch CMOS |
|
Special Feature |
waterproof / weatherproof |
|
LED Lighting |
12 pcs white LEDs |
|
Monitor size |
10 inch LED screen |
|
Viewing Angle |
90 degree |
|
Cable Length |
20m-50m |
|
Certification |
CE, FCC, RoHS |
|
Equipment |
monitor, 20m cable, DVR, keyboard, meter counter, SD card, battery & charger, ABS case |
Vicam Mechatronics Co., Ltd is a professional manufacturer located in Shenzhen, South of China, specialising in the design, manufacturer and assembly of video inspection systems. Focusing on the pipeline inspection cameras and underwater cameras system, we have experience over 8 years and a complete product range.
Our main product range include portable pipeline video inspection system, underground sewer pipe inspection system and special inspection cameras i. e. Vehicle engine inspection, chimney inspection and CCTV robots for complex applications and hazardous area rated environment.
Our main market is Europe, US, Australia, South America etc. And all products approved with CE, RoHS, UL, FCC certificates.
We have complete after sale service policy. Each of Vicam product has 1 year quality guarantee. Also we provide technology support to all our clients and 3% free charge spare parts for each shipment.
