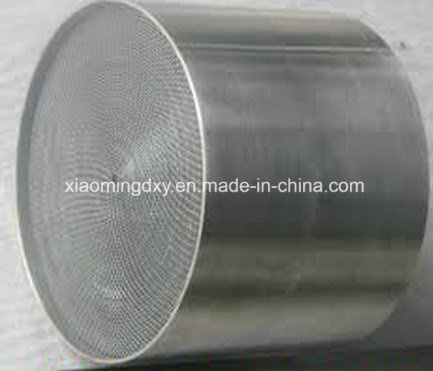

Metal Honeycomb Substrate With Top Quality And Attractive Price:Passing through the strict test of endurance, our motorcycle catalyst converter has met European emission standard, and the economical sloss (loss) of motorcycle's power could be less than 3%. Its catalyst carrier includes: Metallic catalyst carrier and honeycomb ceramic catalyst carrier. We could customize the products according to clients's different requirement. To make the product with tri-angle, round and square hole as well as other specification in accordance with customer's demand. High temperature resistant and excellent catalyst activated technique which can make the engine can keep well exhaust function in the working environment. It can be specialized designed for the customers various vehicle type, hence can achieve ideal engine function and match the exhaust emission standard.

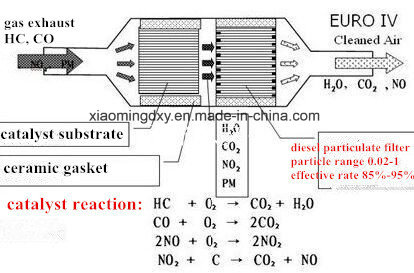

Metallic substrate is with the advantages of fast burning, small volume, high mechanical strength, prominent heat-resistance, etc. It is widely used in exhaust gas purification, especially for motorbike. High strength complex substrate plus big surface area and active element of noble metal could lower down pollutant value of motorcycle exhaust efficiently, such as CO, HC, NOX etc...Our catalyst type: Complex catalyst of noble metal (Pt, Pd, Rh) plus rare earth complex catalyst.
B. Catalytic substrate: Metal substrate and honeycomb ceramic substrate. Fantastic coating fastness and stably and long-term catalyst ability. Advanced technic of substrates making and canning, ensuring depandable resistance heat shocks and stability of equipment. Various kinds of specifications and types, customized products as per clients specific requirement and technology data.
Applications:*Round & Ovel metallic substrate for On-road vehicle
*Metallic substrate for small engine
*Metallic substrate for Off-road vehicle
*Metallic substrate for industrial catalyst
*Specific structure metallic substrate for other application
High dispersion of precious metal:*Low light -off temperature
*Excellent oxygen storage ability wide span of λ
*Good performance against high temperature
*Ruduces emission of CO, HC, NOx by up to 98%
*Can be provided in a standard or custom configuration
*Excellent and stable double-coating technology
*Excellent resistance to sulfur poisoning properties
*Meet the Standards European II ~ Europe V emission standard approved
| Shape | Material | Diameter | Length | Channel density(cpsi) |
| Cylinder | Fe/Cr/Al | 35 | 40/60/70/100 | 100/200 |
| Cylinder | Fe/Cr/Al | 38 | 100 | 100/200 |
| Cylinder | Fe/Cr/Al | 42 | 100 | 100/200 |
| Cylinder | Fe/Cr/Al | 48.6 | 70/100/130 | 100/200/300 |
| Cylinder | Fe/Cr/Al | 63 | 50/75/100/130 | 200/300/400 |
| Cylinder | Fe/Cr/Al | 73 | 70/100/130 | 200/300/400 |
| Cylinder | Fe/Cr/Al | 93 | 100/130 | 200/300/400 |
| Cylinder | Fe/Cr/Al | 101.6 | 100/130 | 200/300/400 |
| Cylinder | Fe/Cr/Al | 420 | 100/130 | 300/400 |
| Mantle | Matrix | Brazing |
| Ferritel (SUS444, SUS441, SUS430) | Fe-Cr-Al with RE, Zr/Ti additions high temperature oxidation resistant special alloy
Domestic FeCrAl(2073/216)
Import FeCrAl(1.4725/1.4767) | Nickel base alloy |
| or Austenitic heat resistant stainless steel (SUS304) |
Beihai Xiaoming International Imp&Exp Co., Ltd Established in 2008, which is a Private High-tech company located in Beihai city, China that is famous for its Silver Beach. We are a professional manufacturer and exporter of producing and exporting SiC/Al2O3/Zirconia Ceramic Foam Filter, Honeycomb Ceramic Heater for RTO, Infrared Cramic Plate, Cordierite/SiC Diesel Particulate Filter, Ceramic/Metal Honeycomb Substrate etc chemical products.
Beihai Xiaoming International Imp&Exp Co., Ltd is in the production, sales as a whole, and in cooperation with a number of large Group companies of major export commodities operated enterprises with a good reputation. For many years, with exports to Europe, and many countries in Southeast Asia, and received high praise.
We have a number of domestic and international famous academia senior adviser, own an innovation R & D team and sales elite. We have an excellent team of R & D\Production\Management and Sales, with passionate and responsibility. Currently, we have applied more than 30 patents for products developed and got certificates issued by international authorities such as TUV, IEC, UL, CE.
With the spirit of innovation during R&D, we were, we are and we will always be perfecting our products with the philosophy of " science, precision, accuracy and high efficiency". We hereby make our commitment: We offer our clients with the most effective and satisfying service, and this is our every person in our company to constantly pursuit.
