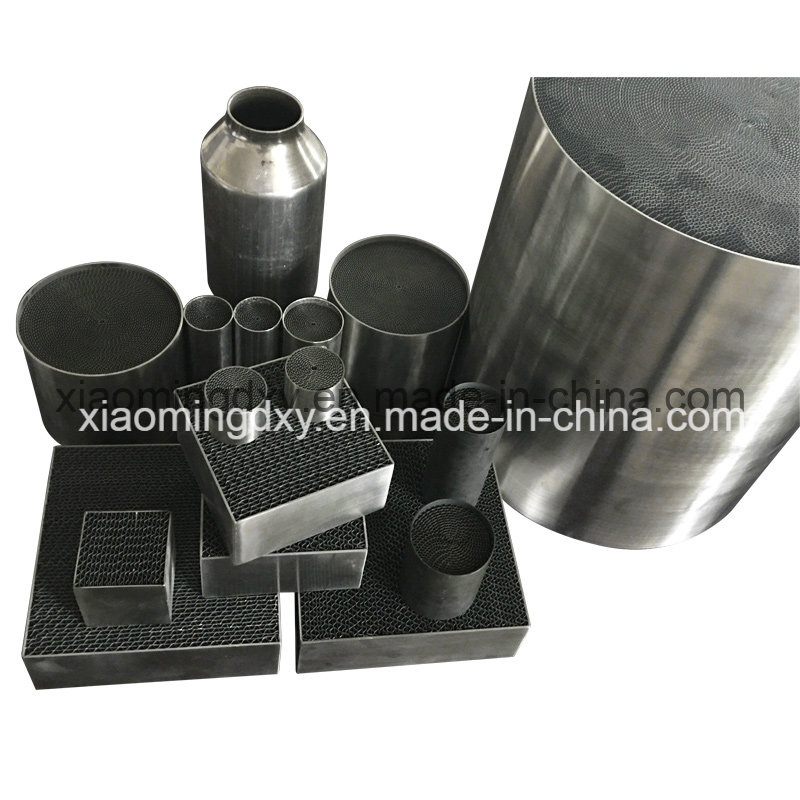

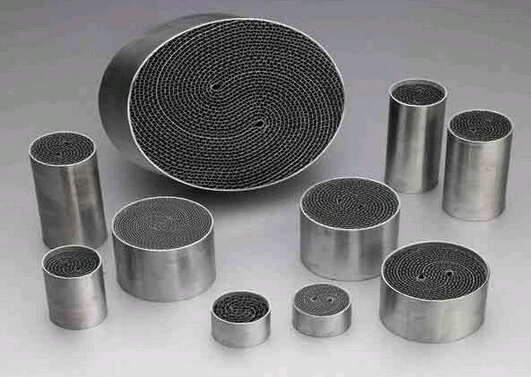

Catalyst Honeycomb Metal Subsrate:Metal Honeycomb Substrate Catalyst is made of catalyst platinum and palladium, these three precious metals to rhodium. When carbon monoxide, hydrocarbon and nitrogen gas through the catalyst, the activity will improve under high temperature. As results, carbon monoxide is oxidized carbon dioxide, hydrocarbons into water and carbon dioxide and nitrogen oxides reduction of nitrogen.
The material of outside shell is SUS441 and 444, the foil material of inside is OCr21Al6, and the thickness is 0. Imm. Compared to ceramic honeycomb substrate, metal honeycomb substrate has good heat conduction advantage. It can be made of concentric round metal substrate, also can be made of duboule's metal substrate.
Catalyst Carrier Honeycomb Metal Substrate:*Can supply with Europe. II, III, IV, V Standard product
*Can supply samples for your testing
*Can supply SGS test or other test as you need
*Can supply various of type as you need
*Can supply top quality and competitive metal honeycomb substrate
| Shape | Shell size(mm) | Core size(mm) | Cell density (CPSI) |
| Rotundity | Φ 30×22 | Φ 28×20 | 100/200/300/400 |
| Rotundity | Φ 35×20 | Φ 33×20 | 100/200/300/400 |
| Rotundity | Φ 35×30 | Φ 33×30 | 100/200/300/400 |
| Rotundity | Φ 35×40 | Φ 33×40 | 100/200/300/400 |
| Rotundity | Φ 35×50 | Φ 33×50 | 100/200/300/400 |
| Rotundity | Φ 35×60 | Φ 33×60 | 100/200/300/400 |
| Rotundity | Φ35 × 70/100/130 | Φ33 × 60/90/120 | 100/200/300/400 |
| Rotundity | Φ42 × 70/100/130 | Φ40 × 60/90/120 | 100/200/300/400 |
| Rotundity | Φ45 × 70/100/130 | Φ43 × 60/90/120 | 100/200/300/400 |
| Rotundity | Φ63,5 × 85/100/130 | Φ60,5 × 74,5/90/120 | 200/300/400 |
| Rotundity | Φ73 × 70/100/130 L | Φ70 × 60/90/120 | 200/300/400 |
| Rotundity | Φ93 × 70/100/130 | Φ90 × 60/90/120 | 200/300/400 |
| Rotundity | Φ100,3 × 100/130 | Φ98,3 × 90/120 | 600 |
| Rotundity | Φ144 × 150/152,4 | Φ142 × 140/142,4 | 200/300/400 |
| Rotundity | Φ190 × 200 | Φ188 × 190 | 200/300/400 |
| Rotundity | Φ420 × 100/130 | Φ416 × 90/120 | 300/400 |
| Race track | 123×63×85 | 120×60×75 | 200/300 |
| Race track | 123×63×100 | 120×60×90 | 200/300 |
| Race track | 78,5×52×104 | 76,5×50×90 | 200/300 |
