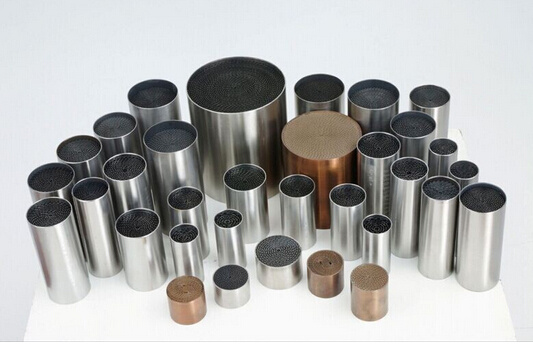

Honeycomb Metal Substrate has the advantages of fast burning, small volume, high mechanical strength, prominent heat-resistance, etc. It is widely used in exhaust gas purification, especially for motorbike. We can make 100CPSI, 200CPSI, 300CPSI, 400CPSI and 600CPSI honeycomb metallic substrate in various shapes, such as round, oval, racetrack and other customized shapes. We constantly improve the quality and service, our products get high reputation from customers.
We mainly produce Metal Catalytics and Ceramic Catalytics for Auto and Motorcycle exhaust system:
Precious Metal: PT/Pd/Rh--Ducati/Harley
Wall Material: Cordierite/ Stainless
Coating Material: Al2O3 and rare earth oxygen storage materials
Usage: For exhaust system of auto engine, like Honda, Suzuki, Toyato, etc. And Diesel engine, like farm machinery and construction machinery: Tiller, Harvester, Rice transplanter, Planter, Rice mill, Weeder, Thresher, hoisting machinery, excavator, Reinforced concrete machinery.
Durability: Ceramic catalyst: 80, 000 KM/ Metal catalyst: 100, 000 KM
Specification: Cylinder shape, "T" series (one hole)/ "S" series (Two holes)/ three-holes
Size: Dia110mm~155mm, Hight: 40mm~150mm, Cell: 100~600cpsi
Like: Dia110*110(Inner hight 80)mm/ 200cpsi
Dia120*130(Inner hight120)mm/ 400cpsi
Advantages:*High temperature resistant
*Excellent and stable double-coating technology
*Excellent resistance to sulfur poisoning properties
*Meet the Standards European II ~ Europe V emission standard, EPA, CARB standard
*Corrosion resistant
*High durability performance
*Can be specialized designed for the customers various vehicle type
Substrate
| Mantle | 430/436/441/444 |
| Honeycomb | Fe-Cr-Al |
| Brazing Material | BNi5 |
| Shape | Shell size(mm) | Core size(mm) | Cell density (CPSI) |
| Rotundity | Φ 30 × 22 | Φ 28 × 20 | 100/200/300/400 |
| Rotundity | Φ 35 × 20 | Φ 33 × 20 | 100/200/300/400 |
| Rotundity | Φ 35 × 30 | Φ 33 × 30 | 100/200/300/400 |
| Rotundity | Φ 35 × 40 | Φ 33 × 40 | 100/200/300/400 |
| Rotundity | Φ 35 × 50 | Φ 33 × 50 | 100/200/300/400 |
| Rotundity | Φ 35 × 60 | Φ 33 × 60 | 100/200/300/400 |
| Rotundity | Φ 35 × 70/100/130 | Φ 33 × 60/90/120 | 100/200/300/400 |
| Rotundity | Φ 42 × 70/100/130 | Φ 40 × 60/90/120 | 100/200/300/400 |
| Rotundity | Φ 45 × 70/100/130 | Φ 43 × 60/90/120 | 100/200/300/400 |
| Rotundity | Φ 63,5 × 85/100/130 | Φ 60,5 × 74,5/90/120 | 200/300/400 |
| Rotundity | Φ 73 × 70/100/130 L | Φ 70 × 60/90/120 | 200/300/400 |
| Rotundity | Φ 93 × 70/100/130 | Φ 90 × 60/90/120 | 200/300/400 |
| Rotundity | Φ 100,3 × 100/130 | Φ 98,3 × 90/120 | 600 |
| Rotundity | Φ 144 × 150/152,4 | Φ 142 × 140/142,4 | 200/300/400 |
| Rotundity | Φ 190 × 200 | Φ 188 × 190 | 200/300/400 |
| Rotundity | Φ 420 × 100/130 | Φ 416 × 90/120 | 300/400 |
| Race track | 123 × 63 × 85 | 120 × 60 × 75 | 200/300 |
| Race track | 123 × 63 × 100 | 120 × 60 × 90 | 200/300 |
| Race track | 78,5 × 52 × 104 | 76,5 × 50 × 90 | 200/300 |
Beihai Xiaoming International Imp&Exp Co., Ltd Established in 2008, which is a Private High-tech company located in Beihai city, China that is famous for its Silver Beach. We are a professional manufacturer and exporter of producing and exporting SiC/Al2O3/Zirconia Ceramic Foam Filter, Honeycomb Ceramic Heater for RTO, Infrared Cramic Plate, Cordierite/SiC Diesel Particulate Filter, Ceramic/Metal Honeycomb Substrate etc chemical products.
Beihai Xiaoming International Imp&Exp Co., Ltd is in the production, sales as a whole, and in cooperation with a number of large Group companies of major export commodities operated enterprises with a good reputation. For many years, with exports to Europe, and many countries in Southeast Asia, and received high praise.
We have a number of domestic and international famous academia senior adviser, own an innovation R & D team and sales elite. We have an excellent team of R & D\Production\Management and Sales, with passionate and responsibility. Currently, we have applied more than 30 patents for products developed and got certificates issued by international authorities such as TUV, IEC, UL, CE.
With the spirit of innovation during R&D, we were, we are and we will always be perfecting our products with the philosophy of " science, precision, accuracy and high efficiency". We hereby make our commitment: We offer our clients with the most effective and satisfying service, and this is our every person in our company to constantly pursuit.
