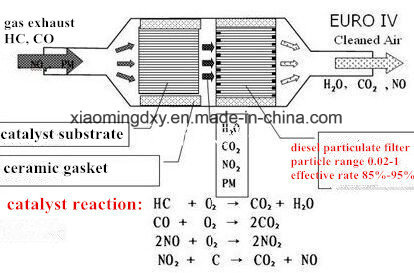

The catalytic converter is coated with rare earth element and noble metals of Pt, Pd, Rh. When the engine exhaust passing through the three-way catalytic converter the elements of CO would be oxidized into CO2, the HC is turned into H2O and CO2, while the NOX is deoxidized into nitrogen. The catalytic converter substrate is made of metal honeycomb with stainless steel crust and Fe-Cr-Al honeycomb body, it is a critical part of motorcycles and off-road engines to make the exhaust emission meet government standard.

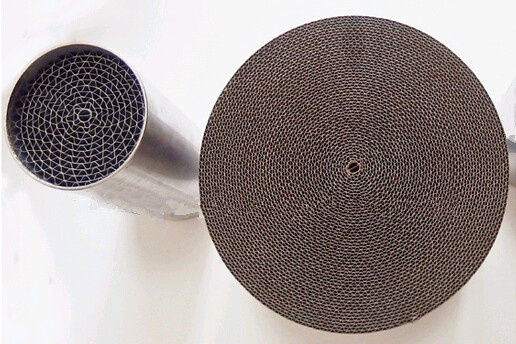

Metallic substrate is with the advantages of fast burning, small volume, high mechanical strength, prominent heat-resistance, etc. It is widely used in exhaust gas purification, especially for motorbike. Firstly metallic substrate should be pretreated in order to generate a transition layer which is required to solve the mismatched heat expansion between metallic substrate itself and the active layer. On the transition layer, it is coated with rare earth catalyst, while in active layer is coated with noble metal like Pt, Pd, Rh.
Major technical parameters:Substrate: Metal honeycomb substrate (Fe-Cr-Al alloy)
Light-off temperature: CO≤ 200° C, HC≤ 200° C, NOX≤ 200° C
Coating losing rate ≤ 3%
Conversion rate: CO≥ 90%, HC≥ 90%, NOX≥ 80%
Durability: Not less than 15000 kilometers
Features:*Low thermal expansion
*High surface area
*Long-term durability performance
*Low pressure drop
*Good thermal shock resistance
*Combined with the EGR systems to help different vehicles to satisfy emission standard
*Low light-off temperature
*Excellent adhesion between wash-coat and susbstrate with netty structure

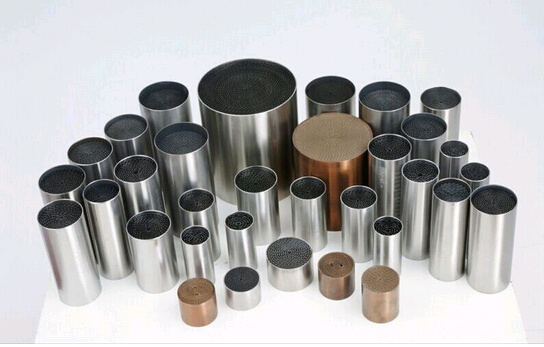

Shape | Shell size(mm) | Core size(mm) | Cell density (CPSI) |
Rotundity | Φ 30×22 | Φ 28×20 | 100/200/300/400 |
Rotundity | Φ 35×20 | Φ 33×20 | 100/200/300/400 |
Rotundity | Φ 35×30 | Φ 33×30 | 100/200/300/400 |
Rotundity | Φ 35×40 | Φ 33×40 | 100/200/300/400 |
Rotundity | Φ 35×50 | Φ 33×50 | 100/200/300/400 |
Rotundity | Φ 35×60 | Φ 33×60 | 100/200/300/400 |
Rotundity | Φ35 × 70/100/130 | Φ33 × 60/90/120 | 100/200/300/400 |
Rotundity | Φ42 × 70/100/130 | Φ40 × 60/90/120 | 100/200/300/400 |
Rotundity | Φ45 × 70/100/130 | Φ43 × 60/90/120 | 100/200/300/400 |
Rotundity | Φ63,5 × 85/100/130 | Φ60,5 × 74,5/90/120 | 200/300/400 |
Rotundity | Φ73 × 70/100/130 L | Φ70 × 60/90/120 | 200/300/400 |
Rotundity | Φ93 × 70/100/130 | Φ90 × 60/90/120 | 200/300/400 |
Rotundity | Φ100,3 × 100/130 | Φ98,3 × 90/120 | 600 |
Rotundity | Φ144 × 150/152,4 | Φ142 × 140/142,4 | 200/300/400 |
Rotundity | Φ190 × 200 | Φ188 × 190 | 200/300/400 |
Rotundity | Φ420 × 100/130 | Φ416 × 90/120 | 300/400 |
Race track | 123×63×85 | 120×60×75 | 200/300 |
Race track | 123×63×100 | 120×60×90 | 200/300 |
Race track | 78,5×52×104 | 76,5×50×90 | 200/300 |
