| Prod Model: |
MHS |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Material: |
SS304 |
| Usage: |
as Catalyst Used in Automobile/Motorcycle |
| Cell: |
100-600cpsi |
| Thickness(mm): |
0.04-0.1 |
| Width(mm): |
10-250 |
| Max Working Temperature: |
1100°c |
| Max Service Temperature: |
1250°c |
| Body Material: |
Steel |
| Discharge Standard: |
Euro V |
| Certification: |
TS16949 |
| Component: |
Catalytic Converter |
Product Description

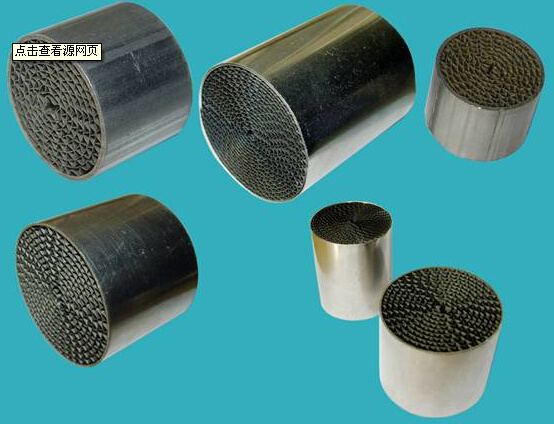

Metal Honeycomb Converters Substrate:1. Diameter: 35mm, Length: 100mm, Honeycomb length: 90mm, Cell Density: 200cpsi
2. Used in motorcycle catalytic converters
3. Coating different loading and ratio of precious metal with technology
4. EURO 3, 4, EP
Motorcycle Catalyst Metal Honeycomb Substrate Features:1. Stainless steel shell,
2. Foil material is OCr21Al6, foil thickness is 0.1mm
3. Cell pieces per square inch: 100, 200, 300 and 400cpsi
4. Shape and dimension is customized according to drawing provided
It satisfies the Euro II III V standard. Features:1. Applications: Transforms CO, HC and NOx to CO2, H2O and N2
2. Chooses metal catalyst with suitable size, volume, precious metal content and ratio
According to motorcycles' practical situation to satisfy certain emission rule
3. We always choose metal honeycomb carrier with stainless steel crust and Fe-Cr-Al core made
Features:*Good thermal shock resistance
*Corrosion resistant
*High durability performance
*Designed to fit customers' specific needs
| Shape | Shell size(mm) | Core size(mm) | Cell density (CPSI) |
| Rotundity | Φ 30×22 | Φ 28×20 | 100/200/300/400 |
| Rotundity | Φ 35×20 | Φ 33×20 | 100/200/300/400 |
| Rotundity | Φ 35×30 | Φ 33×30 | 100/200/300/400 |
| Rotundity | Φ 35×40 | Φ 33×40 | 100/200/300/400 |
| Rotundity | Φ 35×50 | Φ 33×50 | 100/200/300/400 |
| Rotundity | Φ 35×60 | Φ 33×60 | 100/200/300/400 |
| Rotundity | Φ35 × 70/100/130 | Φ33 × 60/90/120 | 100/200/300/400 |
| Rotundity | Φ42 × 70/100/130 | Φ40 × 60/90/120 | 100/200/300/400 |
| Rotundity | Φ45 × 70/100/130 | Φ43 × 60/90/120 | 100/200/300/400 |
| Rotundity | Φ63,5 × 85/100/130 | Φ60,5 × 74,5/90/120 | 200/300/400 |
| Rotundity | Φ73 × 70/100/130 L | Φ70 × 60/90/120 | 200/300/400 |
| Rotundity | Φ93 × 70/100/130 | Φ90 × 60/90/120 | 200/300/400 |
| Rotundity | Φ100,3 × 100/130 | Φ98,3 × 90/120 | 600 |
| Rotundity | Φ144 × 150/152,4 | Φ142 × 140/142,4 | 200/300/400 |
| Rotundity | Φ190 × 200 | Φ188 × 190 | 200/300/400 |
| Rotundity | Φ420 × 100/130 | Φ416 × 90/120 | 300/400 |
| Race track | 123×63×85 | 120×60×75 | 200/300 |
| Race track | 123×63×100 | 120×60×90 | 200/300 |
| Race track | 78,5×52×104 | 76,5×50×90 | 200/300 |
