Marine Power Steering Gear

Product Description

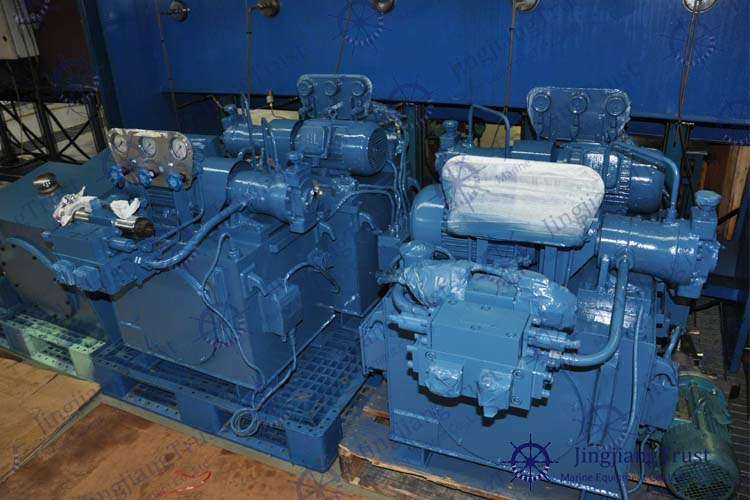

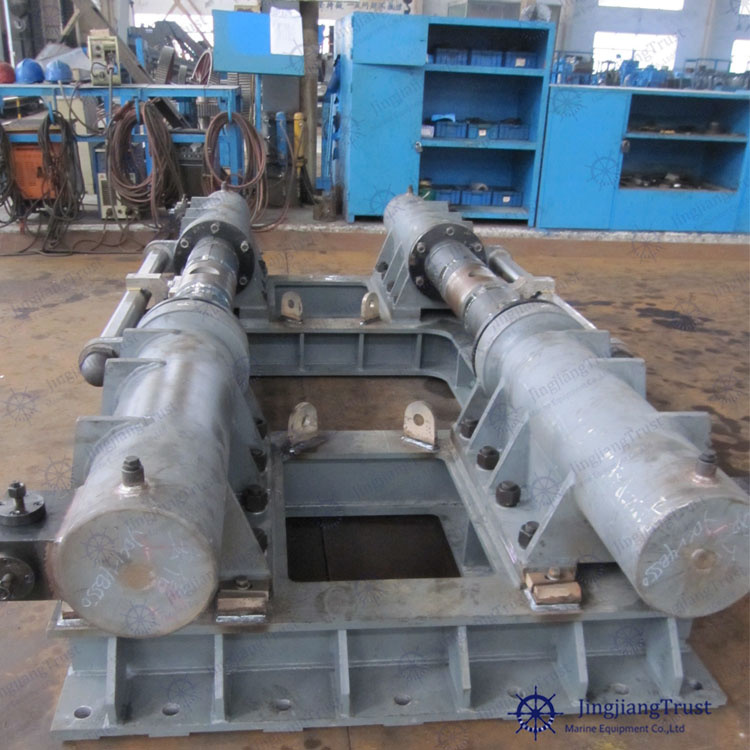

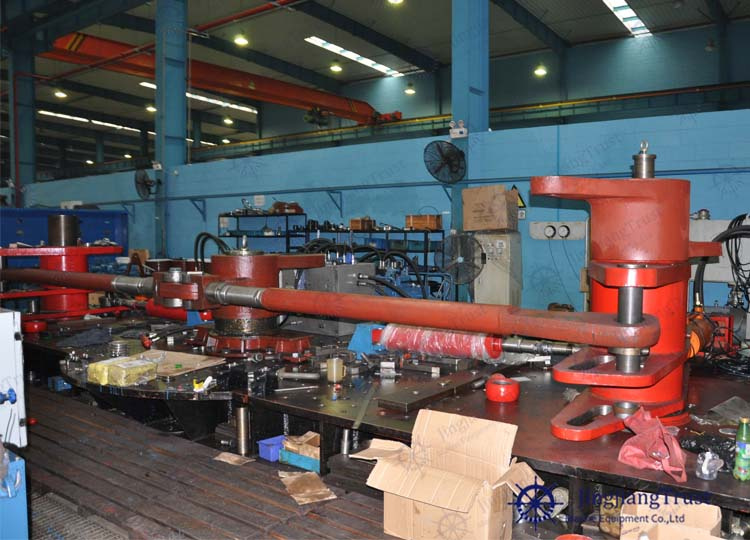

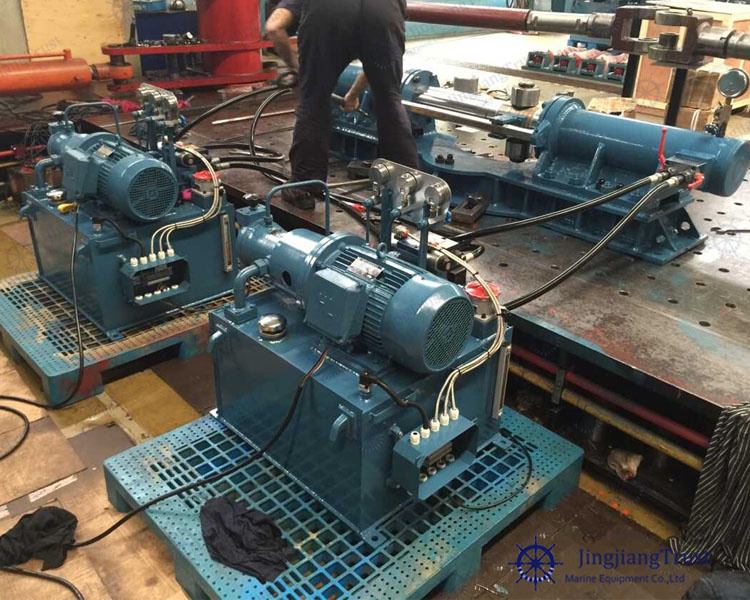

Marine Power Steering Gear - Fork type (four cylinders with twin piston and one tiller type) consists of two sets of reciprocating and fork type rudder mechanism, two sets of motor kinetic tank for oil pump, one reserve tank. Control mode, including electronic control, pump control, can be used together with any form of autopilot or follow-up pilot. To meet cunstomer's requirement, two sets of rudder mechanism, can be used together or separately. One of which fails to work, can be used separated to ensure normal work of steering control. It is widely used for ships with high safety performance such as large ship, oil tanker, liquefied-gas carrier, chemical tanker and etc.

NO.	NOMINAL TORQUE (kN.m)	A	B	C	CENTER HEIGHT H1	H2	TILLER THICKNESS h	STEERING RADIUS R	RUDDER DIA. D
1	320-400	3270	1470	3030	530	1010	500	450	≤340
2	500-630	3610	1572	3400	560	1040	560	500	≤420
3	700-800	3914	1740	3600	560	1053	740	570	≤420
4	900-1000	4300	1910	3800	560	1070	800	600	≤450

All steering gear can be customized according to your requirements.

Before quotation pls advise the following specifications!

A. one set of rudder mechanism, two oil pump units, one reserve tank

1.Type: swing type/ fork type/ rotary van type

2.Nos. of rudders

3.Torque

4.Max. turning angle

5.Turning time

B. Emergency steering gear

C. Manual pilot/ Auto pilot/ Follow-up pilot

Note: the datas in table are just for reference, we could design and recommend correct model according to client's requirements, if you have no idea, just send us your ship or project information, we could help you.

Prod Model:	Steering Gear
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Nominal Torque:	320-1000kn.M
Gear Type:	Fork Type
Certificates:	CCS,ABS,Dnv,Nk,Lr,BV,Rina
Usage:	Large Ship
Nos Of Rudders:	1,2,3,4
Power Source:	Hydraulic
Product Name:	Marine Power Steering Gear
Keywords:	Steering Gear
Keyword:	Power Steering Gear
Warranty:	12 Months
Type:	Steering Gears/Shaft
Material:	Stainless Steel
Certification:	BV, CE, ISO9001, CCS, CCC
Automatic:	Semi-Automatic
Standard:	Standard
Condition:	New
