Hydraulic Ram Type Marine Steering Gear

Product Description

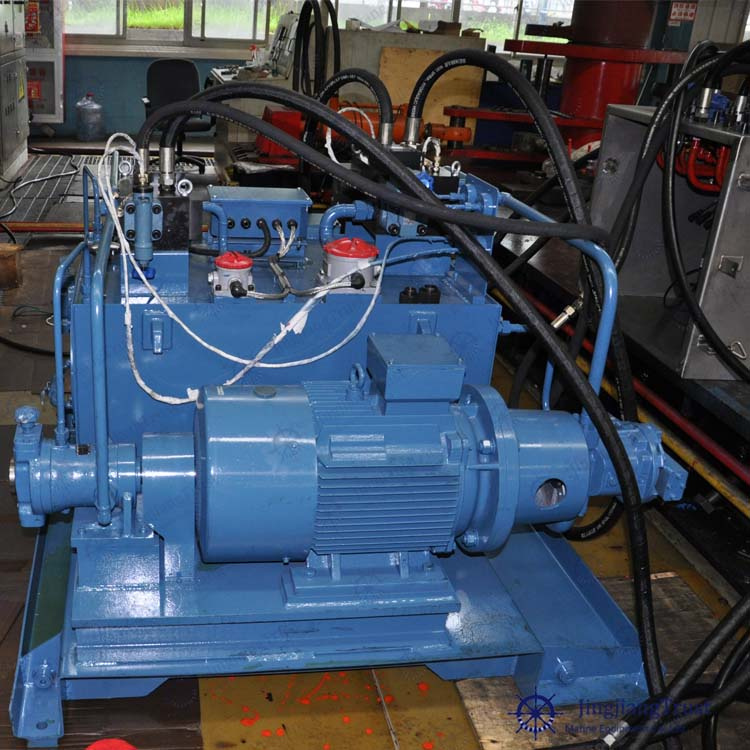

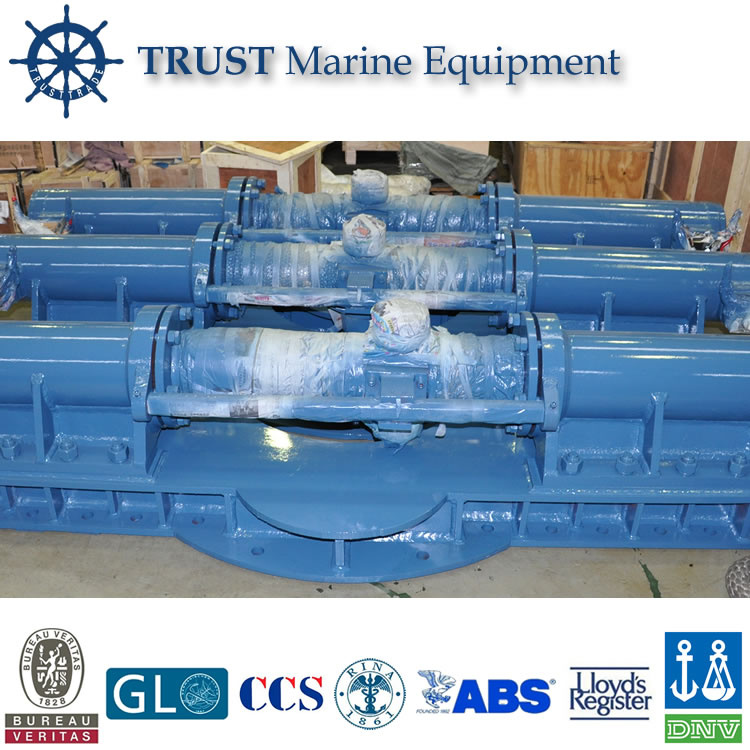

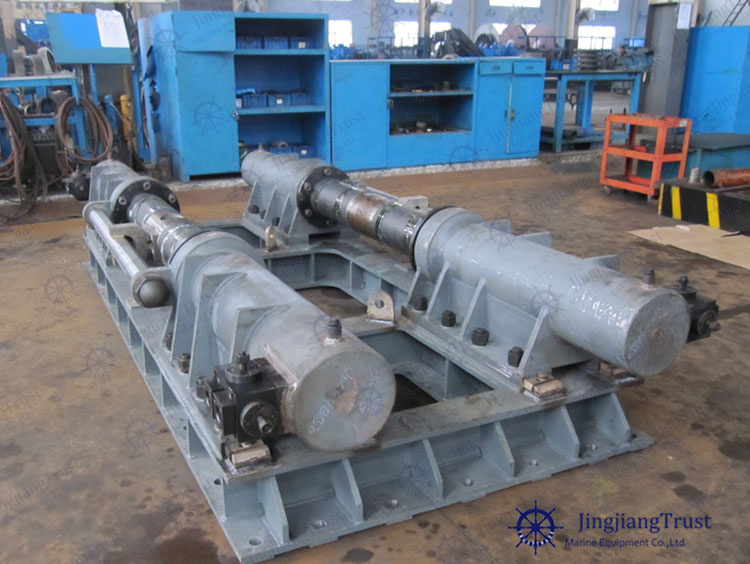

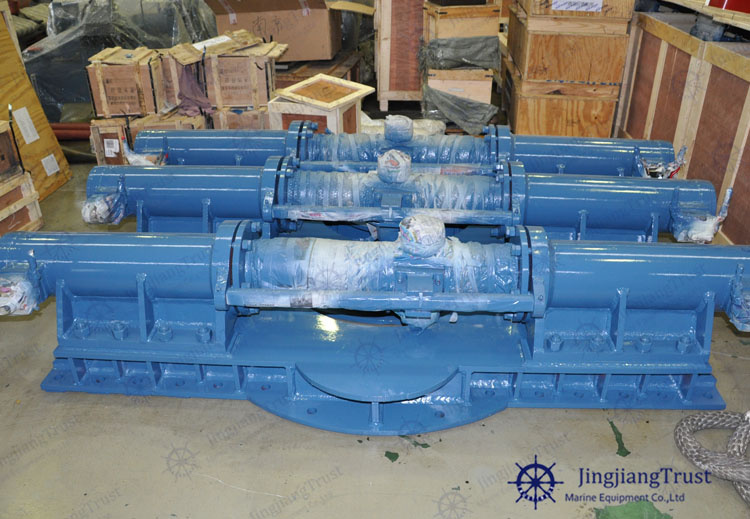

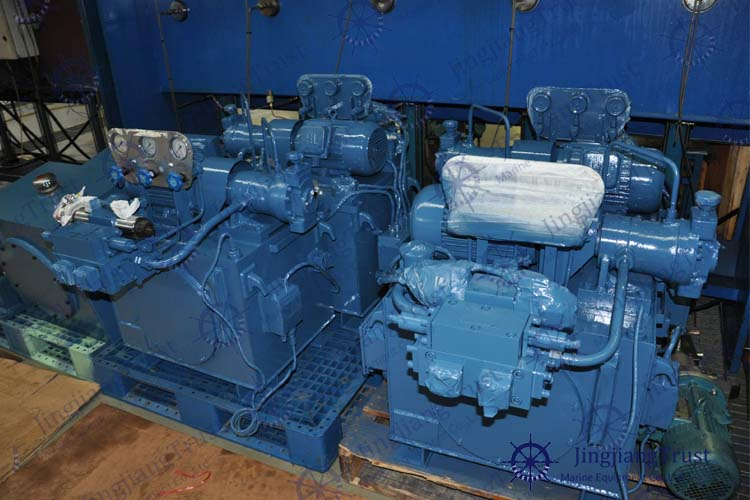

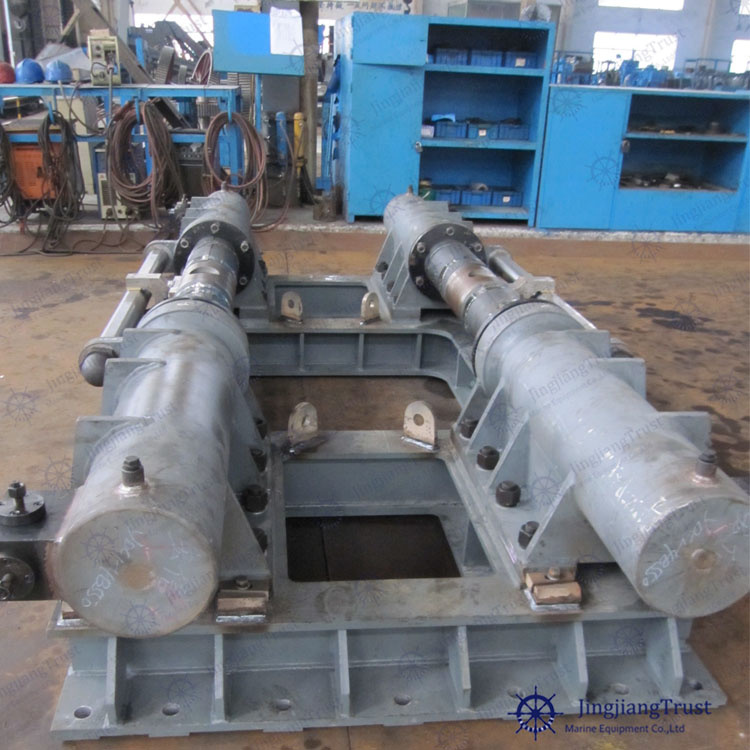

Hydraulic Ram Type Marine Steering Gear (four cylinders with twin piston and one tiller type) consists of two sets of reciprocating and fork type rudder mechanism, two sets of motor kinetic tank for oil pump, one reserve tank. Control mode, including electronic control, pump control, can be used together with any form of autopilot or follow-up pilot. To meet cunstomer's requirement, two sets of rudder mechanism, can be used together or separately. One of which fails to work, can be used separated to ensure normal work of steering control. It is widely used for ships with high safety performance such as large ship, oil tanker, liquefied-gas carrier, chemical tanker and etc.

NO.	NOMINAL TORQUE (kN.m)	A	B	C	CENTER HEIGHT H1	H2	TILLER THICKNESS h	STEERING RADIUS R	RUDDER DIA. D
1	320-400	3270	1470	3030	530	1010	500	450	≤340
2	500-630	3610	1572	3400	560	1040	560	500	≤420
3	700-800	3914	1740	3600	560	1053	740	570	≤420
4	900-1000	4300	1910	3800	560	1070	800	600	≤450

Note: the datas in table are just for reference, we could design and recommend correct model according to client's requirements, if you have no idea, just send us your ship or project information, we could help you.

Prod Model:	Steering Gear
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Nominal Torque:	10-500kn.M
Turning Time:	<28s
Turning Angle:	35 Degree
Navigation Area:	Without Limited
Drive:	Electro-Hydraulic
Control Type:	Manual Direction Valve, Electronic Control, Pump C
Rudder Stock Diameter:	300mm - 900 mm
Working Pressure:	8 MPa - 17 MPa
Design Pressure:	1.5 Kw - 20 Kw
Keywords:	Steering Gear
Type:	Steering Gears/Shaft
Standard:	Standard
Condition:	New
Certification:	BV, CE, ISO9001, CCS, CCC
