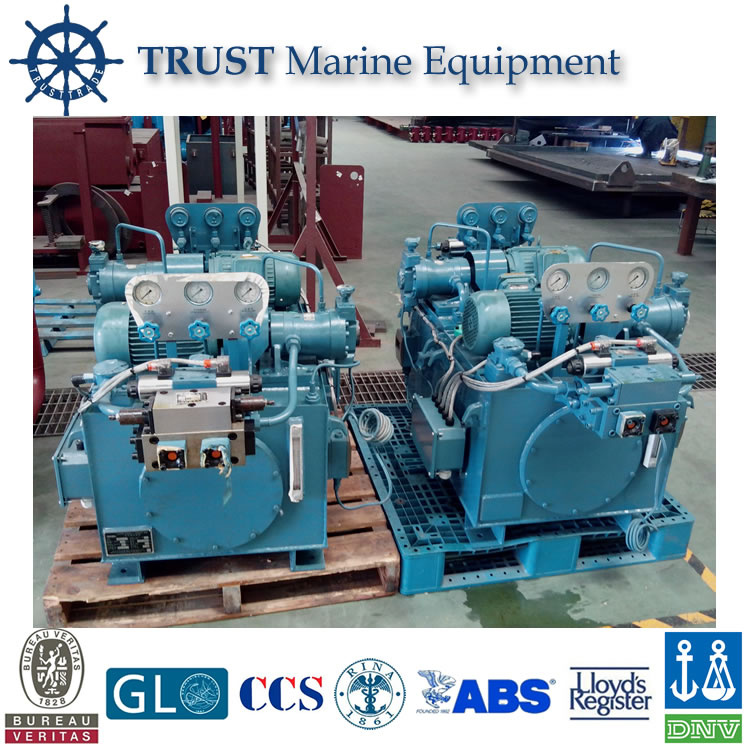

8-500kN.m Cylinder Type Marine Hydraulic Steering Gear

Product Description

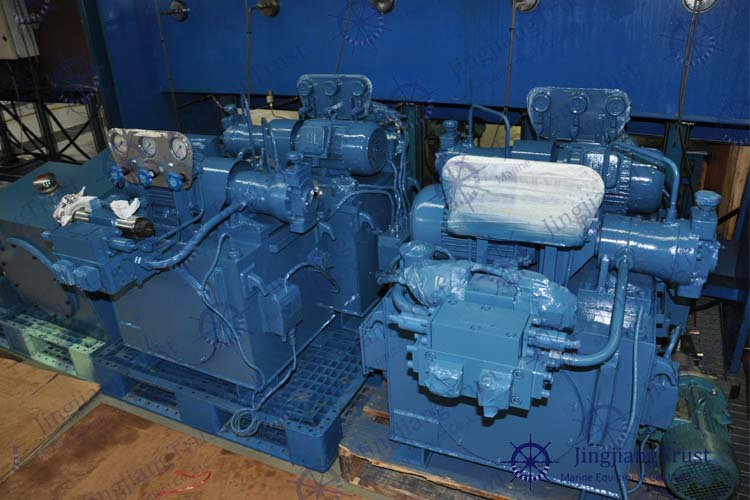

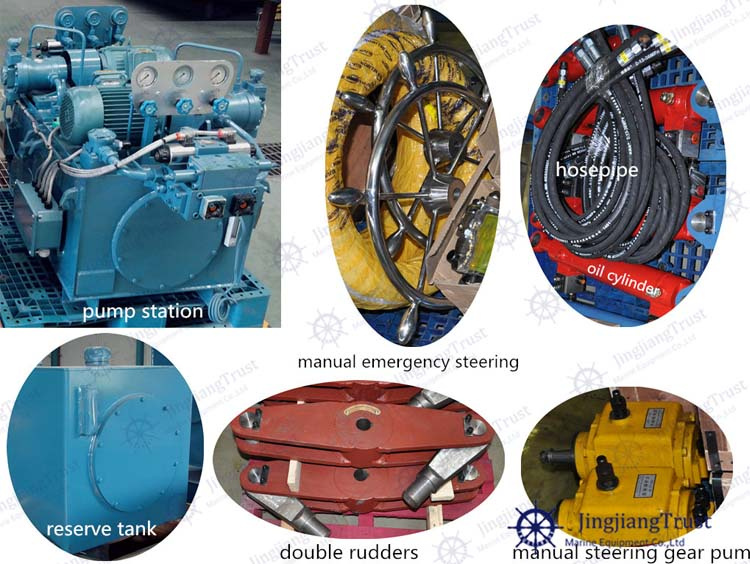

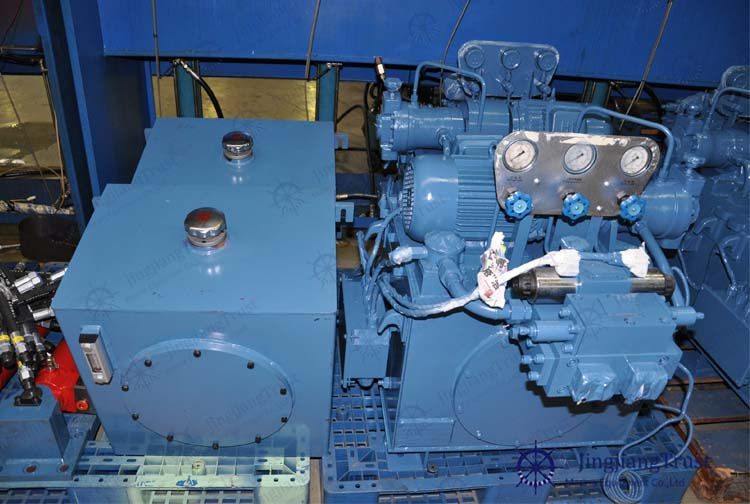

8-500kN.m Cylinder Type Marine Hydraulic Steering Gear consists of one set of rudder mechanism with two pisto type of cylinders,two oil pump power units,one reserve tank.One set of emergency pumps,pressure accumulator or DC motor pump unit is added for using in navigation zone of inland rapid flowing river,to comply with CCS rules.Control modes includes direct control of manual direction valve,electronic control,pump control,among which,electronic and pump control can be used together with any form of autopilot and follow-up pilot.

No.	Nominal Torque(kN.m)	A	B	Dia. of rudderstock (R)	Height of center (H)	Thick of rudderstock (H)	Dia. of rudderstock (d)
1	8-12	970	500	200	110	120	≤130
2	16-25	1269	700	300	110	150	≤160
3	30-40	1170	790	320	115	150	≤160
4	50-63	1420	940	420	145	180	≤180
5	75-125	1700	1080	500	145	220	≤200
6	160-250	2250	1440	650	200	400	≤280
7	300-450	3100	1800	700	260	550	≤340
8	500	3500	1900	720	260	600	≤360

Note: the datas in table are just for reference, we could design and recommend correct model according to client's requirements, if you have no idea, just send us your ship or project information, we could help you.

Prod Model:	Steering Gear
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Nominal Torque:	5-800kn.M
Dia. Of Rudderstock:	130-360
Thickness Of Rudderstock:	120-600
Nos Of Rudders:	1/2/4
Steering Gear Type:	Cylinder Type
Power Source:	Hydraulic, Electric
Application:	Ship, Boat
Certificates:	BV,Gl,ABS,Lr,Nk,CCS,Dnv,Rina
Product Name:	8-500kn.M Cylinder Type Marine Hydraulic Steering
Keywords:	Steering Gear
Type:	Steering Gears/Shaft
Standard:	Standard
Condition:	New
Material:	Iron and Steel
Certification:	BV, CE, ISO9001, CCS, CCC
