Infrared Heater! ! ! Electric Heating Spray Booth
| Price: |
US $ 6500/Piece |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T,D/P,Paypal,Western Union |
Infrared heater! ! ! Electric heating paint oven
1. Powerfrugal system
2. Auto pressure system
3. CE, CCS certificate
4. Professional install team abroad
5.1 year warranty

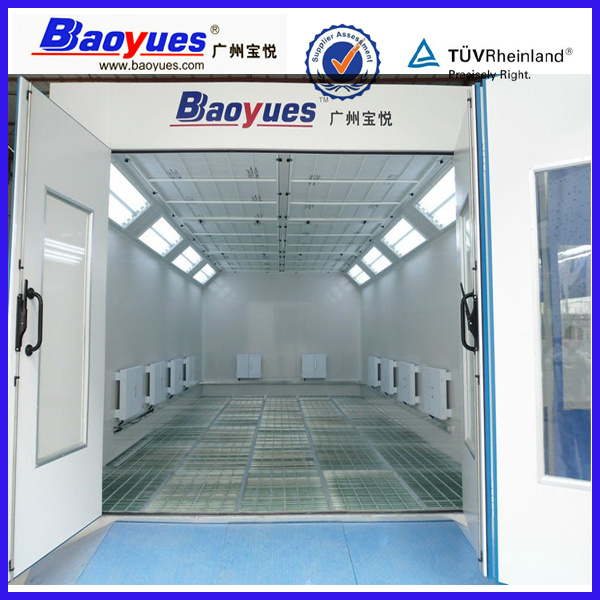

Detailed Image:
Electric heating paint ovenelectric heating paint oven
Advantages:
1. High quality car spray booth with CE ISO certifiate
2. Professional manufacturer, competitive price
3. Customized car spray booths
4. With infrared heating system, environmental, energy saving
5. Booths has sold to Australia, Germany, Nigeria, Philippine, France, United States, Egypt, Russian Federation, Kingdom of Saudi Arabia, Seychelles, Qatar, Norway, Singapore etc...
6. Popular modle
7. Pre-sales service & after sale service
Electric heating paint ovenelectric heating paint oven
Manufacturing Process:
Certificates:
Electric heating paint ovenelectric heating paint oven
|
Item |
Detail specification |
|
Inside dimension |
6900*3900*2650mm(L*W*H) |
|
Outside dimension |
7000*5050*3400mm(L*W*H) |
|
Front door |
Folding door,3 folds,3000*2600mm(W*H),without frame cover,color:blue |
|
Emergency door |
1 unit,650*1800mm(W*H),color:blue |
|
Basement |
Galvanized steel assemble, 300mm high, quadrate steel support,2rows of grills made by flat bar and twisted steel,painted,3 rows of indented plates,painted.2pcs ramps,520×2000mm(W×L)
|
|
Wallboard |
Thickness:50mm, width:1150mm, tongue and groove structure, 0.476mm colour steel with polystyrene(EPS) insulation inside, colour: white. |
|
Light |
Ceiling Lights: 8Units×4Pcs=326Pcs×36W,with electronic ballast,without side lights,Illuminate: ≥700LUX |
Generator cabinet |
Intake from side upper, exhaust from back upper,quadrate steel frame,white coated steel covered, filled with heat preservation material inside. |
Intake and exhaust system |
Inlet:2*3KWdouble-intake centrifugal fans, model:YDW4.5MI,air capacity for each fan:10500m3/h.
outlet:optional
|
Heating system |
With 10 units short wave infrared lamp heating ,3pcs/unit,1KW/pcs,total power:30KW,max temperature:80 degree |
|
Purification system |
Pre-filter, ceiling filter, exhaust fibreglass filter |
Roof |
Galvanized steel |
|
Control system |
Spray,baking,time setting,lighting switch,thermostat,power supply switch,emergency stop |
|
Total power |
40kw |
| Prod Model: |
BY-2 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Western Europe |
| Brand Name: |
Baoyues |
| Products Name: |
Electric Heating Paint Oven |
| Function: |
Car(or Furniture)Painting and Baking |
| Certificate: |
CE,CCS,SGS,TUV |
| Installation: |
Professional Team for Install Abroad |
| Warranty: |
1 Year |
| Airflow Direction: |
Fully Undershot-type |
| Heating Mode: |
Infrared Ray |
| Paint Mist Treatment: |
Dry-type |
| Certification: |
UL |
| Condition: |
New |
Baoyue started since 2011, the company specilize in the design, manufacture and sale for auto spray/backing booth, industry painting equipment, high temperature drying plant, The products with international design standard, latest manufacture technology. The engineer, factory director, manager, sales director etc all engaged in this industry more than 15 year.
As a professional manufacturer, we have rich experience, supply all kinds of good quality spray booth, prep station and car lift etc, with the certificate of CE, ISO, SGS, CCS etc. Factory located Guangzhou, Huadu district, which is modern car industry production park, have convenient transport facilities. The area for working and manufacturing more than 19, 000, staff more than 90, including the techinican team more than 9, after service team more than 10. The workshop including many cutting machine, pumting machine, bending machine, welding machine etc, with water curtain paint booth, powder coating booth, high temperature oven.
We have attended Automechanika Shanghai 2012, 2013, 2014, 2015, 2016, and Beijing exhibition 2012, 2013, 2014, 2015, with large confidence to show our spray booth.
We wish to establish the good cooperation relationship with you, not for once or twice, but for the long term cooperation, looking forward to developing together with you in the near future. The paint booth and widely used for car, bus, truck, machine, furniture and other industry, already exported to EU, Middle East, Asia, Africa, Australia etc, and serviced BMW, Honda, Audi, Nissan, Benz, Honda, Toyota, etc, as well as the air plane company, Army, and bus manufacturer, furniture manufacturer.
