Guangzhou Baoyue Electromechanical Equipment Co., Ltd. >> Electric Heating, Infrared Spray Booth (BY-2)

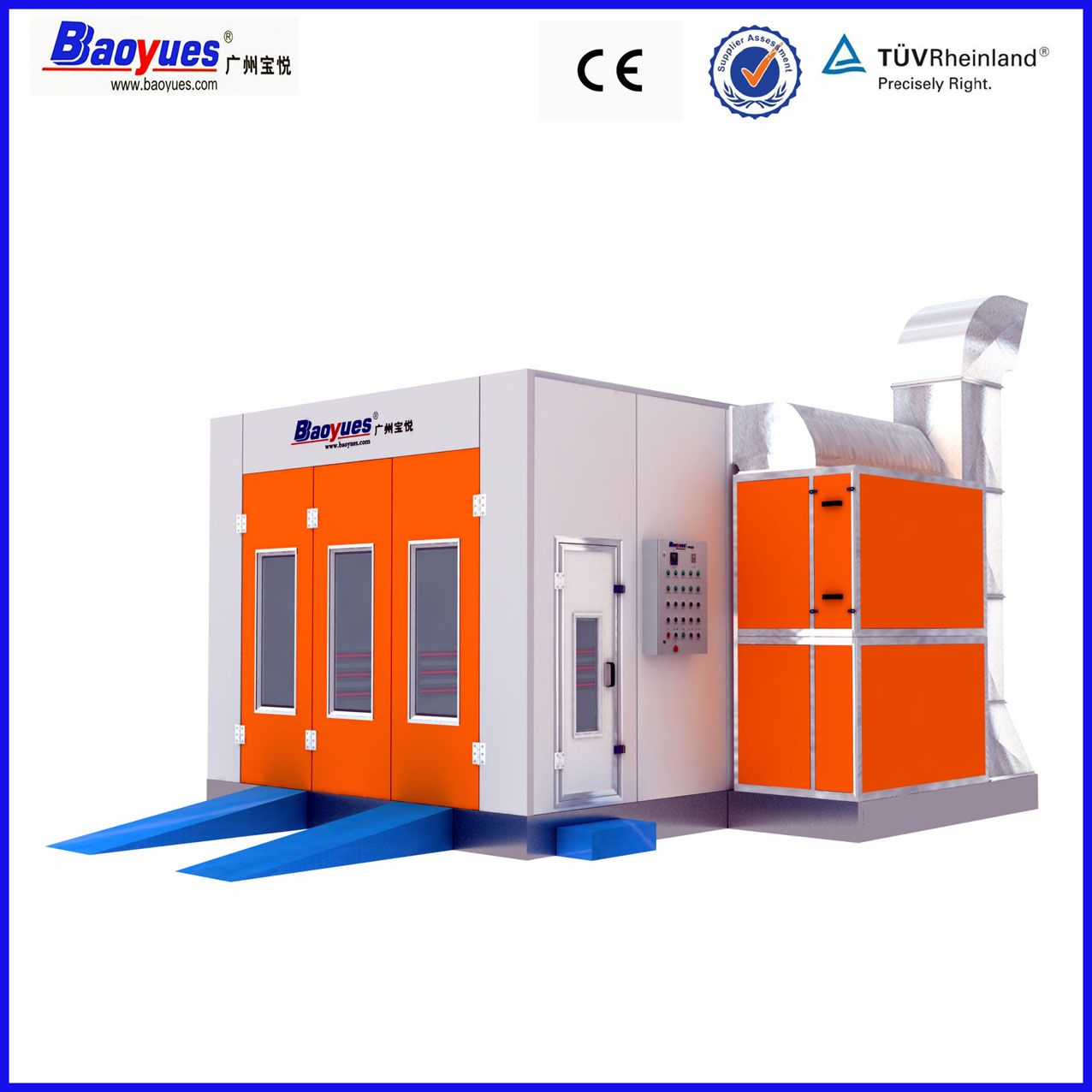

Electric Heating, Infrared Spray Booth (BY-2)

Electric Heating, Infrared Spray Booth (BY-2)
Price: US $ 6000-6500/Piece
Trade Terms: FOB,CFR,CIF
Min Order: 10/Piece
Pay Type: L/C,T/T
Prod Model: BY-2
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Western Europe
Brand Name: Baoyues
Products Name: Electric Heating,Infrared Spray Booth (by-2)
Function: Car(or Furniture)Painting and Baking
Certificate: CE,CCS,SGS,TUV
Installation: Professional Team for Install Abroad
Warranty: 1 Year
Airflow Direction: Fully Undershot-type
Heating Mode: Infrared Ray
Paint Mist Treatment: Dry-type
Certification: UL
Condition: New

Product Description

Electric heating,Infrared Spray Booth  (BY-2)
1. Powerfrugal system
2. Auto pressure system
3. CE, CCS,TUV,SGS certificates
4. Professional install team abroad
5.1 year warranty

Detailed Image:
Infrared Spray BoothInfrared Spray Booth


Advantages:
1. High quality car spray booth with CE ISO certifiate
2. Professional manufacturer, competitive price
3. Customized car spray booths
4. With infrared heating system, environmental, energy saving
5. Booths has sold to Australia, Germany, Nigeria, Philippine, France, United States, Egypt, Russian Federation, Kingdom of Saudi Arabia, Seychelles, Qatar, Norway, Singapore etc...
6. Popular modle
7. Pre-sales service & after sale service
Infrared spray booth infrared paint booth

Introduction of Guangzhou Baoyues:

Guangzhou Baoyue Electromechanical Equipment Co.,Ltd,which specilize in the design, manufacture and sale for auto spray/backing booth,industry painting equipment, high temperature drying plant,  has sucessfully exported our products to Europe, Africa, America and Russia etc.and get a positive feedback. We own the factory in Guangzhou of China, all the customer are welcomed to visit our factory. The competitive price and high quality of our products can be very helpful to your business.

Infrared spray booth Infrared spray booth
Item Detail specification
Inside dimension 6900*3900*2650mm(L*W*H)
Outside dimension 7000*5050*3400mm(L*W*H)
Front door Folding door,3 folds,3000*2600mm(W*H),without frame cover,color:blue
Emergency door 1 unit,650*1800mm(W*H),color:blue
Basement Galvanized steel assemble, 300mm high, quadrate steel support,2rows of grills made by flat bar and twisted steel,painted,3 rows of indented plates,painted.2pcs ramps,520×2000mm(W×L)

Wallboard Thickness:50mm, width:1150mm, tongue and groove structure, 0.476mm colour steel with polystyrene(EPS) insulation inside, colour: white.
Light Ceiling Lights: 8Units×4Pcs=326Pcs×36W,with electronic ballast,without side lights,Illuminate: ≥700LUX

Generator cabinet
Intake from side upper, exhaust from back upper,quadrate steel frame,white coated steel covered, filled with heat preservation material inside.

Intake and exhaust system
Inlet:2*3KWdouble-intake centrifugal fans, model:YDW4.5MI,air capacity for each fan:10500m3/h.
outlet:optional


Heating system
With 10 units short wave infrared lamp heating ,3pcs/unit,1KW/pcs,total power:30KW,max temperature:80 degree
Purification system Pre-filter, ceiling filter, exhaust fibreglass filter

Roof
Galvanized steel
Control system Spray,baking,time setting,lighting switch,thermostat,power supply switch,emergency stop
Total power 40kw

Baoyue started since 2011, the company specilize in the design, manufacture and sale for auto spray/backing booth, industry painting equipment, high temperature drying plant, The products with international design standard, latest manufacture technology. The engineer, factory director, manager, sales director etc all engaged in this industry more than 15 year.

As a professional manufacturer, we have rich experience, supply all kinds of good quality spray booth, prep station and car lift etc, with the certificate of CE, ISO, SGS, CCS etc. Factory located Guangzhou, Huadu district, which is modern car industry production park, have convenient transport facilities. The area for working and manufacturing more than 19, 000, staff more than 90, including the techinican team more than 9, after service team more than 10. The workshop including many cutting machine, pumting machine, bending machine, welding machine etc, with water curtain paint booth, powder coating booth, high temperature oven.

We have attended Automechanika Shanghai 2012, 2013, 2014, 2015, 2016, and Beijing exhibition 2012, 2013, 2014, 2015, with large confidence to show our spray booth.

We wish to establish the good cooperation relationship with you, not for once or twice, but for the long term cooperation, looking forward to developing together with you in the near future. The paint booth and widely used for car, bus, truck, machine, furniture and other industry, already exported to EU, Middle East, Asia, Africa, Australia etc, and serviced BMW, Honda, Audi, Nissan, Benz, Honda, Toyota, etc, as well as the air plane company, Army, and bus manufacturer, furniture manufacturer.
