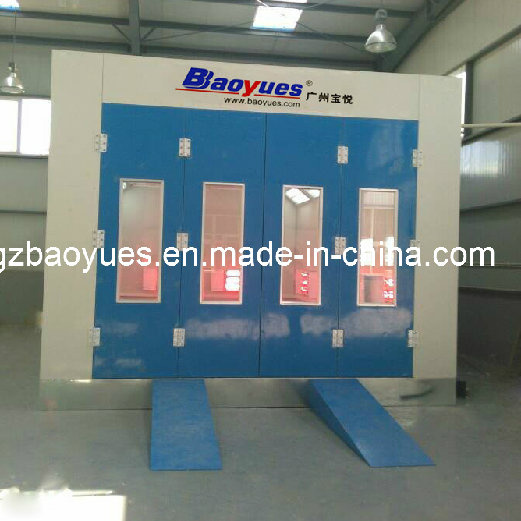

Infrared Lamp Heating for Auto Body. Car Drying and Paint
| Price: |
US $ 6500-7500set |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
1set |
| Pay Type: |
L/C,T/T |
| Prod Model: |
non-standard BY-2 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Color: |
Optional |
| Purification: |
≥95% |
| Heating: |
Infrared Lamp Heating |
| Air Capacity: |
21000m3/H |
| Noise Decibels (a): |
≤75 |
| Max Operating Temprature: |
80 |
| Voltage: |
1X220V,3X380V,50Hz |
| Free Air Speed: |
≥0.24m/S |
| Safety: |
with Pressure Emergency Door |
| Warranty: |
1 Year |
| Paint Mist Treatment: |
Dry-type |
| Certification: |
CE |
| Condition: |
New |
| Type: |
Drying Oven |
| Heating Mode: |
Infrared Lamp Heating |
| Brand: |
Baoyue |
Product Description
Clear advantage
1. Good after sale service
2. Professional design team
3. Experienced installing team
4. Abord installation service
5. Life-long technical support service
Product advantage
Short wave infrared baking features:
1. Cut down the energy cost to 75%
2. Working life is 5000-7000 hours
3. Longest cure times is 15 minutes or so
4. Penetrate the metal plate until finish baking
5. Paint cured wihtin few minutes without dust opreating more effective
6. Less maintenance time and less post processing
All these improve your efficieny and reduce cost
Company advantage
As a professional manufacturer, we have a wealth of production experience, can be very good control of the production cost and help you to lower your purchase cost
|
Inside dimension |
6900×3900×2650 mm (L×W×H) |
|
Outside dimension |
7000×5050×3400 mm(L×W×H) |
|
Front door |
F olding door, 3 folds, 3000×2600 mm(W×H), without frame cover, colour : blue. |
|
Emergency door |
1 unit, 650×1800mm (W×H), colour: white. |
|
Basement |
G alvanized steel assemble, 300mm high, quadrate steel support, 2 rows of grilles made by flat bar and twisted steel, painted , 3 rows of indented plates, painted. 2 pcs ramps, 520×2000mm(W×L) |
|
Wall Panels |
Thickness: 50mm, width:1150mm, tongue and groove structure, 0.376mm colour steel with polystyrene (EPS) insulation inside, colour: white . |
|
Light |
Ceiling Lights: 8Units ×4 Pcs= 32 Pcs × 36W, with electronic ballast, without s ide lights, illuminate ≥700LUX |
|
Generator cabinet |
Intake from side upper, exhaust from back upper, quadrate steel frame, white coated steel cover, filled with heat preservation material inside. |
|
Intake and exhaust system |
Inlet: 2× 3 KW double-intake centrifugal fans, model YDW4.5 M 1, air capacity for each fan: 1 0 500m 3 /h. |
Outlet: optional. |
|
Heating system |
With 10 units short wave infrared lamp heating, 3pcs/unit, 1KW/pcs, total power: 30KW, Max temperature: 80 °C |
Purification system |
Pre-filter, ceiling filter, exhaust fibreglass filter |
|
Roof |
Galvanized steel |
Control system |
Spraying, baking, time setting, lighting switch, thermostat, power supply switch, emergency stop, all motors are normal start. |
|
Total Power |
38KW |
Baoyue started since 2011, the company specilize in the design, manufacture and sale for auto spray/backing booth, industry painting equipment, high temperature drying plant, The products with international design standard, latest manufacture technology. The engineer, factory director, manager, sales director etc all engaged in this industry more than 15 year.
As a professional manufacturer, we have rich experience, supply all kinds of good quality spray booth, prep station and car lift etc, with the certificate of CE, ISO, SGS, CCS etc. Factory located Guangzhou, Huadu district, which is modern car industry production park, have convenient transport facilities. The area for working and manufacturing more than 19, 000, staff more than 90, including the techinican team more than 9, after service team more than 10. The workshop including many cutting machine, pumting machine, bending machine, welding machine etc, with water curtain paint booth, powder coating booth, high temperature oven.
We have attended Automechanika Shanghai 2012, 2013, 2014, 2015, 2016, and Beijing exhibition 2012, 2013, 2014, 2015, with large confidence to show our spray booth.
We wish to establish the good cooperation relationship with you, not for once or twice, but for the long term cooperation, looking forward to developing together with you in the near future. The paint booth and widely used for car, bus, truck, machine, furniture and other industry, already exported to EU, Middle East, Asia, Africa, Australia etc, and serviced BMW, Honda, Audi, Nissan, Benz, Honda, Toyota, etc, as well as the air plane company, Army, and bus manufacturer, furniture manufacturer.
