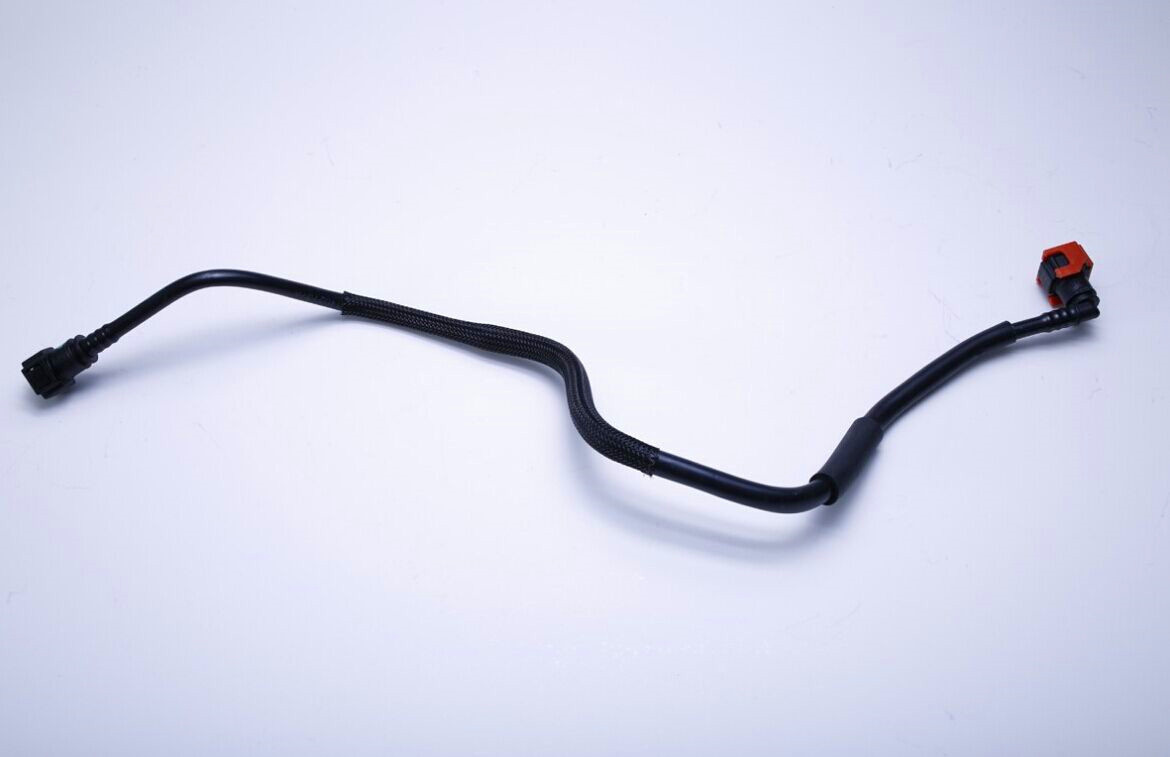

High Tensile Braided 1/8 Inch SAE 30r10 Fuel Hose

Sizes and technical parameters :


No.	I.D			O.D			W.P		B.P
	inch	mm	Tolerance (mm)	inch	mm	Tolerance   (mm)	Bar	PSI	Bar	PSI
1	1/8	3.2	±0.3	23/64	9	±0.3	20	300	80	1200
2	5/32	4	±0.3	25/64	10	±0.3	20	300	80	1200
3	3/16	4.8	±0.3	7/16	11	±0.3	20	300	80	1200
4	1/4	6.3	±0.3	1/2	12.7	±0.4	20	300	80	1200
5	5/16	7.9	±0.4	35/64	14	±0.5	20	300	80	1200
6	3/8	9.5	±0.4	5/8	16	±0.5	20	300	80	1200
7	15/32	12	±0.4	3/4	19	±0.5	20	300	80	1200
8	1/2	12.7	±0.5	25/32	20	±0.6	20	300	80	1200
9	5/8	16	±0.5	61/64	24	±0.6	10	150	40	600
10	3/4	19	±0.6	1-9/64	28.8	±0.8	10	150	40	600
11	1	25.4	±0.8	1-3/8	35	±1	10	150	40	600

Applications:
Designed specially for auto and truck fuel injection systems, use with gasoline, diesel, bio-diesel ,E-85, methanol, ethanol, ethanol extended gasoline, and gasohol fuels.
Temperature rating : -40° F to 275° F (-40° C to 135° C)
Meet SAE 30R9 specification
Note: Do not submerse in gasoline

Construction:
Tube: FKM
Buffer: ECO/ CSM
Reinforcement : Aramid Spiral
Cover:ECO/CSM
Construction:
Tube: Oil -,permeation-resistant synthetic rubber compound
Reinforcement: High tensile braided fiber
Cover:  suitable oil- ,weather-resistant synthetic rubber compound

Working Temperature:-40ºC~+100ºC, -40 ºF~ +212 ºF
Standard: SAE J 30R10
