DOT Approved SAE J1402 3/8 Inch Premium Brake Hoses

Name: DOT Approved SAE J1402 3/8 Inch Premium Brake Hoses
Brand: ibuyautoparts.com
SKU: 732931212
Availability: InStock
Rating: 4.9 (140 reviews)

Price:	US $ 0.85-1.21/Meter
Min Order:	4000/Meter
Pay Type:	L/C,T/T,D/P,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

DOT approved SAE J1402 3/8 inch premium brake hoses

Applications of premium brake hoses :
Designed for conveying air in truck and trailer brake systems.Truck and trailer manufacturers,aftermarket packagers and wholesaters use this hose.It is certified to meet SAEJ1402 requirements.

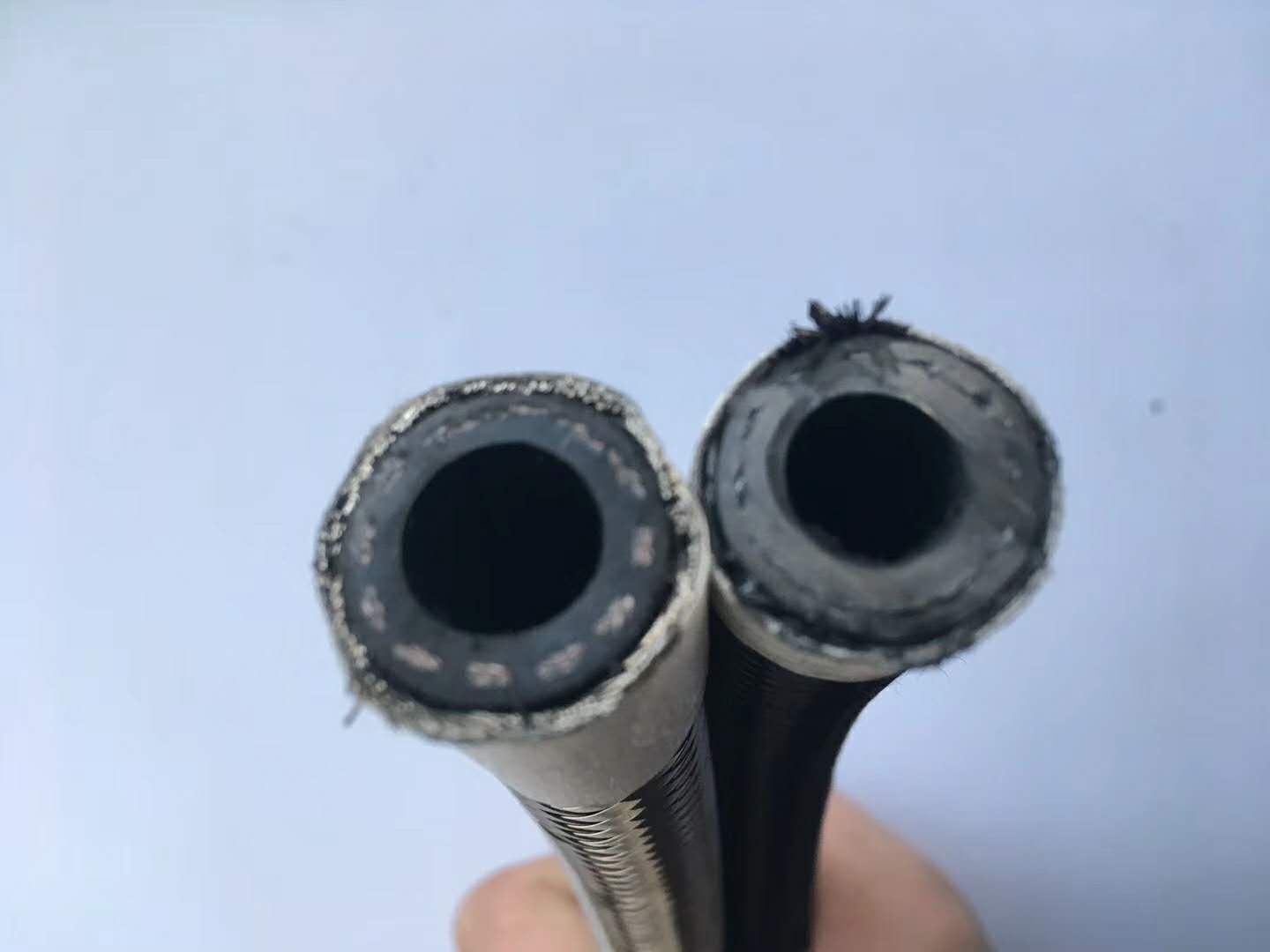

Construction of premium brake hoses :
Tube:excellent ozone resistant synthetic rubber
Reinforcement: high tensile braid of textiles
Cover: abrasion - and weather - resistant compounds
Temperature range: -40~ +212 F

Specifications of premium brake hoses :

ITEM NO	I.D		O.D	W.P		B.P		Weight
ITEM NO	inch	mm	mm	PSI	Bar	PSI	Bar	Ibs./ft	Kg/m
-4	3/16	4.8	12	225	15.5	900	62	0.082	0.122
-5	1/4	6.4	13.6	225	15.5	900	62	0.097	0.145
-6	3/8	7.9	15.1	225	15.5	900	62	0.110	0.166
-7	13/32	10.3	18.3	225	15.5	900	62	0.157	0.230
-8	7/16	11.9	19.8	225	15.5	900	62	0.173	0.257
-10	1/2	12.7	20.5	225	15.5	900	62	0.162	0.250
-12	5/8	15.9	26.2	225	15.5	900	62	0.287	0.423

Product Test and Certification
The factory inspection:
100% Pressure Inspection
100% Throughput Inspection
100% Pass and Stop Inspection
100% Length,Surface Inspection
100% Internal Gassing clean

Prod Model:	GL0206002
Type:	Brake System
Material:	Rubber
Position:	Front
Certification:	DOT

Qingdao Folan Trade Co., Ltd was found in 2016. Since 2008, our factory are exported and supplied in the fitting of engine Parts. We have two foundries and 20-30 fully automatic CNC machining centers in order to meet our customer's production capacity.

Such as automotive coolant/fuel hose assembly, automotive air-condition hose assembly, automotive power steering hose assembly, automotive turbo charger hose assembly, automotive sunroof drain hose and automotive molding press hose assembly and other series over 2000 kinds of specifications. Its main customers are: FAW Volkswagen, DFCV, SAIC Volkswagen, Nissan(China), JAC group, Volkswagen AG, Italy FIAT, etc., integrated product market share up to 30%.
