3/8 Inch DIN73379 2b Flexible Oil Rubber Fuel Hose

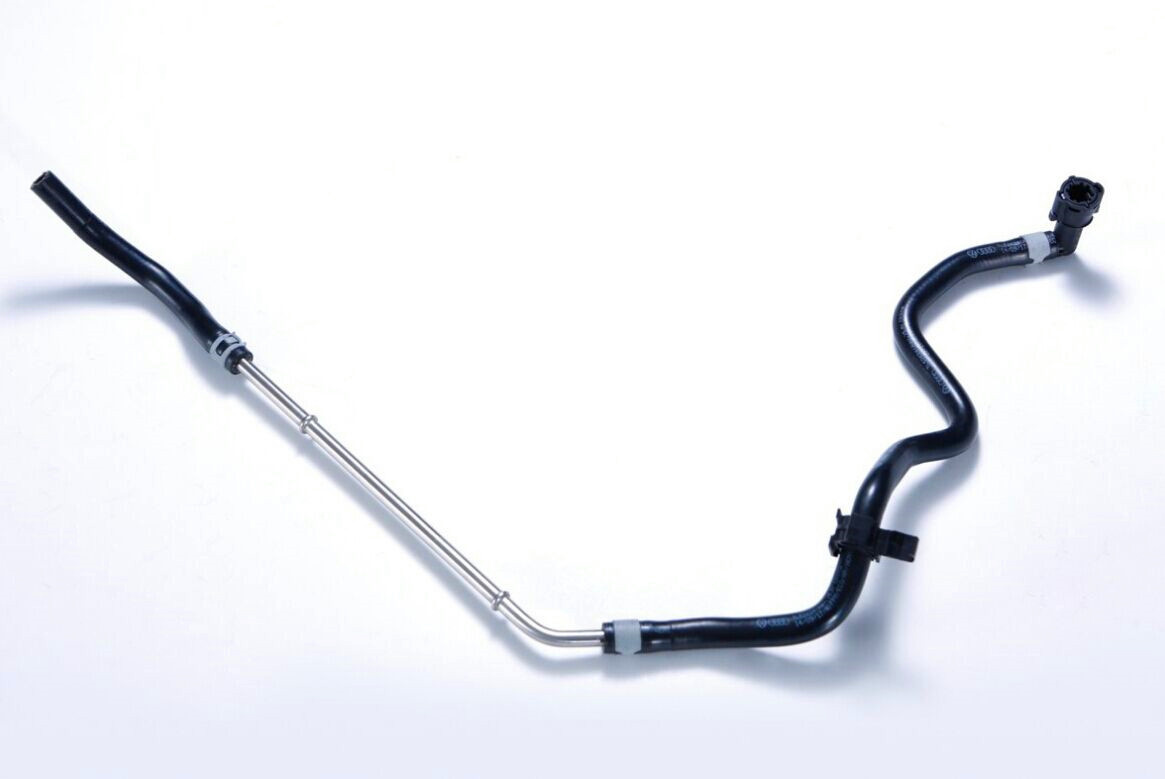

Name: 3/8 Inch DIN73379 2b Flexible Oil Rubber Fuel Hose
Brand: ibuyautoparts.com
SKU: 732693822
Availability: InStock
Rating: 4.4 (95 reviews)

Price:	US $ 3.26-4.68/Set
Min Order:	5000/Set
Pay Type:	L/C,D/P,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

3/8 inch din73379 2b flexible oil rubber fuel hose
Applications :
Used as oil return line transporting oil, gasoline, diesel, lubricants and other mineral oil on the condition of positive pressure .

Construction:
Tube: Oil-resistant synthetic rubber with low permeability.
Outer Shield: High tensile braided fiber with low shrink . black or gray.
Temperature Range:-30°C~+110°C  , -34 ºF~ +212 ºF
Standard:DIN73379 2B

Sizes and Technical Parameters

No	I.D			O.D			W.P			B.P
No	inch	mm	Tolerance (mm)	inch	mm	Tolerance (mm)	Bar	PSI	Bar		PSI
1	1/8	3.2	±0.3	23/64	9.0	±0.3	10	145	30		435
2	9/64	3.5	±0.3	19/64	7.5	±0.3	10	145	30		435
3	5/32	4	±0.3	23/64	9.0	±0.3	10	145	30		435
4	11/64	4.5	±0.3	3/8	9.5	±0.4	10	145	30		435
5	3/16	5	±0.3	25/64	10	±0.4	10	145	30		435
6	1/4	6	±0.3	7/16	11	±0.4	10	145	30		435
7	9/32	7	±0.3	15/32	12	±0.4	10	145	30		435
8	19/64	7.5	±0.4	1/2	12.5	±0.5	10	145	30		435
9	5/16	8	±0.4	33/64	13	±0.5	10	145	30		435
10	3/8	9.5	±0.4	39/64	15.5	±0.5	10	145	30		435
11	25/64	10	±0.5	5/8	16	±0.6	10	145	30		435
12	15/32	12	±0.5	23/32	18	±0.6	10	145	30		435
13	35/64	14	±0.5	25/32	20	±0.6	10	145	30		435

Product use for truck brake system

Rubber Hose 1/2 Inch Air Brake Hose with DOT Approved

Prod Model:	GLFH013008
Fuel:	Gasoline
Body Material:	Aluminium
Component:	Fuel Injection Device
Certification:	CE
Stroke:	6 Stroke
Cylinder:	Multi-cylinder

Qingdao Folan Trade Co., Ltd was found in 2016. Since 2008, our factory are exported and supplied in the fitting of engine Parts. We have two foundries and 20-30 fully automatic CNC machining centers in order to meet our customer's production capacity.

Such as automotive coolant/fuel hose assembly, automotive air-condition hose assembly, automotive power steering hose assembly, automotive turbo charger hose assembly, automotive sunroof drain hose and automotive molding press hose assembly and other series over 2000 kinds of specifications. Its main customers are: FAW Volkswagen, DFCV, SAIC Volkswagen, Nissan(China), JAC group, Volkswagen AG, Italy FIAT, etc., integrated product market share up to 30%.
