Product Description
Automobile Scissor Lift
Model: JZJ-MAX-8850

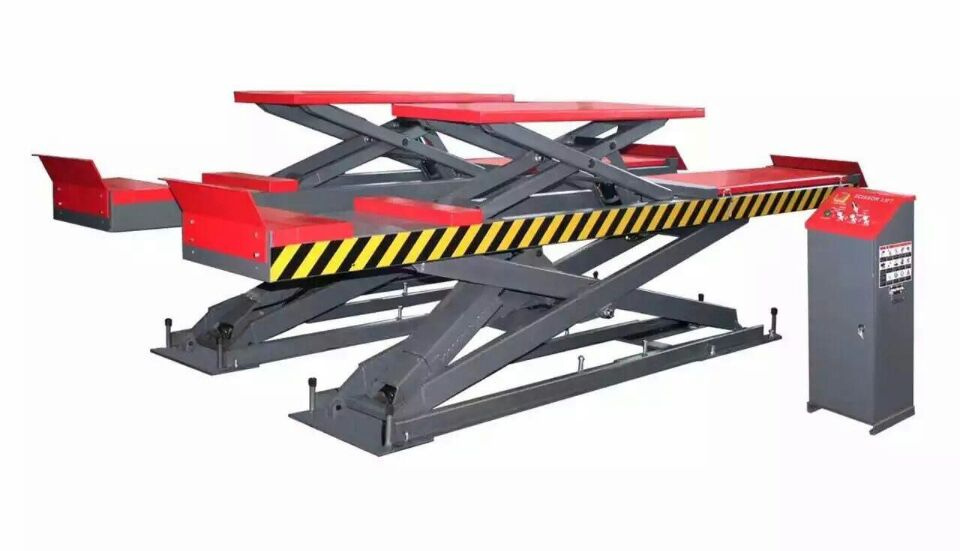

Product Picture

Feature
1. Option for in-ground and under-ground installation.
2. With jack lifting device of 450mm lifting height.
3. The angle plate is adjustable.
4. Removable front baffle.
5. Aluminum shell motor for overheat prevent.
6. Operating control system with 24V safety voltage.
7. With 24V limit switch.
8. Auto safety device during lifting to ensure the safety of vehicle lifting.
9. Track synchronous device in lifting process to ensure the vehicle without overturning possibility.
10. Hydraulic system with overload protection to prevent the pressure exceeds the maximum safe limits.
11. The vehicles option falls to the ground manually when power off(optional).
12. Pass 115% dynamic and 150% static loading test.

Technical Data

Lifting capacity	5000kg/4000kg
Jack capacity	3000kg
Lifting height	2160mm
Jack height	450mm
Minimum height	300mm/330mm/360mm
Runway width	600mm
Runway length	5000mm/4800mm/4500mm/4200mm
Oil pressure	20MPa
Lifting time	60s
Air pressure	0.6-0.8Mpa

Prod Model:	JZJ-MAX-8850
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Type:	Double Cylinder Hydraulic Lift
Lifting Capacity:	4T
Certification:	ISO
Design:	Scissor
Brand:	Jingzhongjing/Jzj
