Good Quality Metal Honeycomb Catalyst for Car/Motorcycle

Name: Good Quality Metal Honeycomb Catalyst for Car/Motorcycle
Brand: ibuyautoparts.com
SKU: 730506285
Availability: InStock
Rating: 4.8 (78 reviews)

Price:	US $ 6-82/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	10/Piece
Pay Type:	L/C,T/T,Western Union

Contact Supplier

Showroom Product Company Profile

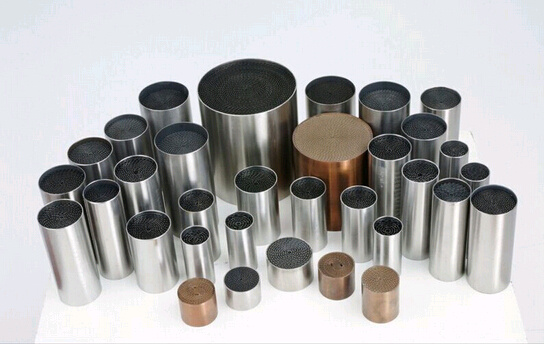

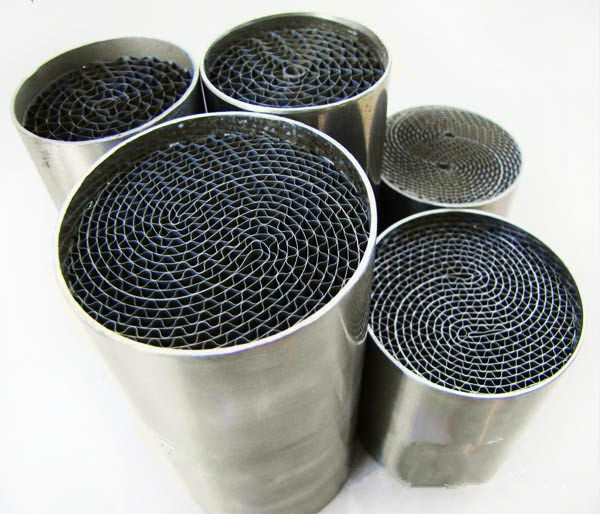

Metal Honeycomb Substrate has the advantages of fast burning, small volume, high mechanical strength, prominent heat-resistance, etc. It is widely used in exhaust gas purification, especially for motorbike and vehicle. We can make 100CPSI, 200CPSI, 300CPSI, 400CPSI AND 600CPSI honeycomb metallic substrate in various shapes, such as round, oval, racetrack and other customized shapes. Honeycomb metal substrate for precious metal coating. It is mainly used for Auto and Motorcycle exhaust system.

Size: Dia 110mm~155mm, Hight: 40mm~150mm, Cell: 100~600 cpsi
Like: Dia 110*110(Inner hight 80)mm/ 200 cpsi
Dia 120*130(Inner hight120)mm/ 400 cpsi

Applications: For exhaust system of auto engine, like Honda, Suzuki, Toyato, etc. It transforms CO, HC and NOx to CO2, H2O and N2

Features:
*Stainless steel shell,
*Foil material is OCr21Al6, foil thickness is 0.1mm
*Cell pieces per square inch: 100, 200, 300 and 400cpsi
*Shape and dimension is customized according to drawing provided

	Diameter (mm)	Hight(mm)	Inner Higtht ( mm)	Length (mm)	Width (mm)	Cell/ cpsi
	110	110	80			200
	90	95	90			300S/400S
	100	100	90			400S
Size	120	130	120			400S
	100	120	110			400 three holes
	100	102	100			300
	110	150	105			600 three holes
	155	75	75			400S

		40	30	130	90	300/400 (two holes)
		102	92	150	88	400(two holes)

Mark	Above is part of our metal catalysts, more sizes and Spec. can be customized to your engine
Our Certifications	SGS, ISO9001:2008, ISO14001, TUV, CARB

Prod Model:	MHS
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Material:	SS304, SS316
Application:	as Catalyst Used in Automobile/Motorcycle
Cell:	100-600cpsi
Thickness(mm):	0.04-0.1
Width(mm):	10-250
Max Working Temperature:	1100°c
Max Service Temperature:	1250°c
Body Material:	Steel
Discharge Standard:	Euro V
Certification:	TS16949
Component:	Catalytic Converter
