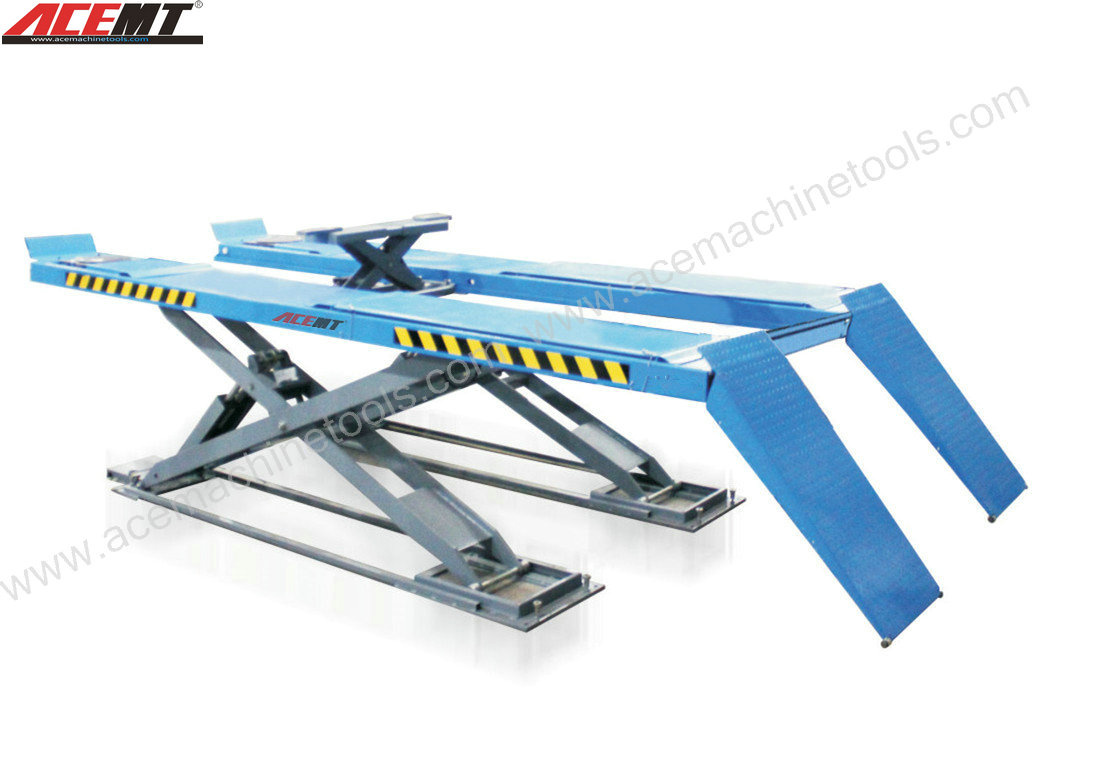

Full Rise Scissor Lift (ACESL1742/1842)

Full Rise Scissor Lift (ACESL1742/1842)
Price: US $ 1000-2000/Piece
Trade Terms: FOB,CFR,CIF
Min Order: 1/Piece
Pay Type: L/C,T/T,D/P
Contact Supplier
Showroom Product Company Profile


FEATURES:
Super low ptofile design and perfect for sutface mounted.
The two-cylinder structure makes the minimum height of 240mm.
Idea for wheel alignment,body service and other repair work.
Single platform leveling system makes leveling operation easier and ensures the synchronization.
With high quality anti-surge valve and ltalian ball valve.
The mechanical safety lock automatically engaged when rising.
24V control voltage and 500mm safety height buzzer guard against unexpected hurt or injury.
It has been proofed by dynamic test with 115% of rated capacity and static test with 150% of rated capacity .
TECHNICAL SPECIFICATION:


Rating Capacity 		3500kg/4000kg
Runway length4200/4500mm
Runway Width635/635mm
Central Jack Raised Height450mm
max. Lifting height1700/1700mm
Min. height190/190mm
Lifting time60s
Ack capacity2500kg
Central jack raised height450mm
Motor power2.2kw
Air supply6~8Kg/cm2
Power Supply380V/415V  3phase
Weight2167/2277kg
Packing Size4600/4900*650*700
Prod Model: ACESL1742/1842
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Lifting Height: 1800/2000mm
Overall Height: 2138/2368mm
Type: Double Cylinder Hydraulic Lift
Lifting Capacity: 4T
Certification: CE
Design: Scissor
ACE MACHINE TOOLS Co., Ltd, is a specialized exporter and manufacturer of machine tools and accessories with a long history.

Our mechanical products cover more than 80 kinds including lathe, milling machine, drilling machine, grinding machine, power press, hydraulic guillotine, hydraulic press brake, CNC & automotive machines and so on.

Our customers are widespread in more than 30 countries including U. S. A., Germany, Spain, France, England, Greece, Finland, Norway, Canada, south America, Middle East, Australia, Africa and southeast Asia etc.

Our principle to all the customers is high quality and good service. We have quality control team who will carefully inspect every machine in workshop before packing.

Welcome you to visit our website and contact us. We will give you quick response upon any of your need.
