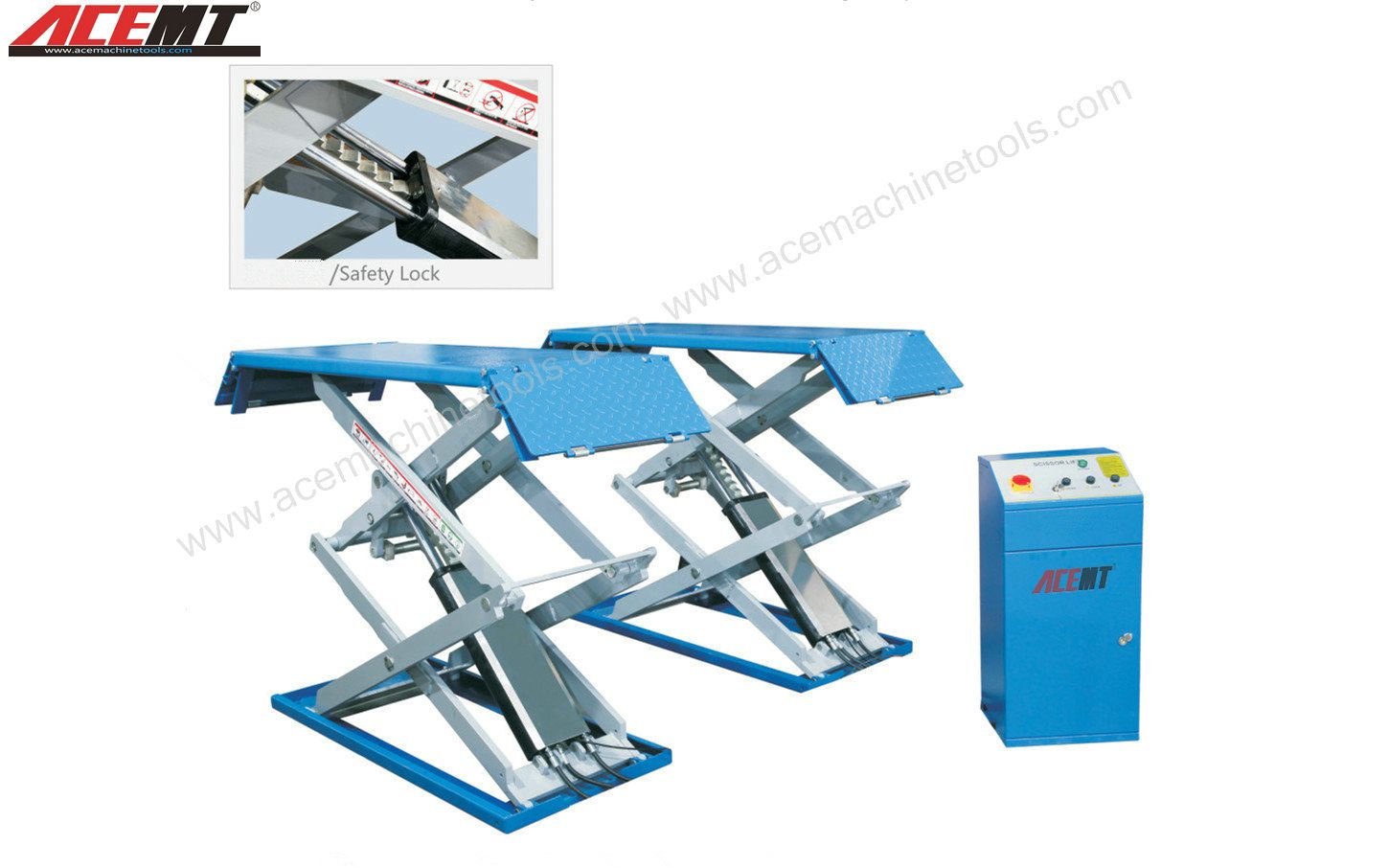

Full Rise Scissor Lift, Ground (ACESL110)

Full Rise Scissor Lift, Ground (ACESL110)
Price: US $ 1000-2000/Piece
Trade Terms: FOB,CFR,CIF
Min Order: 1/Piece
Pay Type: L/C,T/T,D/P

 Full Rise Scissor Lift ,Ground (ACESL110)

FEATURES:
Ground mounting.
4-cylinder structure, 110mm minimum height.
Antiskid platform, aluminum motor prevents overheat.
24V safety control system.
24V height limit switch included optional.
Equipment down to the ground 500mm,the control box signal device alarm,ensured the safety of operator and surrounding personnel optional.
Platforms extension for lifting long vehicles.
Pneumatic dontrol lock device.
115% dynamic and 150% static loading test passed.
CE approved.
TECHNICAL SPECIFICATION:

Lifting Capacity
3000kg
Lifting Height1830mm
Minimum Height110mm
Lifting Time50s
Overall Length for Platform1475-1975mm
Overall Width for Platform660mm
Motor Power2.2kw
Power Supply220V/380V
Oil Pressure20Mpa
Air Supply Pressure6-8bar
Weight1045kg
Packing Size1620*680*340+560*450*1150mm
Prod Model: ACESL110
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Liftting Capacity: 3000kg
Lifting Height: 1830mm
Min. Height: 110mm
Type: Double Cylinder Hydraulic Lift
Lifting Capacity: 3T
Certification: CE
Design: Scissor
