ACE Machine Tools Co., Ltd. >> Full Rise Scissor Lift, in-Ground Mounted (ACESL330)

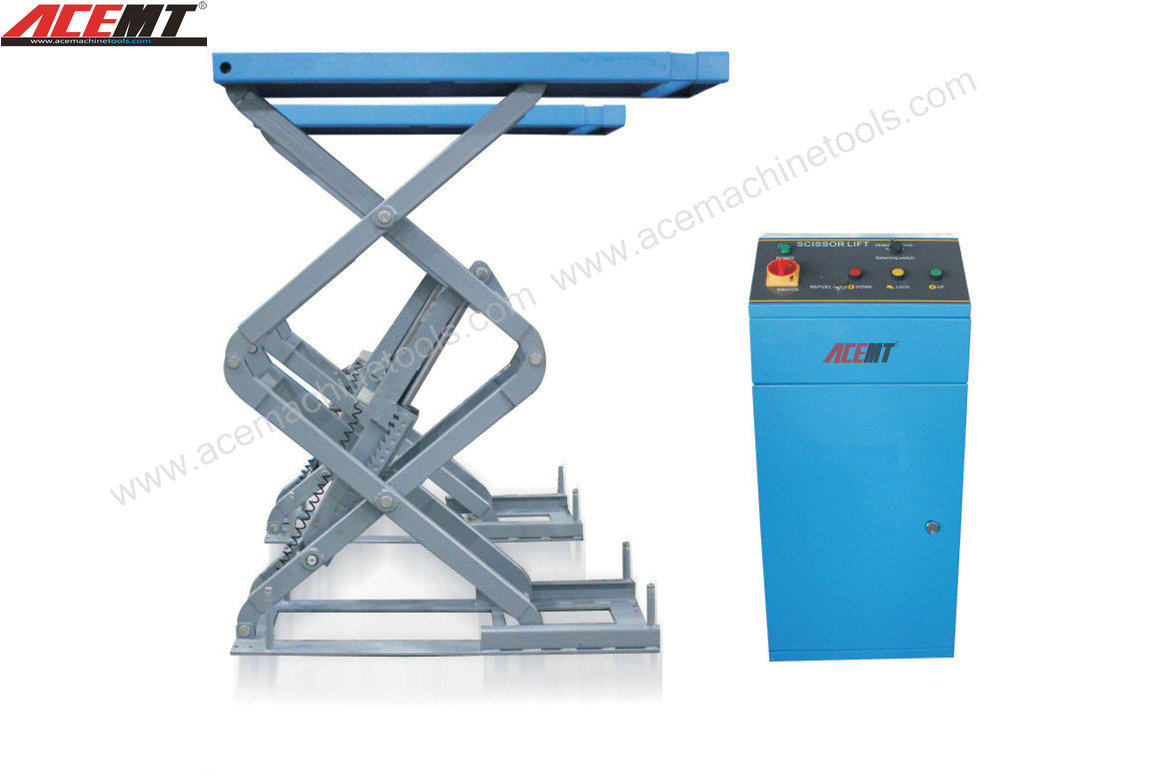

Full Rise Scissor Lift, in-Ground Mounted (ACESL330)

Full Rise Scissor Lift, in-Ground Mounted (ACESL330)
Price: US $ 1000-2000/Piece
Trade Terms: FOB,CFR,CIF
Min Order: 1/Piece
Pay Type: L/C,T/T,D/P

Full Rise Scissor Lift,In-Ground Mounted(ACESL330)
FEATURES:
In- ground mounting.
2-cylinders structure,330mm under trench installation.
Aluminum motor prevents overheat.
Safety signal when lowering from 500mm above ground.
24V safety control system.
24V height limit switch included.
Pneumatic control lock device.
Platforms can extension for different long vehicles.
115% dynamic and 150% static loading test passed.
CE approved.
TECHNICAL SPECIFICATION:

Lifting Capacity
3000kg
Lifting Height2030mm
Minimum Height330mm
Lifting Time55-60s
Overall Length for Platform1500-1800mm
Overall Width for Platform550mm
Width Between Platform910mm
Motor Power2.2kw
Power Supply220V/380V
Oil Pressure20Mpa
Air Supply Pressure6-8bar
Weight868kg
Packing Size1600*600*780+560*450*1150mm






Prod Model: ACESL330
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Liftting Capacity: 3000kg
Lifting Height: 2030mm
Min. Height: 330mm
Type: Double Cylinder Hydraulic Lift
Lifting Capacity: 3T
Certification: CE
Design: Scissor
ACE MACHINE TOOLS Co., Ltd, is a specialized exporter and manufacturer of machine tools and accessories with a long history.

Our mechanical products cover more than 80 kinds including lathe, milling machine, drilling machine, grinding machine, power press, hydraulic guillotine, hydraulic press brake, CNC & automotive machines and so on.

Our customers are widespread in more than 30 countries including U. S. A., Germany, Spain, France, England, Greece, Finland, Norway, Canada, south America, Middle East, Australia, Africa and southeast Asia etc.

Our principle to all the customers is high quality and good service. We have quality control team who will carefully inspect every machine in workshop before packing.

Welcome you to visit our website and contact us. We will give you quick response upon any of your need.
