DOT Approved SAE J1401 1/8 Inch Premium Brake Hoses

Name: DOT Approved SAE J1401 1/8 Inch Premium Brake Hoses
Brand: ibuyautoparts.com
SKU: 732930952
Availability: InStock
Rating: 4.7 (118 reviews)

Price:	US $ 0.85-1.21/Meter
Min Order:	4000/Meter
Pay Type:	L/C,T/T,D/P,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

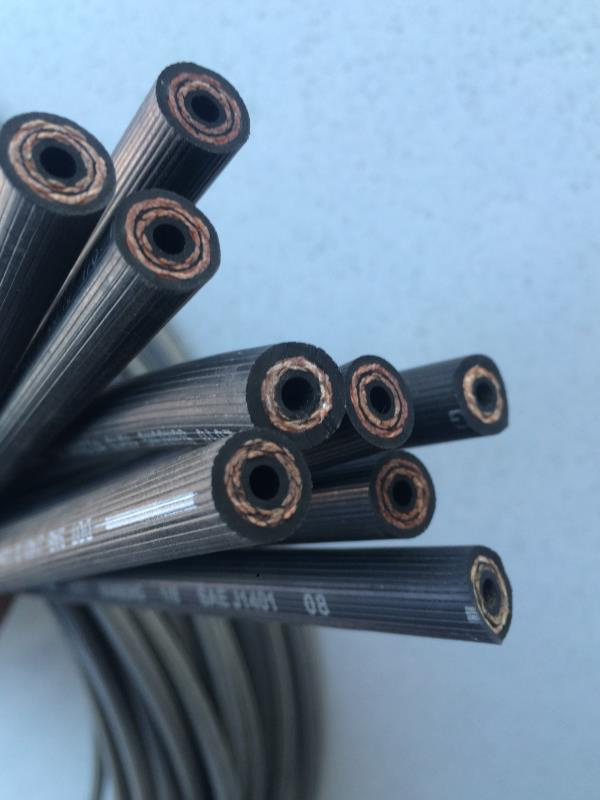

SAE J1401 1/8 inch hydraulic brake hose for car
Product Description
Application
A flexible conduit manufactured for use in a brake system to transmit and contain the fluid pressure medium used to apply force to the vehicle's brakes.

Construction:
Tube:Special rubber formula with perfect brake fluid compatibility
Reinforcement: High tensile braided fiber.
Cover: Black weather-,aging-resistant synthetic rubber
Working Temperature:-40ºC~+120ºC, -40 ºF~ +248ºF
Standard: SAE J1401

Size and technical parameters:

No.	I.D			O.D			W.P		B.P
No.	inch	mm	Tolerance (mm)	inch	mm	Tolerance (mm)	Bar	PSI	Bar	PSI
1	1/8	3.2	±0.2	13/32	10.5	±0.3	100	1450	490	7000

Product Test and Certification
The factory inspection:
100% Pressure Inspection
100% Throughput Inspection
100% Pass and Stop Inspection
100% Length,Surface Inspection
100% Internal Gassing clean

Prod Model:	GL180206001
Type:	Brake System
Material:	Rubber
Position:	Front
Certification:	DOT

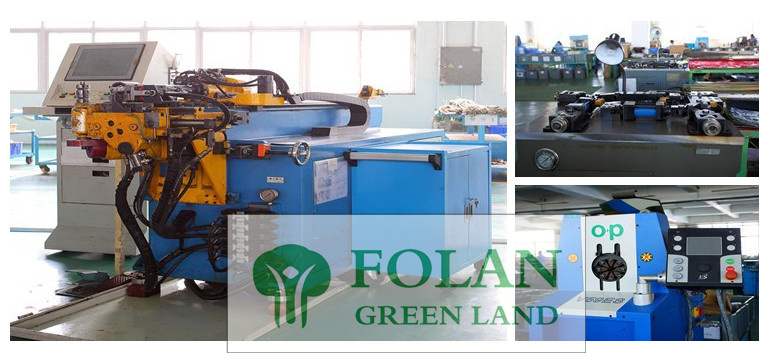

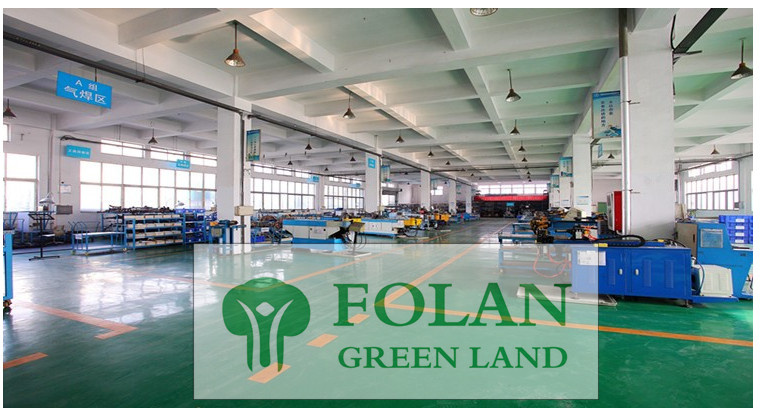

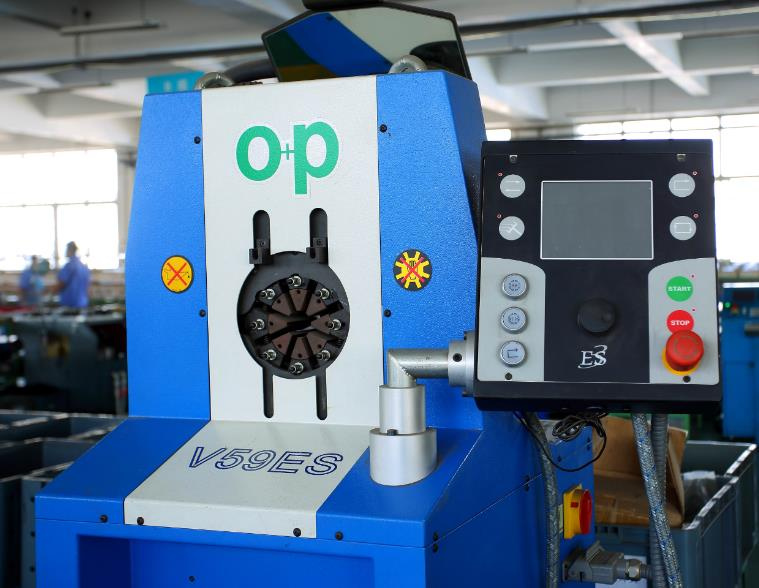

Qingdao Folan Trade Co., Ltd was found in 2016. Since 2008, our factory are exported and supplied in the fitting of engine Parts. We have two foundries and 20-30 fully automatic CNC machining centers in order to meet our customer's production capacity.

Such as automotive coolant/fuel hose assembly, automotive air-condition hose assembly, automotive power steering hose assembly, automotive turbo charger hose assembly, automotive sunroof drain hose and automotive molding press hose assembly and other series over 2000 kinds of specifications. Its main customers are: FAW Volkswagen, DFCV, SAIC Volkswagen, Nissan(China), JAC group, Volkswagen AG, Italy FIAT, etc., integrated product market share up to 30%.
