Cordierite Honeycomb Ceramic Substrate for Car Exhaust System

Name: Cordierite Honeycomb Ceramic Substrate for Car Exhaust System
Brand: ibuyautoparts.com
SKU: 737258915
Availability: InStock
Rating: 4.4 (30 reviews)

Price:	US $ 25-186/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	100/Piece
Pay Type:	L/C,T/T,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

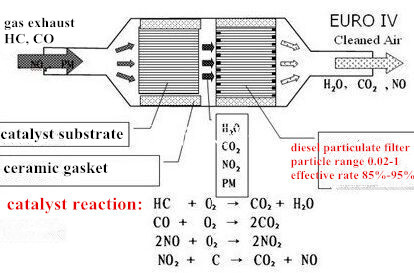

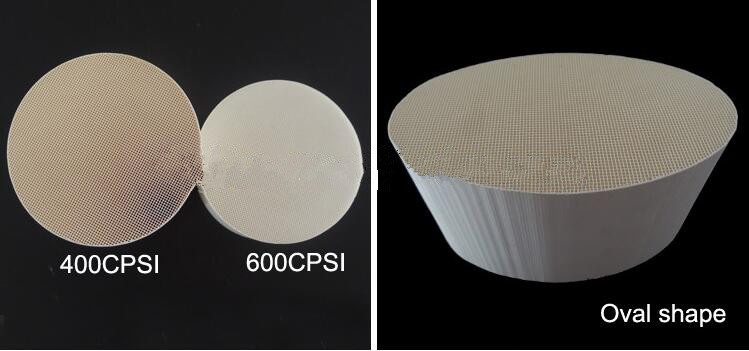

Honeycomb ceramic substrate is made of cordierite, and it is used for car catalytic converter. We can supply both ceramic element coated with noble metals of Pt, Pd, Rh and ceramic element without noble metals. The honeycomb ceramic substrate have a very competive substrates. We can produce 100CPSI, 200CPSI, 400CPSI, 600CPSI can be in the shape of round, racetrack and ovral. Specification can be customerlized as per customers' requirement. It can be coated with the noble metal according to customers' emission standards: Euro II, EuroIII and EuroIV and so on.

Bore wall is thin, the high specific surface area, high strength, low thermal expansion coefficient, good thermal shock resistance and thermal shock resistance, have a good match to the active ingredient and various catalyst. It is widely used in automobile exhaust purification catalyst carrier. It is also suitable for automotive vehicle exhaust purifiers (European standard) supporting.

Items		Parameters
Cordierite crystal phase		≥90%
Coefficient of Thermal Expansion(20-800Degree C)		≤1.2×10-6/Degree C
Thermal Stability(20-650Degree C)		3 times
Soften Temperature		≥1400 Degree C
Water Absorption		23-25%
Bulk Density		0.40-0.50Kg/L
Tolerance of outside dimensions		±1%
Compression Strength	Lengthways	≥15MPa
	Horizontal	≥3MPa
Wall thickness	100 CPSI	0.43 mm
	200 CPSI	0.32 mm
	300 CPSI	0.30 mm
	400 CPSI	0.18 mm
	600 CPSI	0.15 mm

Specification	Shape	Mesh	Material
Φ 93x100	Cylinder	400 cpsi	Cordierite
Φ 106x100	Cylinder	400 cpsi	Cordierite
Φ 106x130	Cylinder	400 cpsi	Cordierite
Φ 118x100	Cylinder	400 cpsi	Cordierite
Φ 276 × 290	Cylinder	400 cpsi	Cordierite
Φ 100 × 68 × 120	Runway type	400 cpsi	Cordierite
Φ 118 × 96 × 130	Trapezoidal	400 cpsi	Cordierite
Φ 91 × 96 × 130	Trapezoidal	400 cpsi	Cordierite

Prod Model:	CHS
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Material:	Cordierite,Cordierite Ceramics and Zircon Chrome C

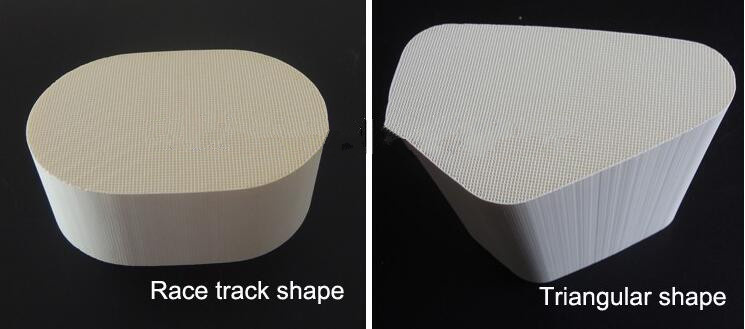

Shape:	Round, Oval or Race Track
Application:	as Catalyst Used in Automobile/Motorcycle
Discharge Standard:	Euro IV
Certification:	ISO9001
Component:	Catalytic Converter
Body Material:	Ceramic
