Chassis Dynamometer

Name: Chassis Dynamometer
Brand: ibuyautoparts.com
SKU: 724582282
Availability: InStock
Rating: 4.3 (105 reviews)

Price:	US $ 5000/Piece
Min Order:	1/Piece
Pay Type:	T/T

Contact Supplier

Showroom Product Company Profile

Prod Model:	ZHZYDBCGJ-01
Certification:	ISO
Update Method:	by Internet

Product Description

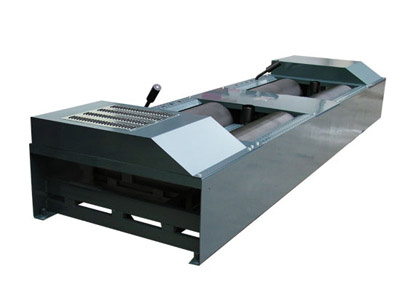

Chassis dynamometer
Product Name: chassis dynamometer
Product Description: configure industrial control computer;
The roller surface is sprayed by plasma hard alloy, the hardness is >HRC60, and the adhesion coefficient is >0.92;
Equipped with imported eddy current machines, reliable performance;
It can measure the loss power and chassis output power, wheel torque, engine power, print the starting motive power curve;
Measurable acceleration and coasting performance of car;
Auto speed meter and odometer can be checked;
Equipped with exhaust gas analyzer, the exhaust emission can be detected by ASM5025/ ASM2540 working condition according to the latest national standards and the comprehensive performance requirements and inspection methods of operating vehicles;
The fuel consumption meter can measure the fuel consumption under loading and other operation conditions;
The control system uses the WIN2000 platform to facilitate the retrieval of data detection, color display and print graphics, automatic detection results; equipped with adjustable damper, no transverse slip swing drive vehicle tests to ensure the safe and reliable detection.
Main technical parameters: maximum axle load quality 15000kg
Maximum absorption power 250KW
Maximum braking torque 2500N.M
Maximum test speed 120km
Drum diameter * length of 370 * 1000mm
Center distance of roller 600mm
Drum width / outer width (inside) 700/2700mm (outside)
Power supply 380 + 10% 50HZ

Zhuhai fostar Machinery Equipment Co., Ltd. is a company engaged in Vienna motor repair testing equipment manufacturing and marketing enterprise, company is equipped with a number of professional and technical class talent, to normal force in the development and production of high-tech products, the establishment of enterprises and improve the management system; And has passed the ISO9001 quality management system certification; Is dedicated to the earliest vehicle diagnosis, detection and maintenance products R & D, production and sales in one of the high-tech enterprises. At present, the main products are brand fushida 3D four wheel aligner, fostar machinery and equipment's has four major brands of 3D four wheel aligner, FOSTAR (fushida) is, ZHZY (hawk), ZHZF (War), ZHTK (tank), and automatic tire dismounting machine, tyre balancing machine series of high-tech products. Products are sold both at home and abroad and at home have good network system of domestic market, products are exported to Russia, Canada, the United States, Australia, Brazil, Germany, Italy, is currently expanding domestic and international markets.
