Vehicle Body Correcting Device

Name: Vehicle Body Correcting Device
Brand: ibuyautoparts.com
SKU: 711927462
Availability: InStock
Rating: 5 (134 reviews)

Price:	US $ 2750-3755/Piece
Min Order:	1/Piece
Pay Type:	T/T

Contact Supplier

Showroom Product Company Profile

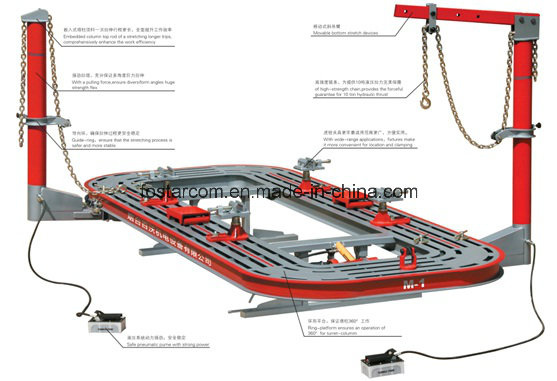

Technical parameter:
1 unique platform steel structure more in line with the requirements of the operation.
2 professional design hydraulic lifting platform to make any accident on the car, get off more convenient.
3 hydraulic system configuration joint venture pneumatic pump or provided by the United States TEAM POWER.
4. Mechanics streamline design of vise fixture, through forging and heat treatment process, higher strength, longer service life, suitable for any distortion correction.
5 he can track along the table rotate 360 degrees, make the operation more convenient and more labor-saving. Two lata pull, more robust and efficient.
6 embedded tower push rod with concealed hydraulic jack, more powerful, more convenient maintenance and.
7 full range of sheet metal tool configuration to consider the deformation of arbitrary shape correction, can make the correction more in place, more convenient and more efficient.
8 moderate beam correction device price and reliable performance, give full consideration to the ability to accept different investment groups!
Table length Length 5200mm Table, 5600mm
Table width Width 2100mm Table
Working table height Height 560mm Table
Working pressure of hydraulic system Pressure 70Mpa Hydraulic
Post working range of Post Working Range 360
Post Max.tension 95KN the maximum tension traction tower
Maximum lifting weight 3500kg Max.lifting

Prod Model:	FOTAR-01
Type:	Flatbed-type
Max. Lifting Capacity:	3.5T
Certification:	ISO
Condition:	New

Zhuhai fostar Machinery Equipment Co., Ltd. is a company engaged in Vienna motor repair testing equipment manufacturing and marketing enterprise, company is equipped with a number of professional and technical class talent, to normal force in the development and production of high-tech products, the establishment of enterprises and improve the management system; And has passed the ISO9001 quality management system certification; Is dedicated to the earliest vehicle diagnosis, detection and maintenance products R & D, production and sales in one of the high-tech enterprises. At present, the main products are brand fushida 3D four wheel aligner, fostar machinery and equipment's has four major brands of 3D four wheel aligner, FOSTAR (fushida) is, ZHZY (hawk), ZHZF (War), ZHTK (tank), and automatic tire dismounting machine, tyre balancing machine series of high-tech products. Products are sold both at home and abroad and at home have good network system of domestic market, products are exported to Russia, Canada, the United States, Australia, Brazil, Germany, Italy, is currently expanding domestic and international markets.
