Tuvtire Changer FT03301d +Cl 05b-01

Tuvtire Changer FT03301d +Cl 05b-01
Price: US $ 680-850/Piece
Min Order: 72/Piece
Pay Type: T/T
Tyre Changer > FT-3302
Tyre Changer > FT-3302

Features
Special designed plastic cover
Aluminium alloy air tank, 2500KG pressure
Standard aluminum alloy 80mm small tank, increase clamp power to 106KG
Chromium alloy assembling head
Zinc-base alloy gear box
LCD digital inflator, High-pressure explosion-proof air-oil separator
American import GATES transmission belt
Aluminium five way valve, swing air valve
Enforced post design, stability increase 1.5 times
German import reversing switch
Specification
Rim materialSteel, Al., Alloy
Max. wheel diameter41"
Max. wheel width14"
Inter clamp13"-23"
Outer clamp11"-21"
With optional adapters

for Motorcycle: 14"-23"
for ATV :8"-17"
Power supply110V/220V/380V 1Ph/3Ph 50/60Hz
Air supply8-10Bar
Motor power0.75KW-1.1KW
Noise level<75dB

Packing Information
Dimension770*940*970mm
Gross weight219KG
Net weight192KG
QTY of Container36UNITS/20'GP     72UNITS/40'GP

Standard Parts
Plastic insert2 pcs
Jaw protection4 pcs
Plastic bead breaker4 pcs
Crow bar1 pc
Air inflation gun1 pc
Filter regulator1 pc
Soap reservoir1 pc

Product Models
FT-3302:Basic Tyre Changer
FT-3302IT:FT-3302+Bead Blaster
FT-3302+CL02:FT-3302+Assistant Arm
FT-3302IT+CL02:FT-3302+Bead Blaster+Assistant Arm
FT-3302A:Upgrade Tyre Changer with better parts

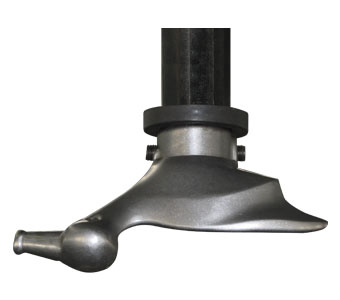

The following is the original mounting head, products strictly passed North American TUV certification system.


Prod Model: FT03301D +CL 05B-01
Certification: ISO
Condition: New
Zhuhai fostar Machinery Equipment Co., Ltd. is a company engaged in Vienna motor repair testing equipment manufacturing and marketing enterprise, company is equipped with a number of professional and technical class talent, to normal force in the development and production of high-tech products, the establishment of enterprises and improve the management system; And has passed the ISO9001 quality management system certification; Is dedicated to the earliest vehicle diagnosis, detection and maintenance products R & D, production and sales in one of the high-tech enterprises. At present, the main products are brand fushida 3D four wheel aligner, fostar machinery and equipment's has four major brands of 3D four wheel aligner, FOSTAR (fushida) is, ZHZY (hawk), ZHZF (War), ZHTK (tank), and automatic tire dismounting machine, tyre balancing machine series of high-tech products. Products are sold both at home and abroad and at home have good network system of domestic market, products are exported to Russia, Canada, the United States, Australia, Brazil, Germany, Italy, is currently expanding domestic and international markets.
