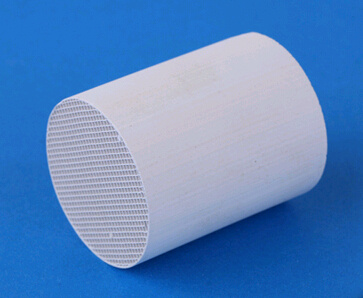

Ceramic Honeycomb Substrate for Gasoline Engine
| Price: |
US $ 15.5-16.5piece (depend on size) |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
10piece (depend on size) |
| Pay Type: |
L/C,T/T,Western Union |

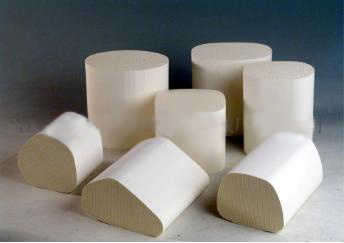

Ceramic Honeycomb Substrate is the core product of our company. Their thermal expansion coefficient can
be controlled within 1.1*10-6, the average diameter of poreis 8-10μm, with the wall thickness of 0.15-0.17mm, achieving leading industrial level in China, and ready to be used in a variety of catalytic
converter applications. As one of the national standard setters of cellular ceramic, we independently
developed and owned the core technologies on lowering thermal expansion coefficient, improving the cellular structure and wall thickness. We offer more than 40 sizes of ceramic
substrates with various cell designs.This type of products are been exported to Germany, Italy,
France, the United Arab Emirates, etc.
The major technical parameters for cordierite are as below:
*Thermal expansion coefficient: 1.6-2.0×10-6/ºC(20-800ºC)
*Absorption rate: 20-30%
*Inner wall thickness: 0.2±0.02mm
*CPSI (cell pieces per square inch): 200-600
*Bulk density: 0.5±0.05g/cm3
*Crushing strength: ≥14Mpa (on the top)
*≥4Mpa (on the side)
*Soften temperature: ≥1360°C

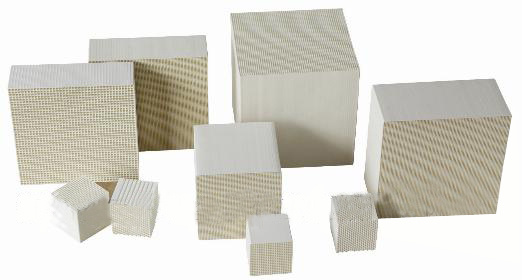

Specifications of Honeycomb Ceramic Substrate
*Good thermal shock
*Thin Wall Thickness
*Less backpressure
| Num | Specification | Holes shape | Type |
| 1 | 83×85 | Square | 400Cell/In2(CPSI) |
| 2 | 100×100 | Square | 400Cell/In2(CPSI) |
| 3 | 130×130 | Square | 400Cell/In2(CPSI) |
| 4 | 118×150 | Square | 400Cell/In2(CPSI) |
| 5 | 107×100 | Square | 400Cell/In2(CPSI) |
| 6 | 150×75 | Square | 400Cell/In2(CPSI) |
| 7 | 83×125 | Square | 400Cell/In2(CPSI) |
| 8 | 150×150 | Square | 300Cell/In2(CPSI) |
| 9 | 120×100 | Square | 300Cell/In2(CPSI) |
| 10 | 101.6×100 | Square | 300Cell/In2(CPSI) |
| 11 | 94×100 | Square | 300Cell/In2(CPSI) |
| 12 | 85×70 | Square | 300Cell/In2(CPSI) |
| Prod Model: |
CHS |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Size: |
120*81*76.2mm,144.8*81.3*70mm,etc |
| Cell: |
100-400cpsi |
| Discharge Standard: |
Euro IV |
| Certification: |
TS16949 |
| Component: |

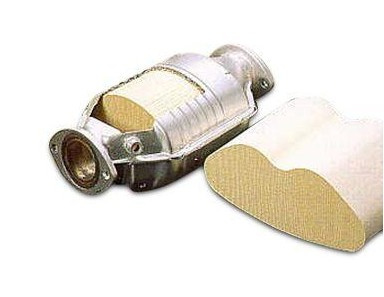

Catalytic Converter |
| Body Material: |
Ceramic |
Beihai Xiaoming International Imp&Exp Co., Ltd Established in 2008, which is a Private High-tech company located in Beihai city, China that is famous for its Silver Beach. We are a professional manufacturer and exporter of producing and exporting SiC/Al2O3/Zirconia Ceramic Foam Filter, Honeycomb Ceramic Heater for RTO, Infrared Cramic Plate, Cordierite/SiC Diesel Particulate Filter, Ceramic/Metal Honeycomb Substrate etc chemical products.
Beihai Xiaoming International Imp&Exp Co., Ltd is in the production, sales as a whole, and in cooperation with a number of large Group companies of major export commodities operated enterprises with a good reputation. For many years, with exports to Europe, and many countries in Southeast Asia, and received high praise.
We have a number of domestic and international famous academia senior adviser, own an innovation R & D team and sales elite. We have an excellent team of R & D\Production\Management and Sales, with passionate and responsibility. Currently, we have applied more than 30 patents for products developed and got certificates issued by international authorities such as TUV, IEC, UL, CE.
With the spirit of innovation during R&D, we were, we are and we will always be perfecting our products with the philosophy of " science, precision, accuracy and high efficiency". We hereby make our commitment: We offer our clients with the most effective and satisfying service, and this is our every person in our company to constantly pursuit.
