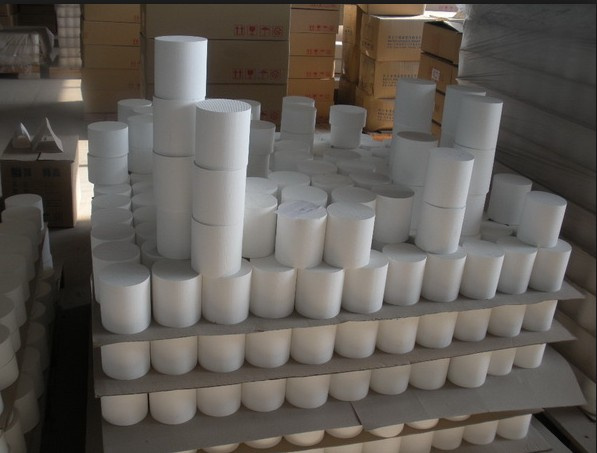

Honeycomb Ceramic Substrate is made of cordierite, and it is used for car catalytic converter. The cells density can be 100 cpsi, 300 cpsi, 400 cpsi or 600 cpsi. The shape will be round, oval or racetrack. We can supply both ceramic element coated with noble metals of Pt, Pd, Rh and ceramic element without noble metals.
Automobile exhaust catalyst carrier is our company mainstream products, its coefficient of thermal expansion can be controlled at 1.1 × 10-6, the average pore diameter, 8-10μ M, hole wall thickness 0.15-0.17mm, reached domestic leading level, fully meet various automobile exhaustuse of the catalyst carrier requirements. As a the ceramic honeycomb national standard formulation of one of the units, our company has independently developed the core technology to reduce the the product thermal expansion coefficient, pore structure and pore wall. I am currently produces more than 40 kinds of standard models of automobile exhaust catalyst carrier, these products are exported to Germany, Italy, the United Arab Emirates, France and other countries.
Performance: Bore wall is thin, the high specific surface area, high strength, low thermal expansion coefficient, good thermal shock resistance and thermal shock resistance, have a good match to the active ingredient and various catalyst
Use: Automobile exhaust purification catalyst carrier
Scope: Automobile manufacturing
Suitable For: Automotive vehicle exhaust purifiers (European standard) supporting
used in car ( gas ) |
|
(mm) |
Litre |
|
400 sells per square inch |
Round shape |
φ150*100 |
1.767 |
|
φ144*152.4 |
2.482 |
|
φ118*152.4 |
1.667 |
|
φ115.4*152.4 |
1.594 |
|
φ106*100.4 |
0.886 |
|
φ103*100 |
0.833 |
|
φ101.6*152.4 |
1.236 |
|
φ100*100 |
0.786 |
|
φ93*152.4 |
1.035 |
|
φ83*152.4 |
0.825 |
|
φ80*100 |
0.503 |
|
φ76*50 |
0.227 |
|
φ41*25 |
0.033 |
|
Racetrack ellipse |
P169*80.8*115 |
1.41 |
|
P148*84*152.4 |
1.66 |
|
P144.8*81.3*127 |
1.32 |
|
P127*63.5*152.4 |
1.10 |
|
P93*61*91 |
0.44 |
|
P120.6*80*152.4 |
1.26 |
|
P143*98*152.4 |
1.82 |
|
P147*95*152.4 |
1.83 |
|
P177.8*114.3*170 |
2.98 |
|
abnormity |
T144*84*75 |
0.713 |
|
T114*105*75 |
1.081 |
|
T120.2*108.2*75 |
0.766 |
|
T112.2*92*115 |
0.932 |
|
T119.5*99.5*115 |
1.074 |
|
T122.3*104.4*80 |
0.802 |
|
|
|
(mm)section size |
(mm)max length |
Litre |
300 sells per square inch |
Round shape |
144.0000 |
200.0000 |
3.258 |
150.0000 |
200.0000 |
3.535 |
190.0000 |
200.0000 |
5.671 |
220.0000 |
200.0000 |
7.604 |
240.0000 |
200.0000 |
9.049 |
600 cells per square inch |
93.0000 |
152.4000 |
1.035 |
101.6000 |
152.4000 |
1.236 |
118.0000 |
152.4000 |
1.667 |
