Brake Lathe (C9370 C9370C C9372)
PARE 1---Product discription
FEATURES:1. Quickly, accurately and efficiently to cutting rotor.
2. Fast and slow setting allow cutting rotor.
3. Quickly, accurately and efficiently to cutting drum.
4. Finitely adjustably setting allow cutting drum.
5. Three kinds of speed 70,88,118 rpm to choose for spindle speed.
6. A convenient design allows to quickly change from rotor to drum.
7. Position of stop make the lathe stop automatically after cutting.
8. Fully equipped with adapter package.

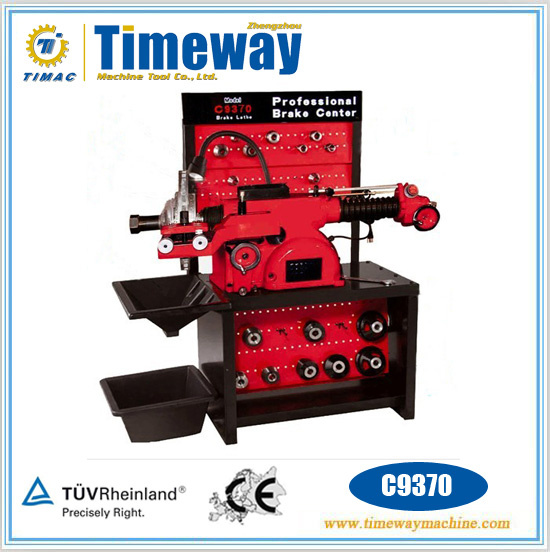

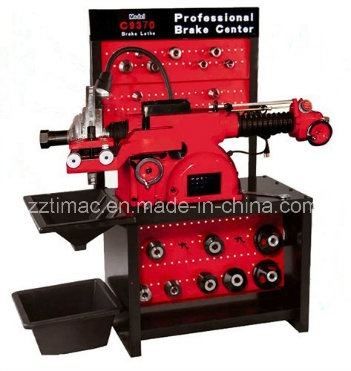

PARAMETER:| Specification | C9370 |
| Spindle Travel | 9.875" (251mm) |
| Spindle speed | 70, 88, 118 rpm |
| Spindle feed speed | 0.002"-0.02"(0.05mm-0.5mm) |
| Cross feed speed | 0.002"-0.01"(0.05mm-0.25mm) |
| Handwheel graduations | 0.002"(0.05mm) |
| Rotor diameter | 7" -18" (180mm-457mm) |
| Rotor thickness | 4" (102mm) |
| Drum diameter | 6" -28" (152mm-711mm) |
| Drum depth | 9.875" (251mm) |
| Motor | 110V/220V/380V,50/60HZ |
| Gross weight | 400 kg |
| Dimension (LxWxH) | 1100x1070x1140mm |
| Specification | C9370C |
| Spindle Travel | 9.875" (251mm) |
| Rotor diameter | 7" -18" (180mm-457mm) |
| Drum diameter | 6" -28" (152mm-711mm) |
| Motor | 110V/220V/380V,50/60HZ |
| Spindle speed | 70,88,118 rpm |
| Rotor thickness | 4" (102mm) |
| Drum depth | 9.875" (251mm) |
| Shipping weight | 400 kg |
| Dimension (L×W×H) | 1100mm ×1070mm×1140mm |
| Site requirements | 1525x1270x1780mm |

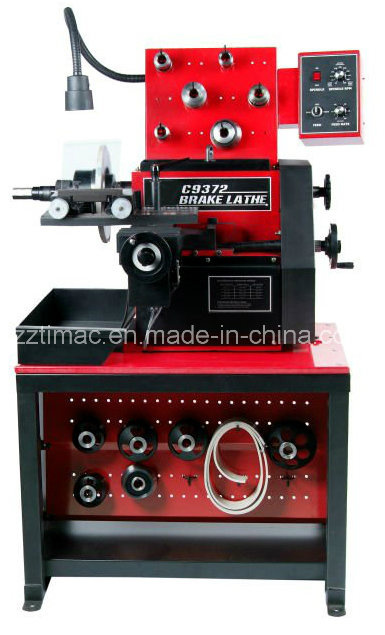

| Specification | C9372 |
| Rotor diameter | 4"-24" (102-610mm) |
| Max. rotor thickness | 2.85"(73mm) |
| Drum diameter | 6"-28"(152-711mm) |
| Drum depth | 9"(229mm) |
| Flywheel diameter | 6"-24"(152-610mm) |
| Spindle weight capacity(standard 1" arbor) | 150Ibs(68kg) |
| Spindle speed | 70-320RPM |
| Feed rates-rotor and drum | 0"-0.026"(0-0.66mm) |
| Feed rate per minute | 2.54"(64.5mm) |
| Motor | 110V/220V,50/60HZ |
| Gross weight | 300Kg |
| Dimension (LxWxH) | 1130x720x750mm |
