| Prod Model: |
T8465 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Lathe: |
Brake Drum Lathe |
| After-Sales Service Provided: |
Engineers Available to Service Machinery Overseas |
| Warranty Period: |
One Year After Delivery |
| Voltage: |
as Your Request |
| CNC Or Not: |
Normal |
| Certification: |
ISO9001 |
| Type: |
Brake Drum Lathe |
Product Description

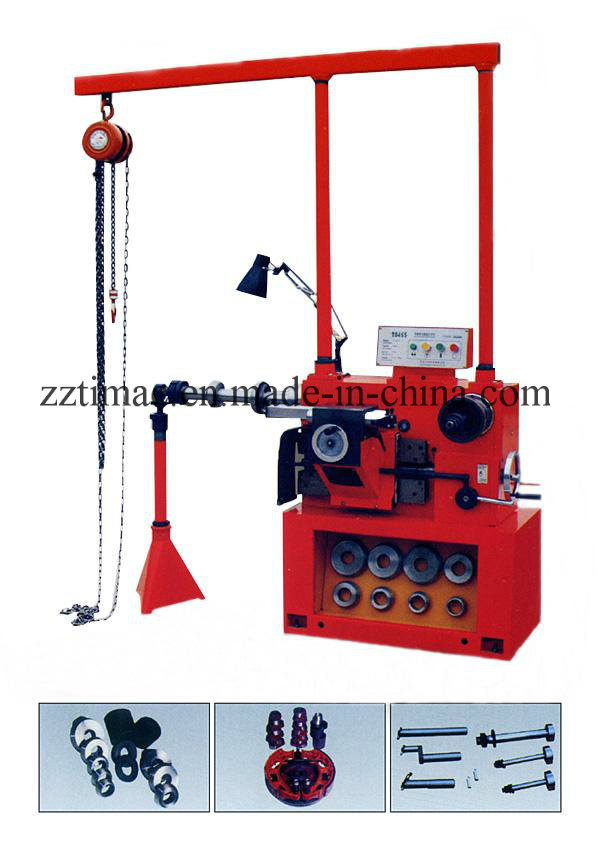

BRAKE DRUM LATHE
Features:
1. Brake drum lathe T8465 is a kind of lathe. It can fulfill the reparation of the brake drum, disc and shoe of
automobiles from mini car to medium trucks.
2. The brake drum/shoe can be cut on the first Spindle and the brake disc can be cut on the second
Spindle.
3. This lathe has higher rigidity, accurate workpiece positioning and is easy to operate.
4. If you adopt this brake drum lathe, there is no doubt for your enterprise to set up higher reputation due to better process quality and lower your process cost.
Parameter:
| Specification | Unit | T8465 |
| Drum dia. capacity | mm | 180-650mm |
| Disc dia. capacity | mm | 0-500 |
| Spindle speed (three grades) | r/min | 25, 40, 70 |
| Tool post Travel | mm | 250 |
| Feed Rate | mm/r | 0.16 |
| Motor | kw | 1.1/1400 |
| Power Requirement |
| 380V/ 50HZ/ 3phases/3A |
| Dimension(not includle crane and outboard supporter) |
| Length | mm | 800 |
| Width | mm | 875 |
| Height | mm | 940 |
| Net Weight | kg | 580 |
PART 2 ---Our Service
1. Free replacing parts available in the warranty period.
Cost price replacing parts available beyond the warranty period.
2. Quick action and reply for the technical questions at any time in the whole life of the machine.
3. Overseas after service center available in some region.
4. Engineer overseas service available on the requirement of customer(relative cost born by customer).
