Automotive 4-Post Electro-Hydraulic Lift

Name: Automotive 4-Post Electro-Hydraulic Lift
Brand: ibuyautoparts.com
SKU: 784903915
Availability: InStock
Rating: 5 (106 reviews)

Price:	US $ 1-2000/Set
Trade Terms:	FOB,CFR,CIF
Min Order:	1/Set
Pay Type:	L/C,T/T

Contact Supplier

Showroom Product Company Profile

Prod Model:	JZJ-G440D
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Type:	Four Cylinder Hydraulic Lift
Lifting Capacity:	4T
Certification:	ISO
Design:	Four Post
Brand:	Jingzhongjing/Jzj

Product Description

Product Description
Model: G440D four post lift (for four wheel alignment)

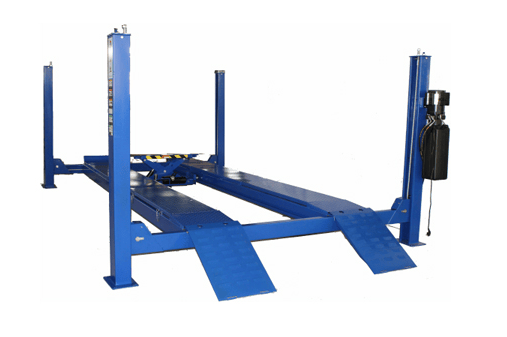

Product Picture

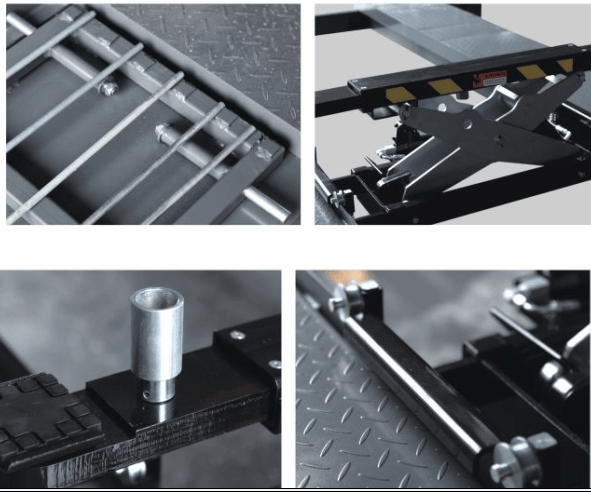

Parts Picture

Features
(1). Driven by hydraulic cylinder in stable lifting and lowering, it is used for lifting of various small and medium-sized vehicles with total loading capacity for 4 tons, 5.5 tons, 8 tons and up to 20 tons in garage and workshop
(2). Offering full range mechanical safety protection by using the safety latches
(3). Connected by four steel cables, forced synchronized movement of the lift in order to effectively prevent the sloping of the vehicles
(4). Adjustable distance between runways to accommodate different wheel track
(5). Equipped with secondary lifting jack, two adjustable turntable positions and sideslip, suitable for wheel alignment
(6). Optional electric jack, pneumatic jack or manual jack
(7). Optional imported pumping device

Specifications

Lifting capacity	8816lbs/4000kg
Lifting height	65"/1650mm
Lifting time	50 seconds
Overall height	80"/2020mm
Overall width	124"/3140mm
Overall length	183"/4650mm
Motor voltage	220V or 380V
Frequency	50Hz or 60Hz
Phase	1PH or 3PH
Net weight	2645lbs/1200kg

Jiangsu Jingzhongjing Industrial Paint Equipment Co., Ltd, is located in the Yangtze River Delta Economic Zone, China Industrial Painting Base, Yancheng city, Jiangsu Province. We have the plant area of 99000m2, garden-style industrial zone. We have the staff of 260, including 20 engineers with 15years designing experience. Our annual production capacity can achieve 2, 500 sets paint booth.

We adhere to the "heritage of big business style, classic gaming counterparts, - creating the world brand" core values. Pursuit high goals, has won wide recognition and praise from the government and the market.

Our products are JZJ Brand spray booth, sandblasting booth, shot blasting machines etc. Our products have passed the ISO9001, EU CE, the products have been shipped in the domestic 34 provinces and more than 50 countries like Germany, Japan, Russia etc.

Our products are well-known in the industrial of the automobile, aviation, military, wind power, nuclear power, engineering machinery, machine tool manufacturing, and other industries.

Welcome the customers from China and all over the world to join us!
