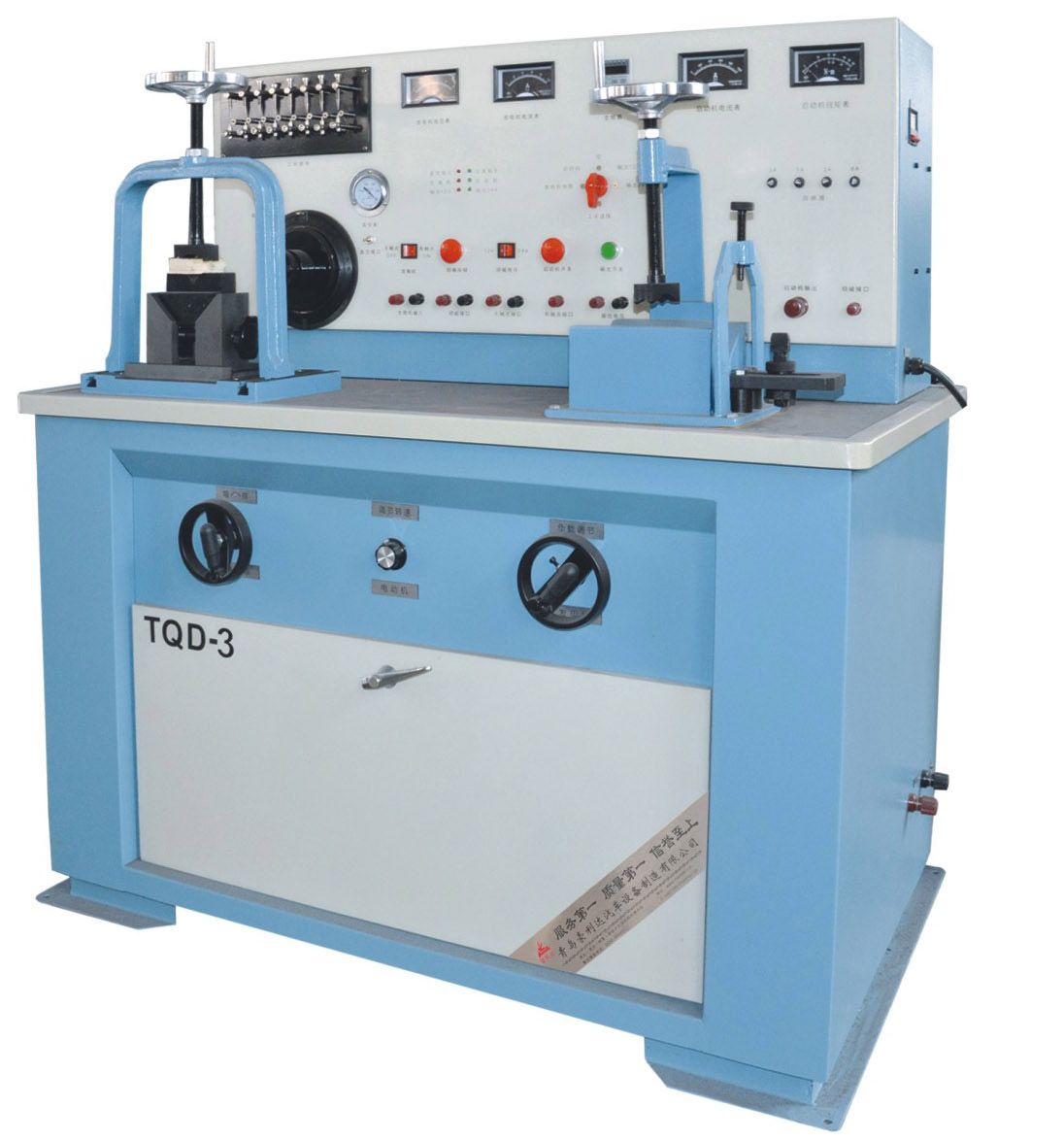

Automobile Electrical Universal Test Bench
1. Function Introduction
This test bench is designed specially for teaching demonstration of all Colleges of Vocational Education and equipped for automobile professional school. It is used to test electrical appliances of automobile like generator, starter, distributor, ignition coil, electric wiper and electric horn etc.
2. Technical Parameter
Power AC: AC220V 50HZ External: DC: DC12V\24V\48V
Speed regulating range RPM range: 0_5000r/min
Turning direction: Positive and negative
RPM steps: High speed 0_5000r/min low speed 0_1000r/min
Three-pin discharge unit Three-pin discharge: 8 groups in parallel ignition angle index plate: 360° Division range of adjusting clearance: 0_15mm
Starter braking unit Maximum braking current: 1000A; Maximum braking torque: 100N. M (analog type)
Range of generator testing device All generators with less than 1KW power
Test items Test generator: No load, load; Test electronic regulator: Regulate voltage and current, limit current; Test starter: No load, load, braking torque; Test distributor: Ignition intensity, uniformity and ignition advance angle, applicable for testing distributor with contact or without contact; Test battery: Voltage; Test electric horn: Sound; Test electric wiper: Action
TQD-2/2A Model Electric Universal Test Bench
| Model | TQD-2 | TQD-2A |
| Power | AC220V 50HZ
External: DC12V,24V | AC380V 50HZ
External: DC12V,24V |
| Motor power | Variable frequency speed regulation 1.5KW | Variable frequency speed regulation 2.2KW |
| Variable frequency speed regulation | Range:0-5000r/min
Turning direction:Positive and negative
Adjusting mode: Rotary | Range:0-5000r/min
Turning direction:Positive and negative
Adjusting mode:Rotary |
| Three-pin discharge unit | Three-pin discharge: 8 groups in parallel; ignition angle index plate : 360°;
division range of adjusting clearance: 0-15mm;
with vacuum function, can test vacuum ignition. |
| Testing range of starter braking unit | Maximum braking current:1000A
Maximum braking torque:100N.M (virtual) |
| Range of generator testing device | All generators less than 1.5KW power | All generators less than 2.0KW power |
| Charging function | None | Charging voltage:12V/24V
Maximum charging current:20A(adjustable) |
| Test items | Test generator: (no load, load) voltage,current,speed;
Test starter: (no load, load)current, voltge,braking torque;
Test electronic regulator: regulate voltage and current, limit current;
Tst distributor: ignition intensity, uniformity and ignition advance angle, applicable for testing distributor with contact or without contact;
Test battery: voltage;
Test electric horn: sound;
Test electric wiper: action;
Test ignition coil
|
