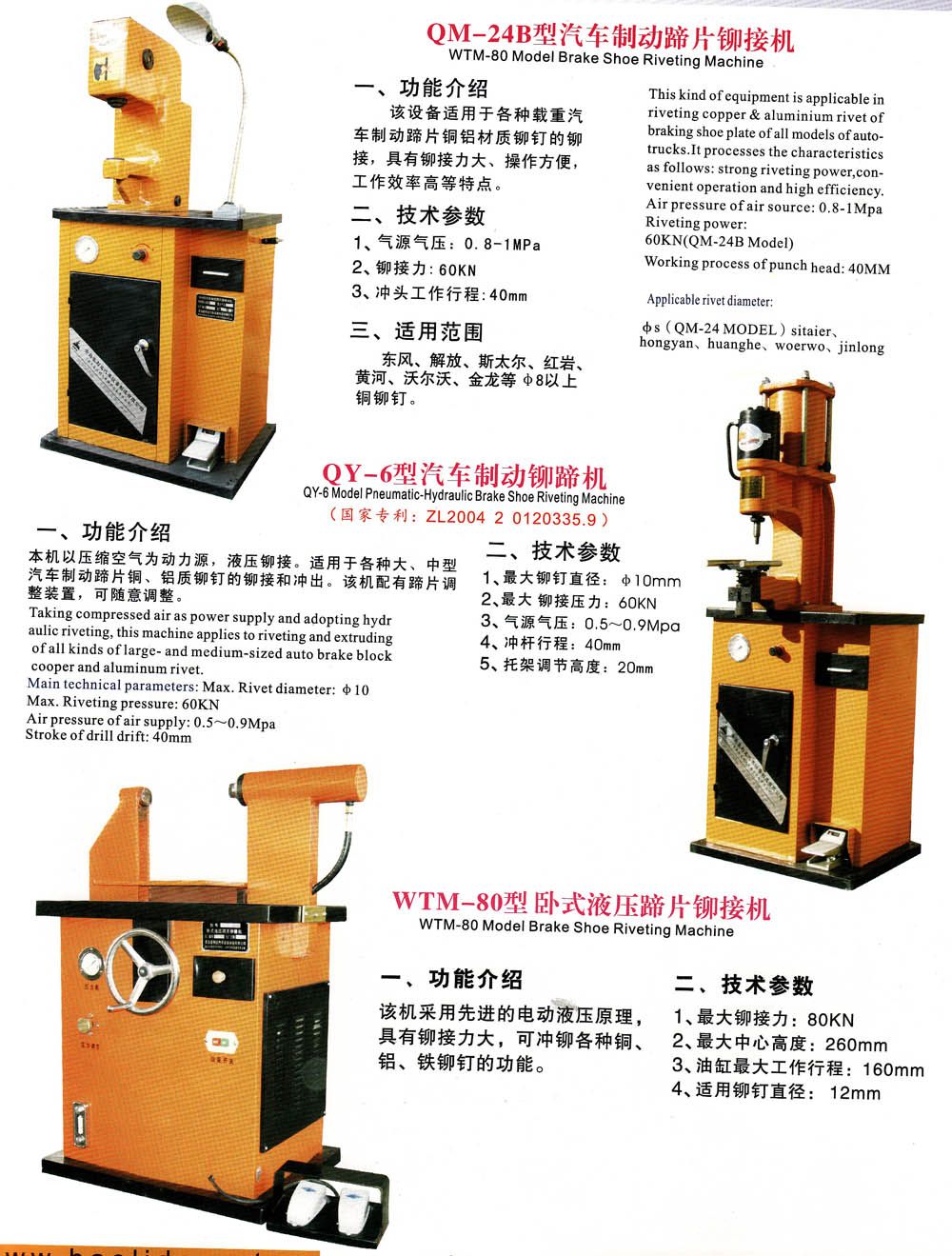

Auto Brake Shoe Plate Hydraulic Riveters
QY-6

1. Function Introduction
QY-6 Model Auto Brake Shoe Plate Hydraulic Riveters the latest special maintenance equipment developed by our company. It uses compressed air as its power source and makes the riveting by hydraulic pressure. It features novel structure, easy operation, stable center alignment and adjustable riveting force etc. Therefore it is suitable for riveting and punching of all kinds of truck braking shoe plate rivet, being copper or aluminum and also can used for riveting of other auto parts like clutch friction plate.

2. Technical Parameter
Max riveting force: 60KN
Rated working pressure: 0.5-0.8MPA
Diameter of allowable rivet: 10mm
Effective travel distance of the traveler: 40mm
20mm Height adjusting distance of the shoe iron bracket: 20mm.
Overall dimension (L*W*H): 580× 540× 1440mm

Prod Model:	QY-6
Certification:	ISO
Update Method:	by Email
Type:	Hydraulic Brake Shoe Riveting Machine
