Electrical Hydraulic Brake Shoe Riveting Machine

Name: Electrical Hydraulic Brake Shoe Riveting Machine
Brand: ibuyautoparts.com
SKU: 835834265
Availability: InStock
Rating: 4.9 (22 reviews)

Price:	Negotiable/Piece
Min Order:	1/Piece
Pay Type:	T/T

Contact Supplier

Showroom Product Company Profile

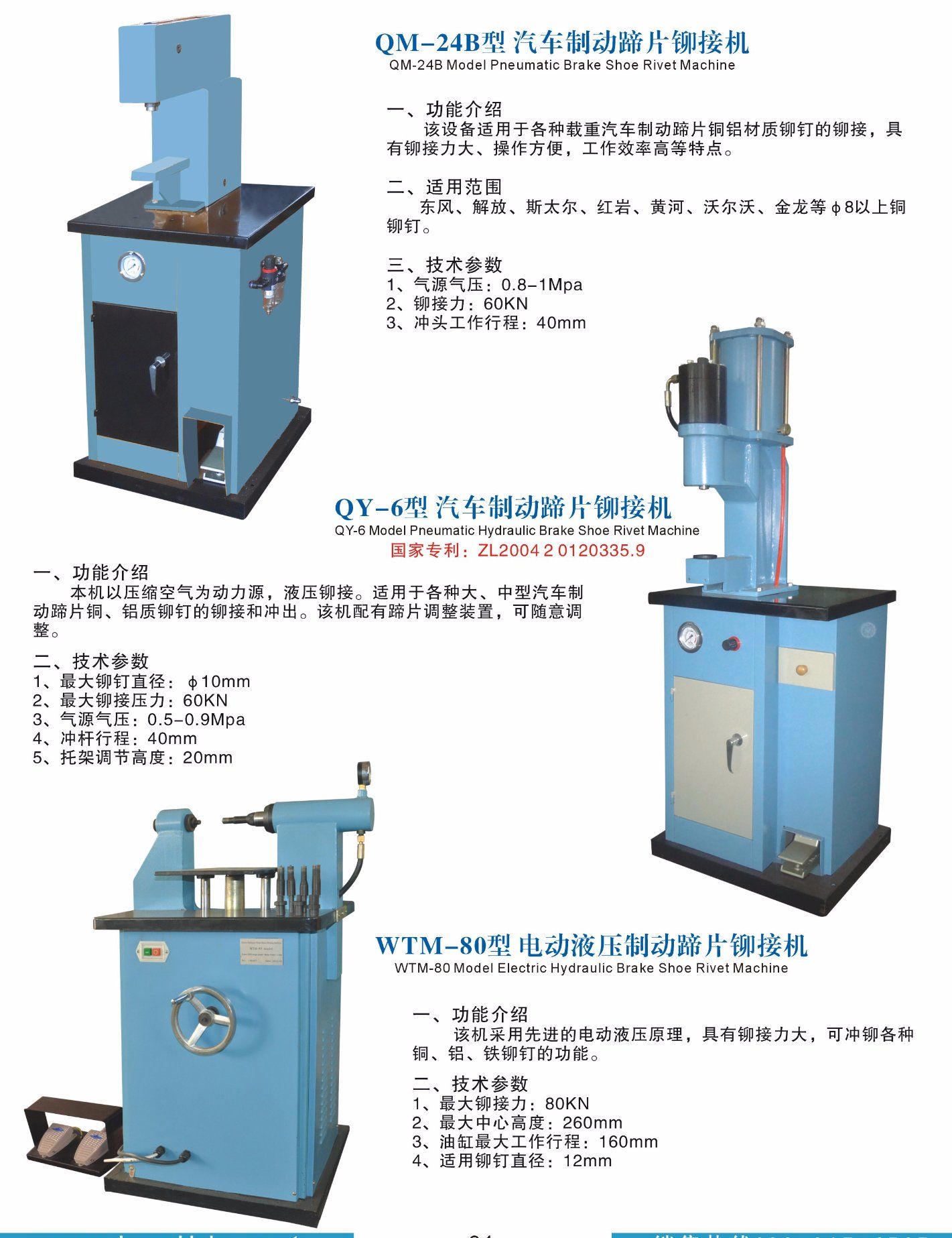

WTM-80 model rivet machine uses advanced electro-hydraulic principle and possesses large riveting force ,it can work on copper, aluminum and iron rivets and remove old rivets from brake shoes.

Technical parameter:
Maximum riveting force: 80KN (8T)
Maximum center height: 260mm
Maximum working stroke of oil cylinder: 160mm
Applicable rivet diameter: 3-12mm
Riveting speed: stepless speed regulation

Character:
QY-6 model brake shoe rivet machine uses compressed air as power, air-hydraulic conversion.
It is suitable for large and medium heavy-load vehicle brake linings, it can work on copper, aluminum rivets and remove old rivets from brake shoes.
Technical parameter:
Max Riveting Force: 60KN (6T)
Air source Pressure: 0.5-0.9MPa (Adjustable)
Applicable rivet diameter: 3mm-10mm (Copper and Aluminum and Steel)
Punch working stroke: 40mm (Adjustable)
Tools & Accessories
Riveter: 6 Pcs, can be used to rivet or punch Φ3,Φ4,Φ5,Φ6,Φ8,Φ10 rivets
Punch: 2 Pcs, can be used to punch Φ3,Φ4,Φ5,Φ6,Φ8,Φ10 rivets

Character:
QM-24B model brake shoe rivet machine uses compressed air as power.
It can work on copper, aluminum rivets and remove old rivets from brake shoes.
Technical parameter:
Max Riveting Force: 60KN (6T)
Air source Pressure: 0.8-1MPa (Adjustable)
Applicable rivet diameter: 3mm-10mm (Copper and Aluminum and Steel)
Punch working stroke: 40mm (Adjustable)

Tools & Accessories
Riveter: 6 Pcs, can be used to rivet or punch Φ3,Φ4,Φ5,Φ6,Φ8,Φ10 rivets
Punch: 2 Pcs, can be used to punch Φ3,Φ4,Φ5,Φ6,Φ8,Φ10 rivets

Prod Model:	WTM-80, QM-24B, QY-6
