Auto Brake Drum and Disc Cutting Brake Lathe

Name: Auto Brake Drum and Disc Cutting Brake Lathe
Brand: ibuyautoparts.com
SKU: 621698312
Availability: InStock
Rating: 5 (34 reviews)

Price:	Negotiable/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	1/Piece
Pay Type:	L/C,T/T

Contact Supplier

Showroom Product Company Profile

Model: C9372
Specification
Rotor Diameter 4"-24"(102mm-610mm)
Maximum Rotor Thickness 2.85"(73mm)
Drum Diameter 6"-28"(152mm-711mm)
Drum Depth 9"(229mm)
Flywheel Diameter 6"-24"(152mm-611mm)
Spindle Weight Capacity (Standard 1" Arbor) 150Ibs(68Kg)
Spindle Speed 70-320RPM
Feed Rates - Rotor and Drum 0"-0.026"(0mm-0.66mm)
Feed Rate Per Minute 2.54"(64.5mm)
Electrical Requirement 110V/220V/380V 50/60Hz
Shipping Weight 300Kg
Dimension 1130X720X750(mm)

Model: C9370
* Spindle Travel 9.875" / 251mm
* Spindle Speed 70, 80, 118 RPM
* Spindle Feed Speed Min 0.002 Inch Per Revolution / 0.05 Mm/Rev
* Max 0.02 Inch Per Revolution / 0.5 Mn/Rev
* Cross Feed Speed Min 0.002 Inch Per Revolution / 0.05 Mn/Rev
* Max 0.01 Inch Per Revolution / 0.25 Mn/Rev
* Handwheel Graduations 0.002" / 0.05mm
* Rotor Diameter 7" / 180mm - 18" / 457mm
* Rotor Thickness 4" / 102mm
* Drum Diameter 6" / 152mm - 28" / 711mm
* Drum Depth 9.875" / 251mm
* Motor 1pH 220VAC 50/60Hz 3pH 380VAC 50/60Hz
* Gross Weight: 400kg
* Dimension 1100X1070X1140mm

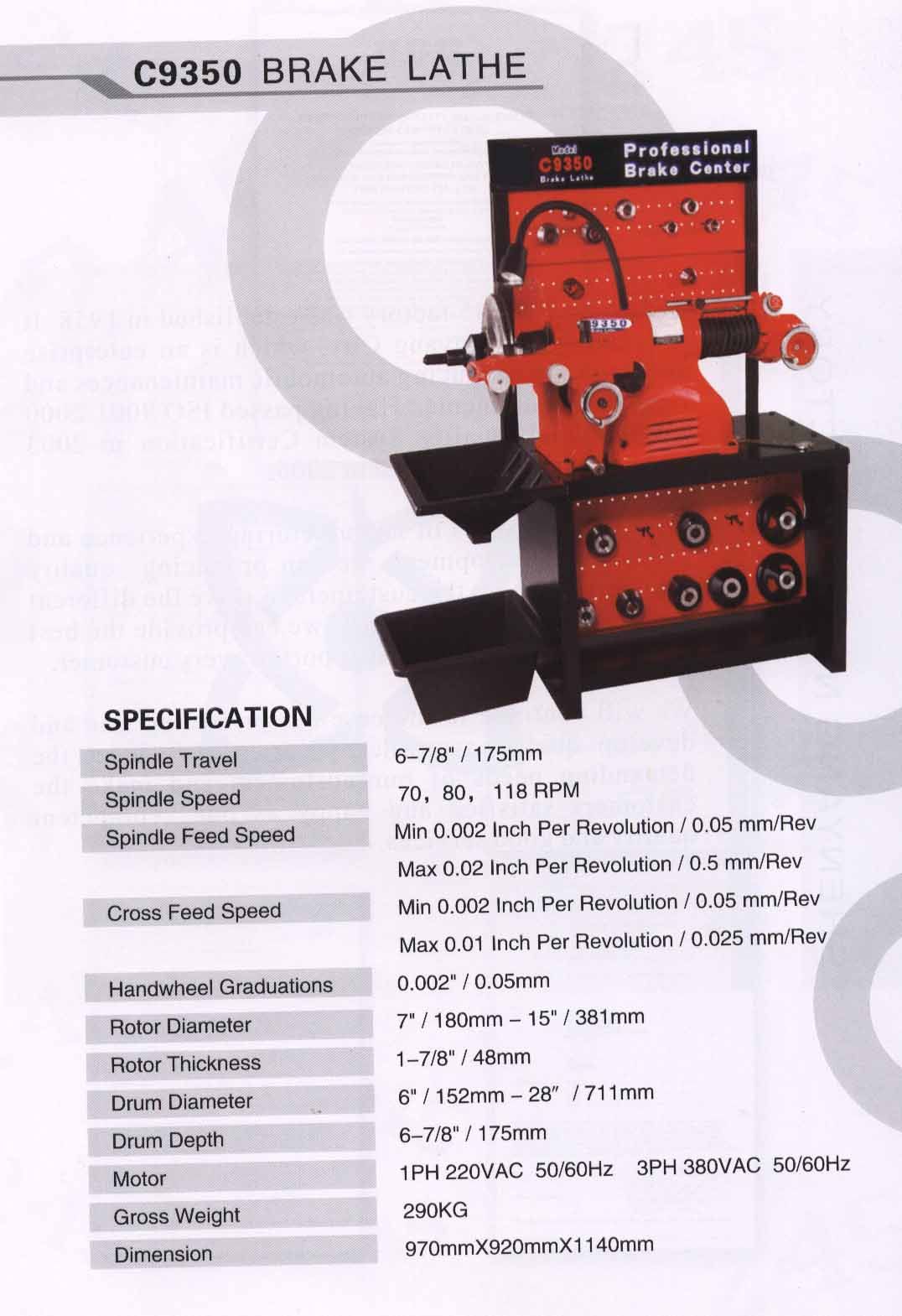

Model: C9350
Specifications:
Drum Dia Capacity(mm): 152-500
Depth of Drum (mm): 175
Disc Dia Capacity (mm): 180-330
Motor Power: 220V/380V, 0.75 KW (optional)
Spindle Speed (r/min) three grades: 70, 100, 130
Max. Cutting Capacity (mm): 0.5
Overall Dimensions (mm): 1200*900*430
Net Weight(kg): 240

Brake drum/disc cutting machine
Model: T8465
Main specification:
Drum diameter capacity: 180-650mm
Disc diameter capacity: <=500mm
Spindle speed(r/min) three grades: 25, 40, 70
Tool post travel: 250mm
Feed rate: 0.16mm/r
Motor: 1.1/1400 KW/rpm
Power: 380V/50Hz, 3 phases, 3A
Packing size: 960*1330*1230mm
Net weight: 580kg

Model: T8445 (for single feed speed 0.16mm/r)
Main specification:
Drum diameter capacity: 180-450mm
Disc diameter capacity: <=400mm
Spindle speed (r/min) three grades: 30, 50, 85
Tool post travel: 170mm
Feed rate: 0.16mm/r
Motor: 1.1Kw /1400 rpm
Packing size: 820*1080*1110mm
Net weight/ Gross weight: 320/350kg

Model: T8445(FCV)
Main specification:
Drum diameter capacity: 180-450mm
Disc diameter capacity: <=400mm
Spindle speed (r/min) three grades: 30, 50, 85
Tool post travel: 170mm
Feed rate: 0-0.5mm/min
Motor: 1.1Kw /1400 rpm

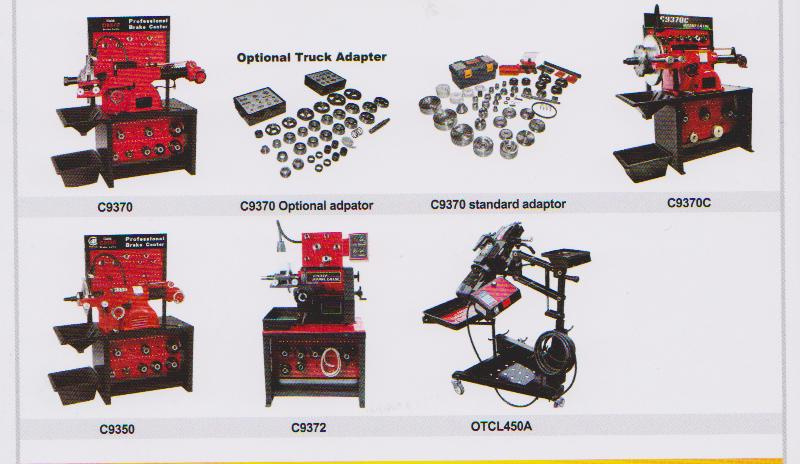

Prod Model:	C9350 /C9350C /C9370/C9370C /C9372 /T8465 /T8445
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Drum Diameter:152-711mm,:	Disc Diameter:152-611mm
