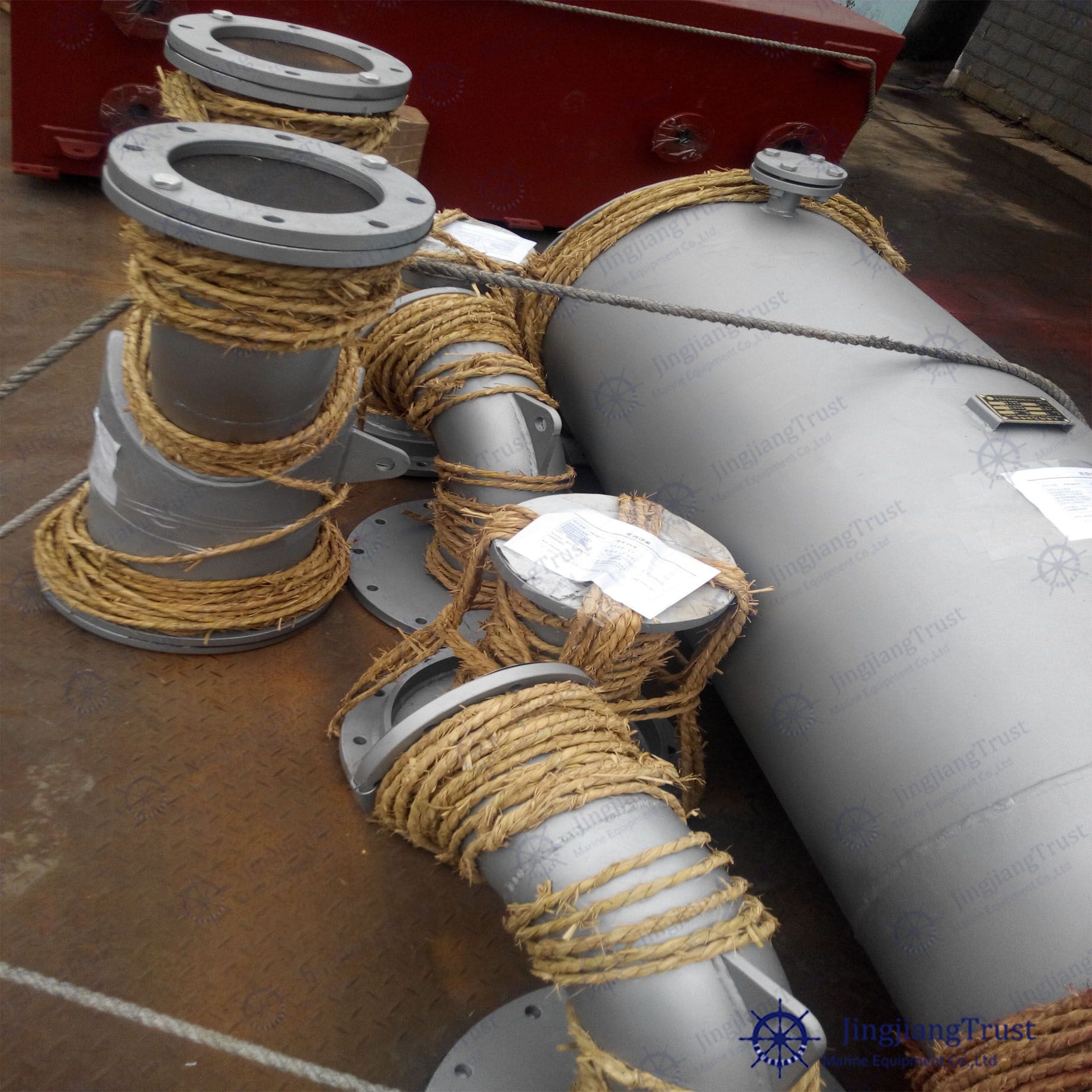

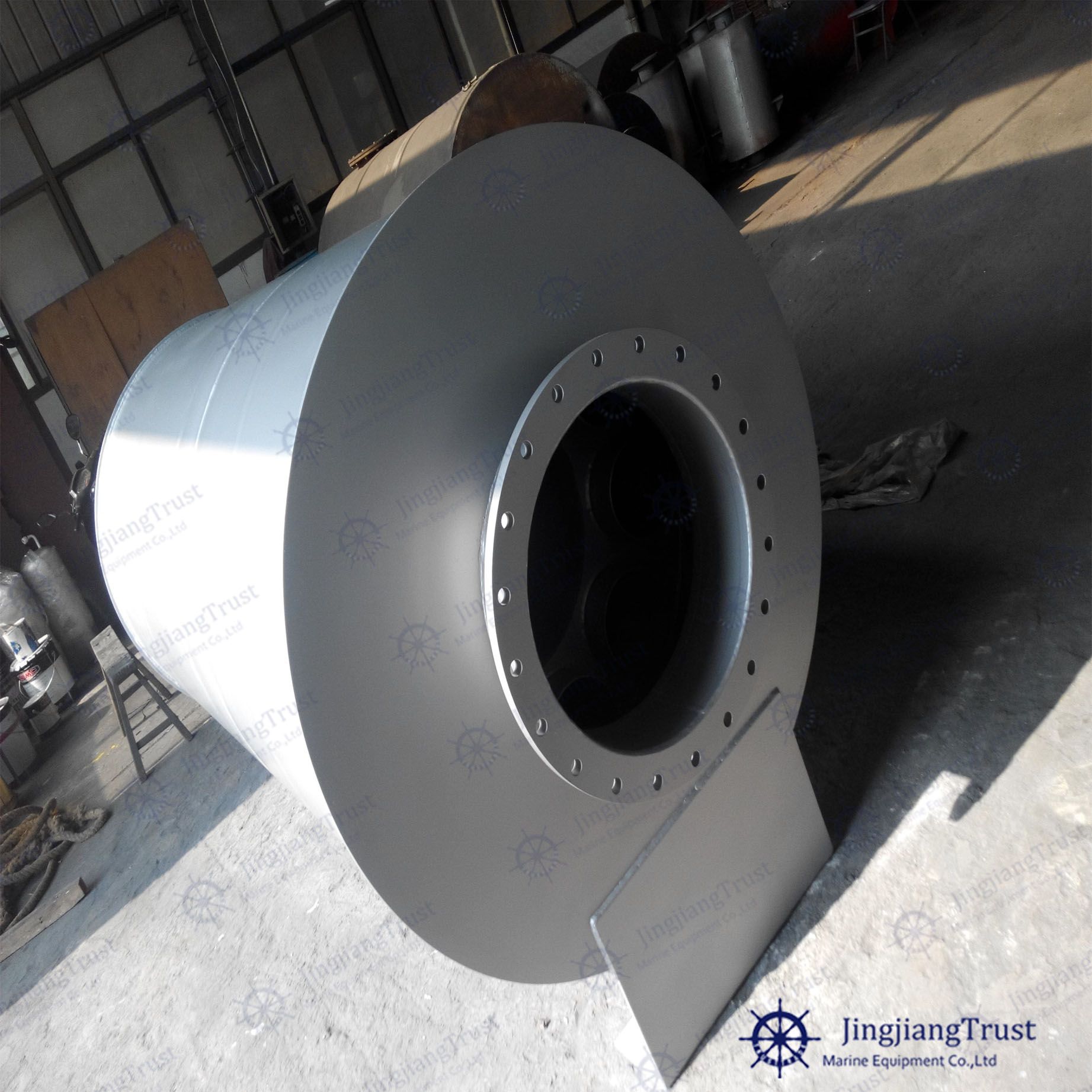

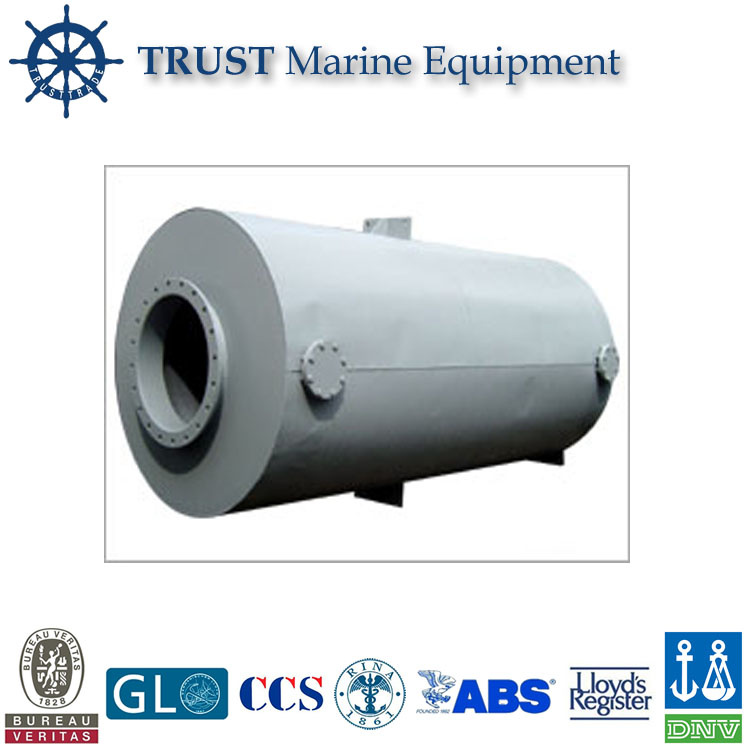

Vtzj Series Marine Spark Trap Exhaust Engine Generator Silencer

TZJ Series Marine Spark Trap Exhaust Engine Generator Silencer
Product Description

DN65-DN1800 diesel engine exhaust silencer
Product Type: collection type, collision type, negative type extinguisher; resistance, resistance, impedance composite muffler;

Design range: diameter 65mm - 1800mm, can be designed according to customer demand;

Material: stainless steel, carbon steel, copper;

Recognized Classification Society: CCS, GL, LR

Use: domestic and foreign large and medium-sized shipbuilding company military and civilian dual-use vessels.

Mufflers, spark arrestor muffler and spark extinguishing widely used on all types of vessels tankers, chemical tankers, my company is now producing the product specifications for DN65 to DN1800, silencing effect of up to 45dB. Production muffler and spark arrestor tested by the authorities. 2001, Mars arrestor testing center by the Shanghai Jiaotong University, performance reached the GL specification, and has made GL type approval certificate. In 2004, after 711 muffler testing center, fully meet the design requirements, customers have been recognized.

 Order notice

The specification is according to the diameter of input and output bore diameter
Given the parameter concerned, we will produce it accordingly

Main Size List(mm):


Model No	DN	D1	D2	D3	D4	D5	L	L0	L1	L2	L3	d	h
DC454-65	65	76	123	155	200	280	900	-	-	-	160	15	44
DC454-80	80	89	138	170	220	300	1100	-	-	-	160	15	57
DC454-100	100	108	158	190	320	400	1210	-	-	-	180	15	80
DC454-125	150	159	208	240	390	470	1325	700	90	500	180	15	120
DC454-175	175	186	238	270	470	550	1480	800	90	580	180	15	130
DC454-200	200	216	264	295	510	590	1540	850	90	630	180	15	170
DC454-250	250	266	327	365	710	790	1600	900	110	850	200	15	200
DC454-300	300	316	386	430	760	840	1710	1100	110	900	200	21	250
DC454-350	350	366	436	480	840	920	1890	1300	110	980	200	21	290
DC454-400	400	416	486	530	960	1040	2100	1400	110	1100	200	21	300
