5800A Steel Body Single Side Spot Welder S-58fr/68fr

Name: 5800A Steel Body Single Side Spot Welder S-58fr/68fr
Brand: ibuyautoparts.com
SKU: 697741975
Availability: InStock
Rating: 4.4 (125 reviews)

Price:	US $ 500-1500/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	1/Set
Pay Type:	L/C,T/T,D/P,Paypal,Western Union

Contact Supplier

Showroom Product Company Profile

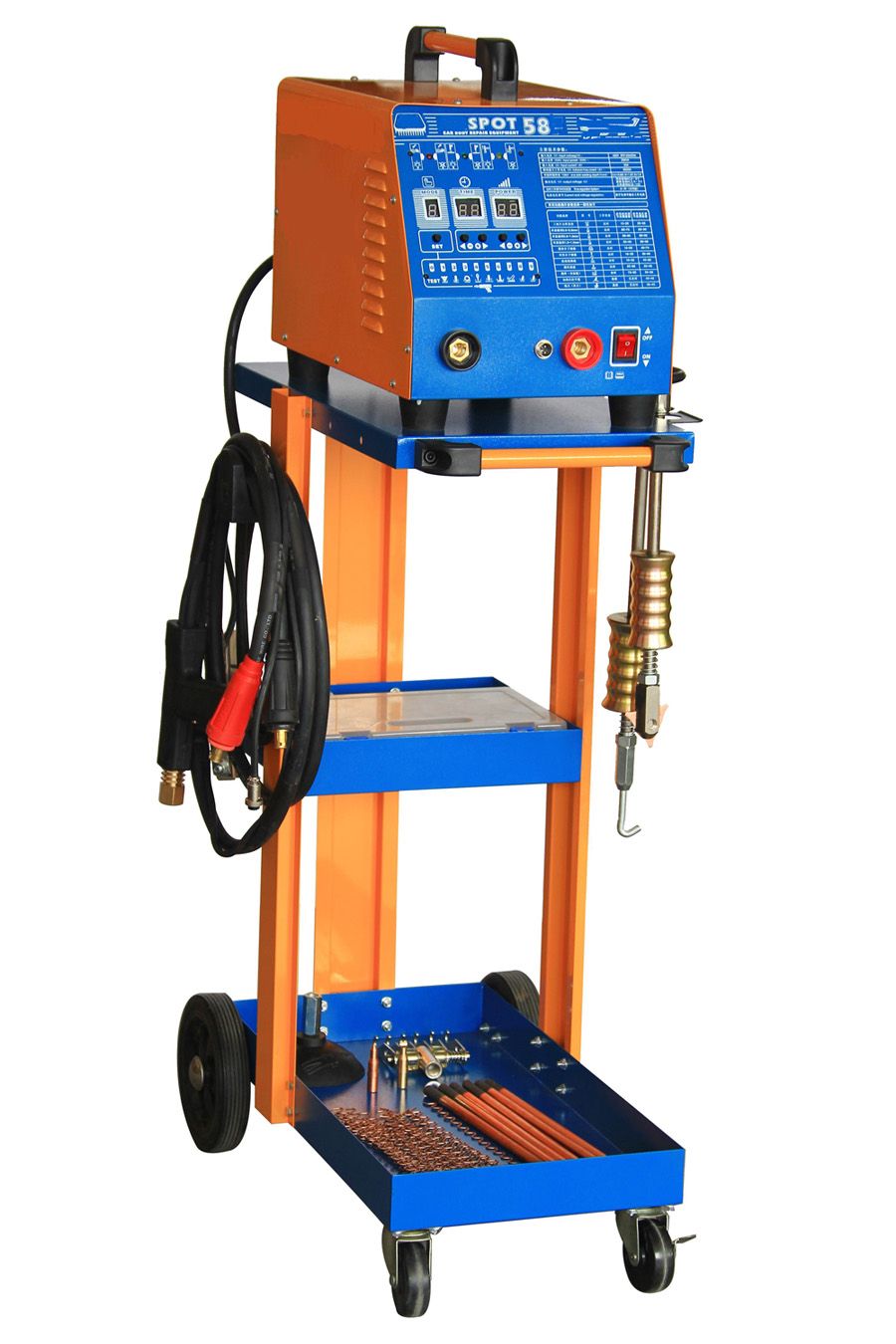

The S-58/68FR is integrated with functions of advanced washer welder, waved welding wire welder and spot welder in one. Stable and reliable quality, excellent and advanced performance.

1, Equipped with variable multi-function welding gun and accessories, entirely sheet metal repair functions.
2, Welding spatter is very few, where almost no metal particles can burn the car paint or the instrument and ornament.
3, Under control of SCR circuit, the output welding current can be stepless adjusted.
4, Appearance designed under national patent protection, convenient to move, aesthetics and practical.

Model	S-58FR	S-68FR
Input voltage	2PH/380V, 50/60Hz	2PH/380V, 50/60Hz
Input power (KVA)	19	22
Input current (A)	20	25
Max. output current (A)	5800	6800
Single side welding thickness (mm)	0.6+0.8/0.8+1.0/1.0+1.2	0.6+0.8/0.8+1.0/1.0+1.2
Output voltage	Welding materials melting AC4-8V	Welding materials melting AC4-8V
	Carbon rod heating AC3.5-5V	Carbon rod heating AC3.5-5V
	Spot and butt welding AC8-10V	Spot and butt welding AC8-10V
Timer regulation range (S)	0.1-1.2 S (99 steps)	0.1-1.2 S (99 steps)
Current and voltage regulation	Digital stepless regulation (99 steps)	Digital stepless regulation (99 steps)
Size (mm)	650× 450× 1350	650× 450× 1350
Weight (Kg)	58	60

Prod Model:	S-58FR/68FR
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Steel Body Single Side Spot Welder:	6800A Spot Welder
Type:	Transmission Jacks
Certification:	GS
Update Method:	by Internet
