(20.00X22.5) Flotation Implement Wheel for Sugar Cane and Farm Trailer

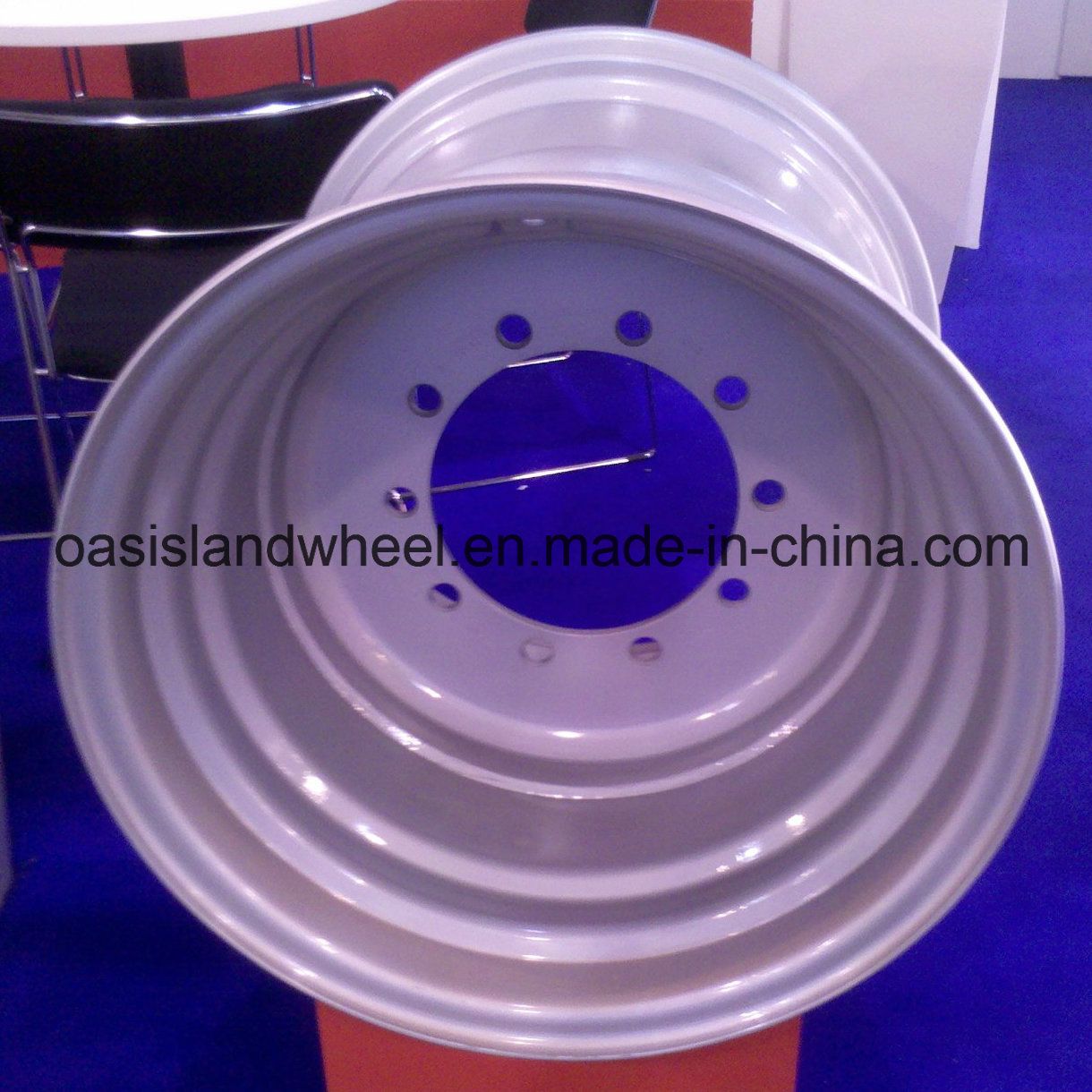

Name: (20.00X22.5) Flotation Implement Wheel for Sugar Cane and Farm Trailer
Brand: ibuyautoparts.com
SKU: 664563172
Availability: InStock
Rating: 4.8 (148 reviews)

Price:	US $ 100-200/Piece
Trade Terms:	FOB,CIF,EXW
Min Order:	10/Piece
Pay Type:	L/C,T/T,D/P,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

(20.00X22.5) Flotation Implement Wheel for Sugar Cane and Farm Trailer

Features:
TUV/DOT certificate approved
Standard: ETRTO/TRA/JATMA
08/275/221 10/335/281 A2/A3
Gurantte: 2 years
Complete wheel with tire assembly is available!
Packing: In pallets

Specification:

Rim Size	Stud Holes		PC Dia.	C.B	Offset/ET.	Thickness
Rim Size	No.	Dia.	PC Dia.	C.B	Offset/ET.	Rim	Disc
22.5x20.00	8	Φ27	Φ275	Φ221	0./-50	7	15.00
22.5x20.00	10	Φ27	Φ335	Φ281	-50	7	15.00

More Sizes:

Dia.	Rim Size	Fitted tyre
Dia.	Rim Size	Fitted tyre
15.3"	9.00X15.3	10.0/75-15.3 11.5/80-15.3 12.5/80-15.3
	9.00X15.3
	9.00X15.3
	9.00X15.3
	9.00X15.3
	9.00X15.3
	9.00X15.3
	9.00X15.3
15.5"	15.5x13.00	400/65-15.5
	15.5x13.00	400/65-15.5
	15.5x16.00	500/55-15.5
16"	W8x16	10.0/65-16
	W8x16	10.0/65-16
	11.00x16	13.0/55-16
	11.00x16	13.0/55-16
16.5"	16.5x8.25	10-16.5
	16.5x8.25	10-16.5
	16.5x9.75	12-16.5
	16.5x9.75	12-16.5
17"	16.00x17	19.0/45-17 500/50-17
	16.00x17
	16.00x17
	16.00x17
	16.00x17
	16.00x17
18"	9.00x18	10.5/80-18 12.5/80-18
	9.00x18	10.5/80-18 12.5/80-18
	11.00x18	12.5/80-18 13.0/65-18
	11.00x18	12.5/80-18 13.0/65-18
22.5"	22.5x8.25	11R22.5
	22.5x8.25	11R22.5
	22.5x9.00	12R22.5
	22.5x9.00
	22.5x9.00
	22.5x9.00
	22.5×11.75	385/65R22.5 385/55R22.5
	22.5×11.75
	22.5×11.75
	22.5×11.75
	22.5×11.75
	22.5×11.75
	22.5x13.00	415/45R22.5
	22.5x13.00	415/45R22.5
	22.5x13.00	415/45R22.5
	22.5×14.00	18R22.5 415/45R22.5 425/65R22.5 445/65R22.5 435/45R22.5
	22.5×14.00
	22.5×14.00
	22.5×14.00
	22.5×14.00
	22.5×14.00
	22.5×14.00
	22.5×14.00
	22.5×14.00
	22.5×14.00
	22.5×14.00
	22.5x16.00	500/45-22.5 500/60-22.5 550/60-22.5 600/50-22.5
	22.5x16.00
	22.5x16.00
	22.5x20.00
	22.5x20.00
	22.5x24.00	700/45-22.5
	22.5x24.00	700/45-22.5
26.5"	26.5x20.00	600/55-26.5
	26.5x20.00	600/55-26.5
	26.5x24.00	700/50-26.5 750/45-26.5 800/45-26.5
	26.5x24.00
	26.5x24.00
	26.5x28.00
	26.5x28.00

Wheel rim Ranges:

Prod Model:	20.00x22.5
Markets:	North America,South America,Southeast Asia,Africa,Oceania,Mid East
Color:	Silver
Material:	Steel
Type:	Rim
Wheel Hub Diameter:	21-24"
Certification:	DOT
Finishing:	Painting

Oasisland International is one of the fast-growing tyre and wheel rim supplier in China specializing in the agricultural, trailer, construction, material handling, industrial, mining and other specials

All products we supply will be with quality and guarantee...

For the tyres we supply will be with certificates, such as CCC, DOT, ECE, GCC, SONCAP for different market.

For the Wheels, it will be engineering standards of the TRA and the ETRTO, as well as the testing standards established by SAE and EUWA. Further more, for some special market, our wheels will manufacture according to the local standard, such as Australia. That will guarantee all wheels can suit for different request of different markets.

Now we already provide some products to OEM client in some markets. We do sure our OEM market will be larger after testing our quality products. However we are small now, we will grow to be larger and stronger soon basic on our clients' support.
