(16.00X17) Agricultural Implement Wheel for Farm Trailer

Name: (16.00X17) Agricultural Implement Wheel for Farm Trailer
Brand: ibuyautoparts.com
SKU: 778470095
Availability: InStock
Rating: 4.5 (103 reviews)

Price:	Negotiable/Piece
Trade Terms:	FOB,CIF,EXW
Min Order:	50/Piece
Pay Type:	L/C,T/T

Contact Supplier

Showroom Product Company Profile

Prod Model:	16.00X17
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Color:	Silver / Yellow / White
Material:	Steel
Type:	Rim
Wheel Hub Diameter:	16-20"
Certification:	DOT
Drive Wheel:	Trailer
Finishing:	Painting
Wheel Hub Brand:	Oasisland

Product Description

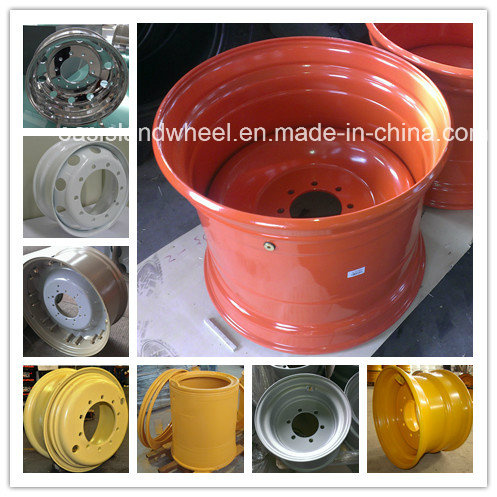

(16.00X17) Agricultural Implement Wheel for Farm Trailer

Specification:

TUV/DOT certificate approved
Standard: ETRTO/TRA/JATMA

Specification: 06/205/161
08/275/221
10/335/281 A2/A3
Gurantte: 2 years
Complete wheel with tire assembly is available!
Packing: In pallets

Advantage:

1.Full range of agricultural wheel rim apply to ETRTO/TRA from 12" to 54"
2.Optimizd 45°-rim flange shape
3.Optimized rim profile stiffness for fast driving vehicles
4.offer rims with flange reinforcement straight from the factory
5. Humps designed to prevent the bead of the tire dropping into the wheel well during sudden deflation
6.Kurling on 6° and 15° rim to counteract the tendency for the tire to slip on the rim

Implement Wheel Ranges:

Inch	Description	Wheels	Tyres
15.5"	one-piece 15° DC	15.5X13.00	400/60-15.5
15.5"	one-piece 15° DC	15.5X16.00	500/55-15.5
16.5"	one-piece 15° DC	16.5X8.25	9.50R16.5 10-16.5
		16.5X9.75	12-16.5EM 33X12.50R16.5
		16.5X12	36x14.5-16.5
17.5"	one-piece 15° DC	17.5X6.00HC	215/75R17.5 8R17.5
		17.5X6.75HC	9R17.5 9.5R17.5
		17.5X10.5
19.5"	one-piece 15° DC	19.5X11.75	15R19.5
		19.5X6.00	8R19.5
		19.5X6.75	8R19.5 245/70R19.5 235/75R19.5
		19.5X7.50	10R19.5 265/70R19.5
		19.5X8.25	285/70R19.5
		19.5X13.00	15.0X19.5
		19.5X14.00	425/55R19.5 435/50R19.5 445/45R19.5 18-19.5 MPT
22.5"	one-piece 15° DC	22.5X5.5
		22.5X6.00	8.5R22.5
		22.5X6.75	9R22.5
		22.5X7.50	10R22.5
		22.5X8.25	11R22.5
		22.5X9.00	12R22.5 315/80R22.5
		22.5X9.75	315/80R22.5
		22.5X11.25	1522.5 15R22.5 16.5/70R22.5 350/60R22.5 365/70R22.5 400/55R22.5 375/90R22.5 385/65R22.5 385/55R22.5 425R22.5
		22.5X12.25	425/65R22.5
		22.5X13.00	16.5R22.5 16.5/70R22.5 400/55R22.5 425/65R22.5
		22.5X13.5	15-22.5 16.5-22.5
		22.5X14.00	18R22.5 415/45R22.5 425/65R22.5 435/45R55.5 445/75R22.5
		22.5X16.00	22.5-25.5 500/45-22.5 500/60R22.5 550/45-22.5 550/60-22.5
		22.5X20.00	600/50-22.5, 600/55-22.5 650-50-22.5
		22.5X24.00	700/40-22.5 750/45-22.5
24.5"	one-piece 15° DC	24.5X8.25	11R24.5
		24.5X11.75	385/55R24.5 385/55R24.5
		24.5X13.00	16.5R24.5 425/65R24.5
		24.5X15.00
26.5"	one-piece 15° DC	26.5X20.00	600/55-26.5
26.5"	one-piece 15° DC	26.5X24.00	700/50-26.5 750/45-26.5

Oasisland International is one of the fast-growing tyre and wheel rim supplier in China specializing in the agricultural, trailer, construction, material handling, industrial, mining and other specials

All products we supply will be with quality and guarantee...

For the tyres we supply will be with certificates, such as CCC, DOT, ECE, GCC, SONCAP for different market.

For the Wheels, it will be engineering standards of the TRA and the ETRTO, as well as the testing standards established by SAE and EUWA. Further more, for some special market, our wheels will manufacture according to the local standard, such as Australia. That will guarantee all wheels can suit for different request of different markets.

Now we already provide some products to OEM client in some markets. We do sure our OEM market will be larger after testing our quality products. However we are small now, we will grow to be larger and stronger soon basic on our clients' support.
