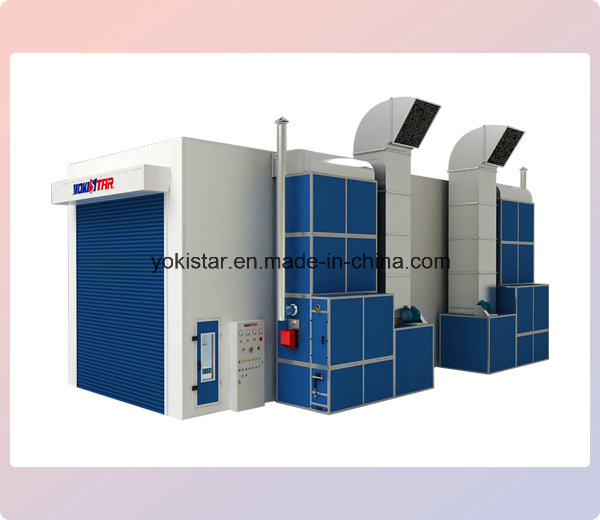

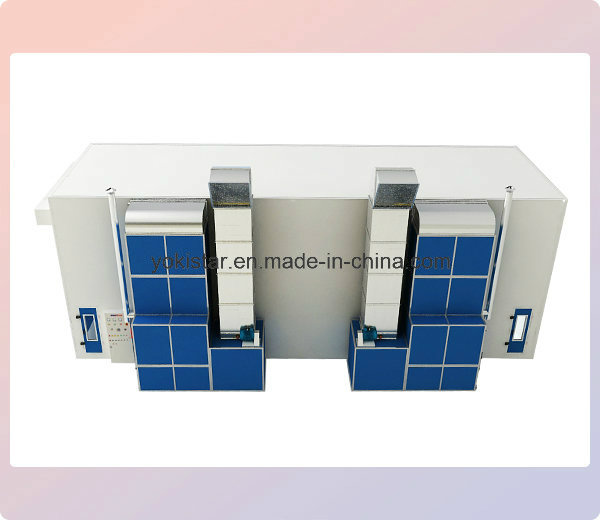

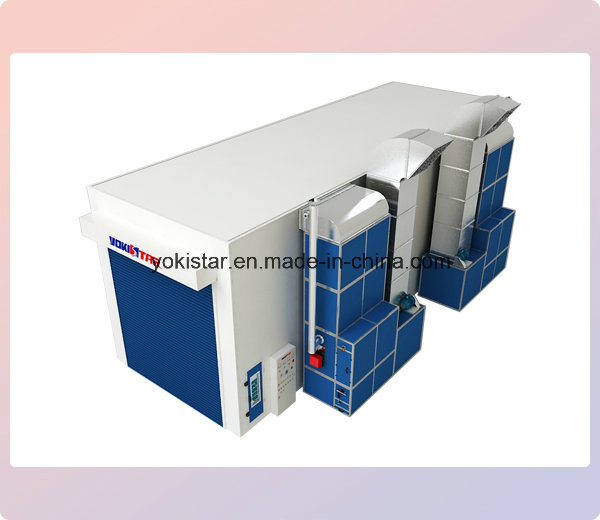

Yokistar Spray Paint Booth for Truck and Bus

Yokistar Spray Paint Booth for Truck and Bus
Price: Negotiable/Set
Trade Terms: FOB,CFR,CIF
Min Order: 1/Set
Pay Type: L/C,T/T
Prod Model: YS-TB15
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Heating: Riello Diesel Burner
Voltage: 1X220V,3X380V,Your Special Voltages Are Accepted
Optional Color: White, Blue, Orange and Red
Port: Huangpu Port or by Your Order
Main Products: Spray Booth, Prep Station, Infrared Curing Lamps
Certification: ISO9001-2008
Heating Mode: Diesel
Paint Mist Treatment: Dry-type
Condition: New
Type: Paint Booth
Substrate: Steel & Aluminum
Brand: Yokistar
Coating: Painting & Powder Coating
Airflow Direction: Downdraft Airflow Way

Product Description

Model: YS-TB15
Inside dimention: 15,000x5,000x5,000mm(LxWxH).
Any Size Requirements Can Be Met.
Applied for large truck spraying

A. During painting, spray booth can offer a sealed environment with cleanness, safety and excellent lighting for the painting operation of all kind of components and different products.
B. During baking, drying time, temperature and humidity in spray booth can be set according to different paint materials to achieve a perfect high-quality spraying and baking for your cars.
C. Spray booth makes spraying and baking operation with no limits of all kinds of whether, thus ensuring physical fitness of operators and absolute safety of equipments.

Warranty
The goods are guaranteed for 12 months from the date of receipt, but the filters and lamps are not guaranteed. It cannot be applied for damages caused by negligence of operations or mishandling of the machine.

YOKISTAR Products
High quality and advanced technology are applied in YOKISTAR product ranges, involving automotive spray booth, bus and truck spray booth, prep station, mixing room, bench spray booth, open face spray booth and infrared curing lamp.






  Inside dimension15,000x5,000x5,000mm(LxWxH)
  Outside dimension15,144x6,896x5,600mm(LxWxH)
Pit2 rows of pits in the ground for exhaust air, dimension of each pit is 2 1000 × 760mm (L × W), with galvanized grilles made by twisted steel and flat bar above.
Main doorFolding door, 4-folds, 4000× 4500mm(W× H), galvanized steel frame, with polystyrene(EPS) inside, colour: blue.
Escape door2 units, 800 × 2000 mm (WXH), colour: white.
Room bodyProfiled bar beams in the roof to strengthen the room body; wall panel thickness: 70mm, width: 1150mm, tongue and groove structure, 0.476mm colour steel with polystyrene(EPS) insulation inside, colour: white.
Lighting systemCeiling Lights: 30Units× 4Pcs=120Pcs× 36W, with electronic ballasts. Side Lights: 36Units× 4Pcs=144Pcs× 36W, with electronic ballasts, vertically set, up and down interleaving installation.
Generator settingIntake air from side upper direction, exhaust air from back upper direction, quadrate steel frame, outside is white coated steel  , inside is galvanized steel  , filled with heat preservation material in the middle
Intake and exhaust air system(3 units)2 × 7.5KW double-intake centrifugal fans for intake air, model YDW4.5M, air capacity is 84,000m3/h.;
1× 11KW double-intake centrifugal fans for exhaust air, with motor outside, belt-drive, model TAE-710H, air capacity is 72000m3/h. Equip manual dampers for exhaust air.
Heating system1 unit RIELLO RG5S oil burner, heating productivity: 260,000Kcal/h., stainless steel heat exchanger, 3pcs pneumatic dampers actuate from spraying to baking cycle.
Filtering systemPre-filter, high efficiency filter(ceiling filter), exhaust fiberglass fiter, activated carbon filter.
Roof Plates50mm thick EPS heat insulation panels.
Control bo xSpraying, heat spraying, baking, baking, time setting, lighting switch, failure indicator, thermostat, power supply switch, emergency stop, ampere meter, voltmeter, hours meter, temperature limit controller, pressure gauge. Exhaust star-delta motor start...
Guangzhou YOKISTAR Co., Ltd. (YOKI STAR for short) is specialized in spray booths, infrared lamps, prep stations, equipments for industrial painting, high temperature drying which can supply design as well as manufacturing service.

Located in BaiYun district of GuangZhou city, YOKI STAR occupies 25000 square meters area, owns around 200 employees which is convenient to the new Baiyun airport (20 minutes by car) and the railway station (30 minutes).

As a professional designer and manufacturer with target in 'To be the best, but not to be the biggest', YOKI star succeeds to international advanced design standards and manufacturing technologies, follows international quality management and control system, produces first-class professional products of the world and shares with friends all over the world.

The products of YOKISTAR can be used widely for automobile maintenance, vehicles manufacturing, machinery manufacturing as well as trains, planes and furniture. Our products are popular in European Union, North America, South America, Middle East, East and South Asia, Africa, and have established completely sales system all around the world. YOKISTAR aims to be the spraying and baking equipments manufacturer with leading brand in the world, and to become modernized enterprise with international competitive advantage.

YOKISTAR is an ideal cooperator who deserves your reliance.
