Product details
**Custom Design is the key point of YOKISTAR super advantage;professional technical team and passionate sales are always ready for you.
**2 years warranty of the products expect consumable parts(lamp,filter..etc)

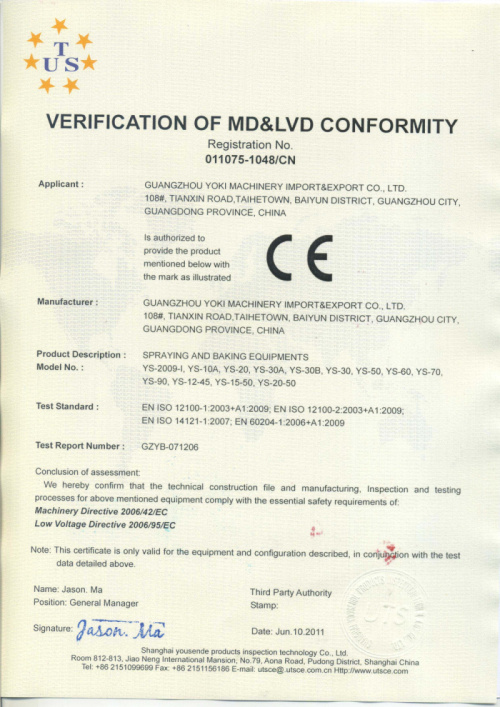

**CE certificate approval.

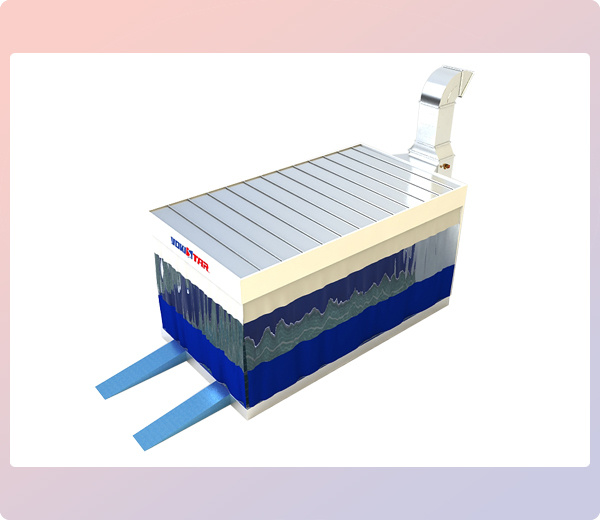

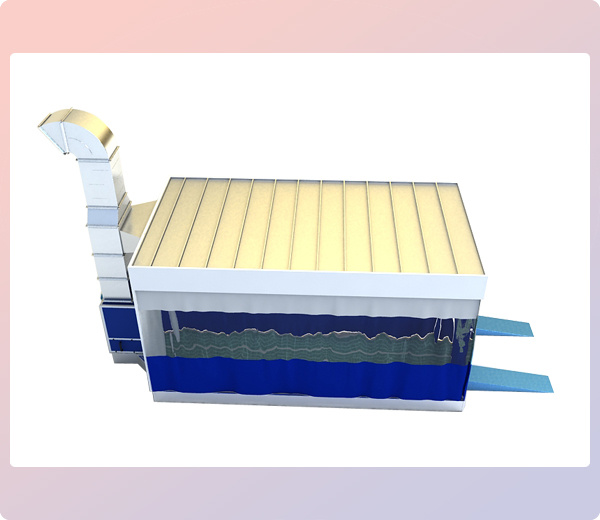

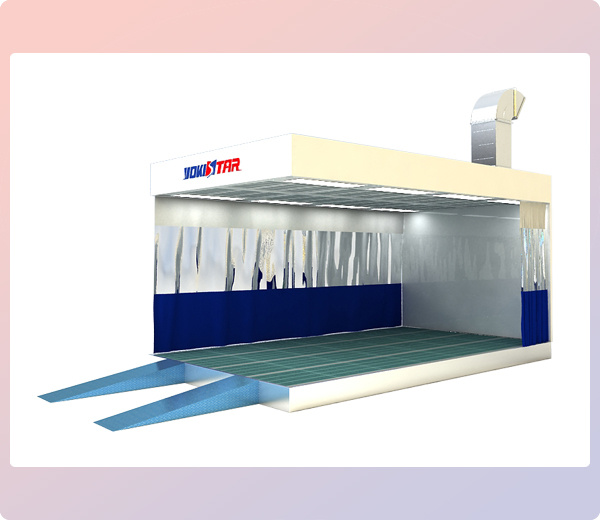

Introdcution of the prep station
A.Prep stations make it possible for users to prep and perform minor paint work in one area without moving the vehicle
B.Prep stations speed up the drying process and improve the overall quality of your finished product.
C.Two airflow choice, above ground exhaust box and pit style downdraft, allow easy integration into new or existing body shop layouts.
D.Optional heat units are available for high production needs.

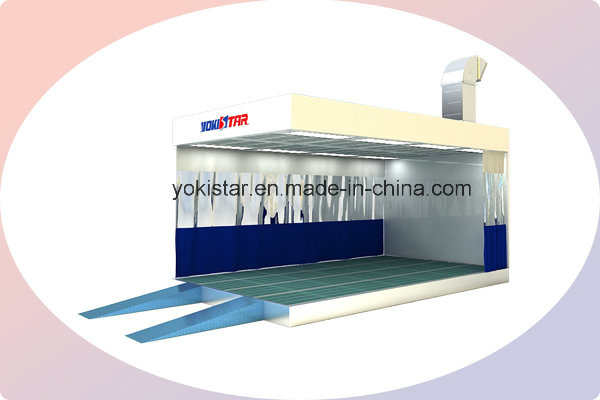

Specification for Prep Station YS-PRP-B
| Air draft way |
| by basement. |
| Full grilles made of 30x4mm flat bar and 10mm trwisted steel, with surface galvanised treatment, |
| loading weight is 600KG/wheel. |
| 2 ramps made of indented plate, each size is 2,000x520mm(LxW). |
|
| Cabin |
| Inside Size |
|
| 6,300x3,450x2,700mm(LxWxH). |
| Outside Size |
|
| 7,550x3,550x3,100mm(LxWxH). |
| 4 sides configuration |
|
| Rear wall: made of 1.0mm thick galvanised steel, painted with white powder. |
| Front,Left and Right: PVC curtain, thick is 0.5mm. |
| Roof Panel |
|
| Made of 0.6mm thick bended galvanised plate. |
| Ceiling Light |
|
| Left and right upper position have 4 lighting fixtures, total 8 fixtures. Each fixture is equipped with |
| 4 PHILLIP fluorescent tubes of 36 Watt with two in one electronic ballast. |
| Plenum |
|
| 400mm high, all spare parts of plenum are made of galvanised bended steel and treated by white |
| powder for long using life. |
| Ceiling Filter |
|
| Supporting net is made of C shape steel with surface oil painted treatment, |
| Sub-high efficiency filter,F5 Grade(EN779),type is SP-600G. |
|
|

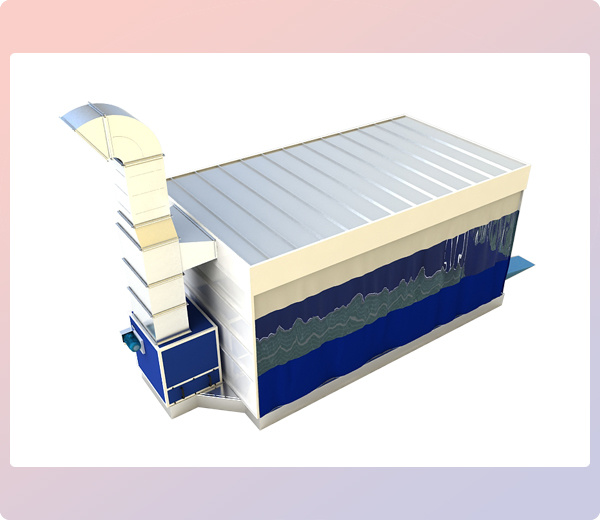

| Makeup Air Units |
| Cabinet Size |
|
| 1,300x1,100x1,300mm(LxWxH). |
| Cabinet |
|
| Made of 50x50mm galvanised square tube, three way connector made of alluminium alloy. |
| Filtering |
|
| Fibre glass filter, G3 Grade(EN779),type is PA-50 . |
| 'M' shape filter frame with pre-filter,G3 Grade(EN779),type is C16-300. |

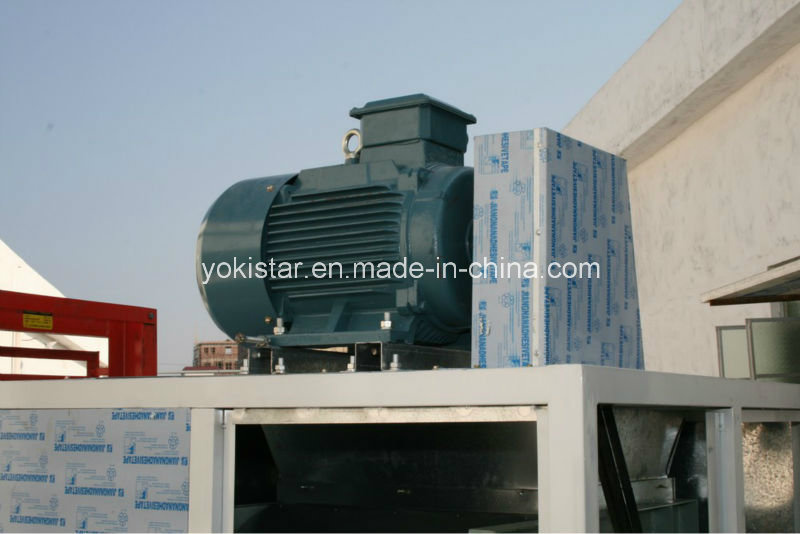

| Motor and Fan |
|
| Motor type: belt drive, belt pulley with European style taper sleeve; qty.:1pc. |
| Single motor power:4KW, total power:4KW. |
| Fan type: double intake centrifual fan, TAE-450-H, total air capacity: 15,000m3/h. |
| Makeup Air Control |
|
| by Belimo NMU230 10N actuator to control fresh air quantity. |
| Exhaust Air |
|
| Equipped with 4M straight duct, 1pc 90° elbow duct and 1pc 30° elbow duct. |
|
|
| Control System |
| Power Indicator,Fan Running Indicator,Air Controller,Fan Switch,Light Switch,Emergency Stop. |
OVERVIEW
A. YOKISTAR Prep Stations are designed for the preparation of vehicles without moving. Many tasks, including sanding, priming, painting and sealing, all can be completed in the same area by YOKISTAR Prep Stations.
B. Multiple length, width and height options are available in YOKISTAR Prep Stations to accommodate various custom requirements.
C. Your every specific finishing requirement, including filtration, lighting, temperature and air flow, will be taken into consideration in YOKISTAR Prep Stations.
INTAKE AND EXHAUST SYSTEM FEATURES
5.2KW exhausting belt-drive type motor centrifugal fan is applied in YOKISTAR Prep Stations, providing a quiet and highly productive working environment.
LIGHTING FEATURES
Ample lighting can be reached by PHILIPS fluorescent tubes in the roof or the walls of YOKISTAR Prep Stations behind tempered safety glass, and have optional external access for easy maintenance.
Lighting box is made by powder coated color steel, with electric ballast.
Optional
- Cupboards in the rear of YOKISTAR Prep Stations to store painting materials and equipments
- Roll-Up Curtains(motorized controls/manual operation)
Other features
- Overspray and dust control by 95% filter efficiency
- PHILIPS lamps, BELIMO damper and RIELLO burner
- Main electric components are CE listed
- All hardware, fasteners, sealants
- 24 months warranty
- Delivery time of standard prep station can reach 10 business days
- Bubble film packaging for sea transportation in bulk, special steel tray packages are accepted
Warranty
The goods are guaranteed for 24 months from the date of receipt, but the filters and lamps are not guaranteed. It cannot be applied for damages caused by negligence of operations or mishandling of the machine.
Spray Booth Conveying and Storage
As spray booths are in big size, they're conveyed in bulk while loading and unloading. The parts in frame should be loaded and unloaded by fork vehicles while the small parts are conveyed by manpower. Be noticed to make sure that the parts are not damaged and dilapidated in the loading and unloading process.
The finished parts of spray booth are usually stored in the finished products warehouse, and marked on the outside packages for checking before delivery. After being sent to the destination, all the parts should not be put in the open air but in store house to prevent from rusting and oxidized by the moisture.
YOKISTAR Products
High quality and advanced technology are applied in YOKISTAR product ranges, involving automotive spray booth, bus and truck spray booth, prep station, mixing room, bench spray booth, open face spray booth and infrared curing lamp.
