Yokistar Truck Bus Spray Paint Booth Powder Coating
| Price: |
US $ 28780-29190/Set |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
1/Set |
| Pay Type: |
L/C,T/T |

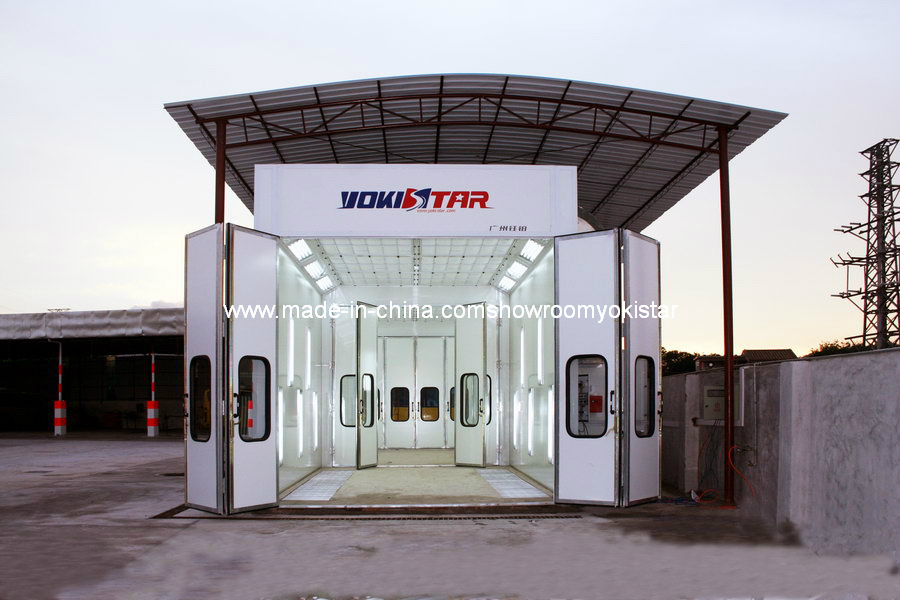

Product details:**Model:YS-TB15
**Inside dimention: 15000*5000*5000mm (L*W*H)
**It fits for large cars /bus/ truck spraying and painting,which indicates also suitable for truck shop and end-user.
**Custom paint booth is the key point for YOKSTAR,professional technical team and passionate sales are always ready for you.

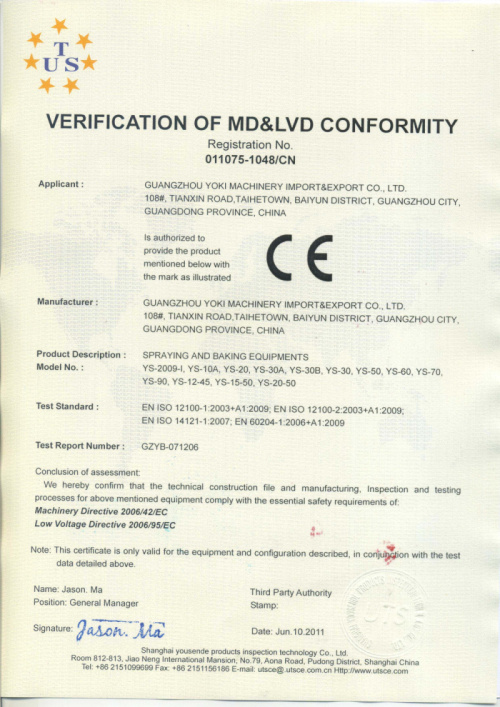

**CE certificate approval.
A. During painting, spray booth can offer a sealed environment with cleanness, safety and excellent lighting for the painting operation of all kind of components and different products.
B. During baking, drying time, temperature and humidity in spray booth can be set according to different paint materials to achieve a perfect high-quality spraying and baking for your cars.
C. Spray booth makes spraying and baking operation with no limits of all kinds of whether, thus ensuring physical fitness of operators and absolute safety of equipments.

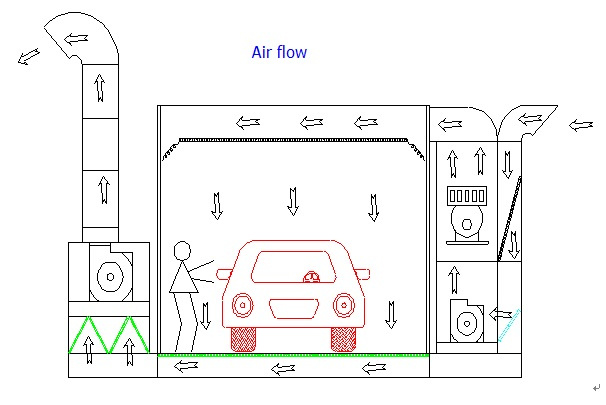

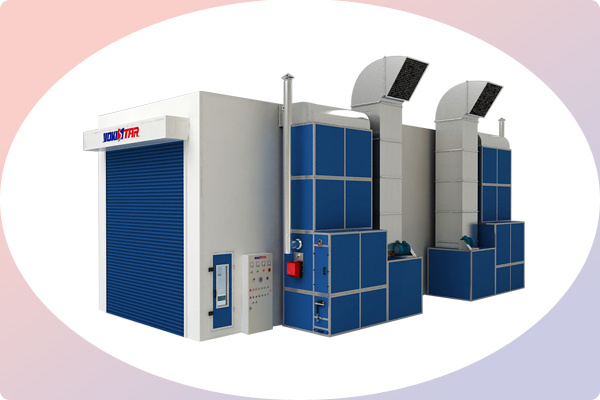

**General Description Spray booth comes out as it is seasoned with spraying for whole surface of modern automobiles, part repair and baking which can provide operation room of cleanness, sanitation for above tasks. The whole set equipment has the function of ventilation, air purge, drying, disposing exhaust gas and so on which meets basic requests of auto surface disposal. The equipment is made up of room body, lighting unit, intake and exhaust air system, heating system, air purge system, exhaust gas disposal system and control system.The air flow: Fresh air →pre-filter →intake air fan→ heating generator →plenum →ceiling filter →working area of the spray booth →the first exhaust air filter →the second exhaust air filter →exhaust air fan →exhaust air duct →atmosphere See the normal spraying principle figure for details:
** Maintenance rules Spray booth is a kind of special equipment which includes machinery, electrical parts, filter materials, airproof parts and many other parts. So in the daily using please pay more attention of the repair and maintenance. There are several aspects as below: 1, Maintenance of filter systemThe filter system is an important part of spray booth, usually it includes prep-filter, ceiling filter and fiberglass filter. - Prep-filter is a used for filtering fresh air, normally it should be replaced after 100 working hours.
- Ceiling filter is used for second-filter of air, normally it should be replaced every 400 working hours.
- Fibreglass filter is used to collect solvent fumes of exhaust air. There're 2 fiberglass filter of the booth. Generally it should be replaced every 80-120 working hours.
2, Maintenance of airproof parts In order to make sure the airproof capacity of the booth, airproof parts are needed a lot. As the air produced by working booth is caustic, and airproof parts are often made of rubber materials which are easily suffered, so timely renewing the airproof parts are indeed to ensure a high quality. 3,Maintenance of electrical parts As "brain" of the booth, control system directly conducts all kinds of operation for the booth. So it is extremely important to keep a good stableness of all electrical parts. During operating time, periodic checking of all electric parts is recommended in order to ensure correct and precise operation. 4,Maintenance of gearing partsGearing parts are mainly composed of straps between motors and fans. As they're used frequently, straps would become loose and worn after a period of enlistment. So adjust the belts according to working condition and replace them if necessary, so the working effect of fans can reach the best. Furthermore, there are oil-holes at the two ends of the axletrees of fans, periodically lubricate the above oil-holes to keep a smoothly running. 5,Maintenance of other partsSo as to ensure the performance of spray booth, daily maintenances of other parts are also needed. It mainly includes cleaning the booth, checking tight-and-loose of connections, checking the working environments outside and so on, all which have been done well to prevent from unseen accidents. NOTICE: The maintenance work should be done by the person specially assigned for a job,and the following should be done in the maintenance process:
a. Any sundries can NOT be put in the booth.
b. Close the power supply of the booth, and set warning sign at the main power supply.
c. All the replaced filters should be disposed in a special way, they can not be disposed as the normal garbage.**Spray Booth Conveying and Storage As spray booths are in big size, they're conveyed in bulk while loading and unloading. The parts in frame should be loaded and unloaded by fork vehicles while the small parts are conveyed by manpower. Be noticed to make sure that the parts are not damaged and dilapidated in the loading and unloading process.The finished parts of spray booth are usually stored in the finished products warehouse, and marked on the outside packages for checking before delivery. After being sent to the destination, all the parts should not be put in the open air but in store house to prevent from rusting and oxidized by the moisture.WarrantyThe goods are guaranteed for 24 months from the date of receipt, but the filters and lamps are not guaranteed. It cannot be applied for damages caused by negligence of operations or mishandling of the machine.YOKISTAR ProductsHigh quality and advanced technology are applied in YOKISTAR product ranges, involving automotive spray booth, bus and truck spray booth, prep station, mixing room, bench spray booth, open face spray booth and infrared curing lamp.Custom Design paint booth is our super advantage.Specification list of truck spray booth YS-TB15

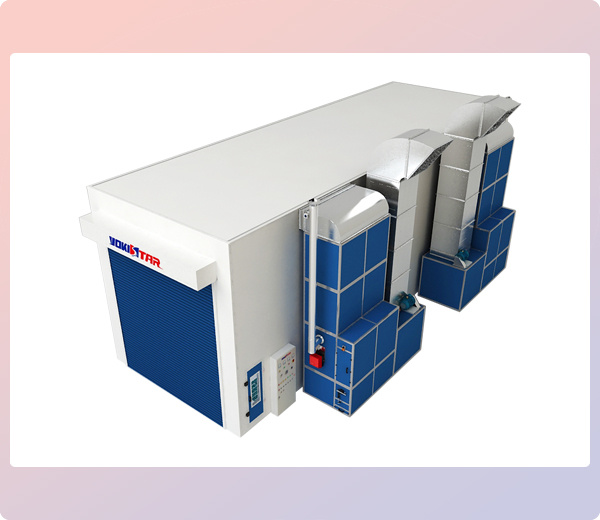

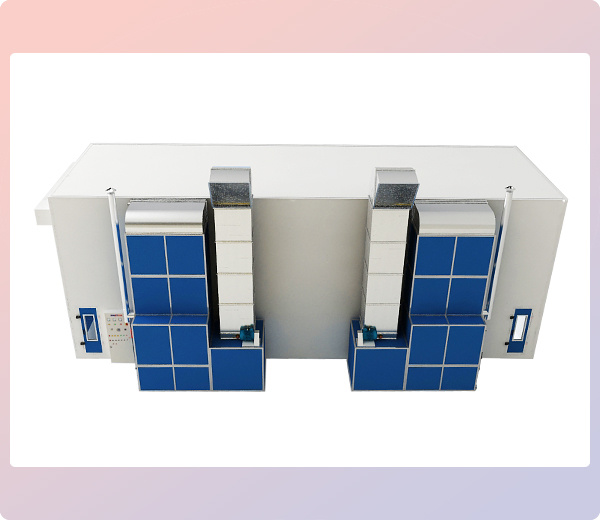

| Inside dimension | 15000 × 5000 × 5000 mm ( L × W × H ) |
| Outside dimension | 15144 × 6896 × 5600 mm ( L × W × H ) |
| Pit | 2 rows of pits in the ground for exhaust air, dimension of each pit is 13850 × 760mm (L × W), with galvanized grilles made by twisted steel and flat bar above. |
| Main door | Folding door, 4-folds, 4000× 4500mm(W× H), galvanized steel frame, with polystyrene(EPS) inside, colour: blue. |
| Escape door | 2 units, , 800 × 2000 mm (WXH), colour: white. |
| Room body | Profiled bar beams in the roof to strengthen the room body; wall panel thickness: 70mm, width: 1150mm, tongue and groove structure, 0.476mm colour steel with polystyrene(EPS) insulation inside, colour: white. |
| Lighting system | Ceiling Lights: 18Units× 4Pcs=72Pcs× 36W, with electronic ballasts. Side Lights: 22Units× 4Pcs=88Pcs× 36W, with electronic ballasts, vertically set, up and down interleaving installation. |
| Generator setting | Intake air from side upper direction, exhaust air from back upper direction, quadrate steel frame, outside is white coated steel, inside is galvanized steel , filled with heat preservation material in the middle. |
| Intake and exhaust air system(2 units) | 2 units, in total 4 × 7.5KW double-intake centrifugal fans for intake air, model YDW4.5M, air capacity is 21000m 3 /h for each fan; |
| 2× 11KW double-intake centrifugal fans for exhaust air, with motor outside, belt-drive, model TAE-710H, air capacity is 36000m3/h for each fan. Equip manual dampers for exhaust air. |
| Heating system(2 units) | 2 units RIELLO RG5S oil burners, heating productivity: 520000 Kcal/h, stainless steel heat exchanger, 2pcs pneumatic dampers actuate from spraying to baking cycle. |
| Filtering system | re-filter, high efficiency filter(ceiling filter), exhaust fiberglass fiter, activated carbon filter. |
| Roof Plates | 50mm thick EPS heat preservation panels. |
| Control box | Spraying, heat spraying, baking, baking, time setting, lighting switch, failure indicator, thermostat, power supply switch, emergency stop, ampere meter, voltmeter, hours meter, temperature limit controller, pressure gauge. Exhaust star-delta motor start. |
